DGF.4.16.1600.02.00 AN2P
Inserts
Part number DGF41616000200AN2P

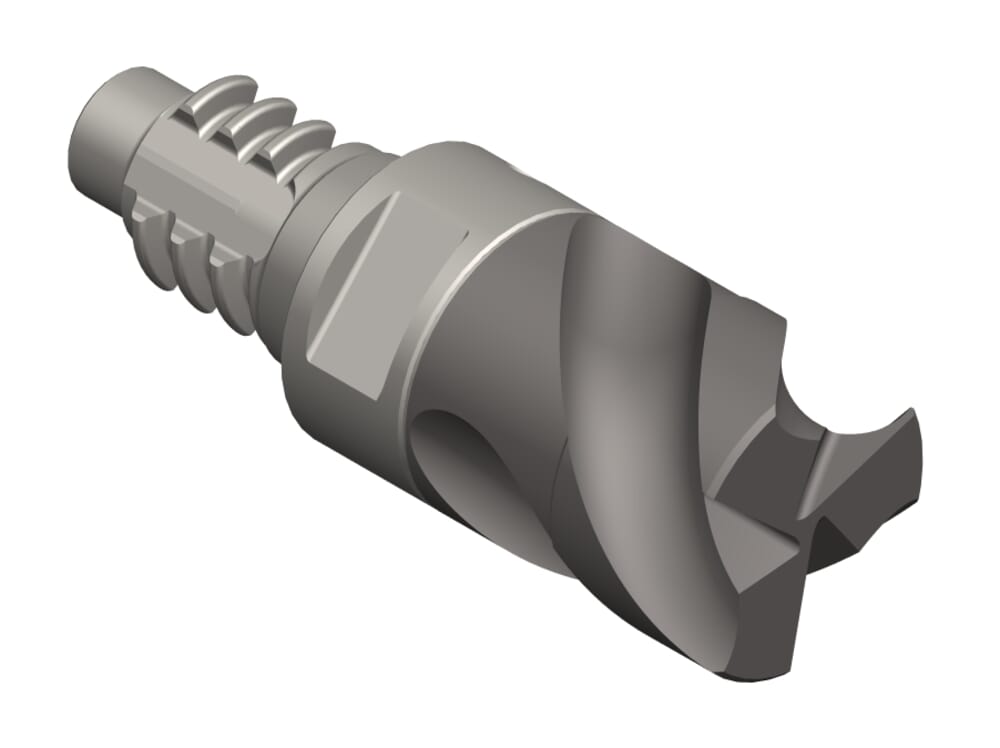

HORN Inserts DGF.4.16.1600.02.00 AN2P for Milling
Please note:Technical instructions
Corner bevel (45 ° x b) (b)
0.2
Tool length from stop, flange (l3)
24.8
mm
Effective cutting length (l2)
8.5
mm
Key range (SW)
13
mm
Neck diameter (d3)
15.6
mm
Katalog_SSC
DG0161
DIN_SSC
HORN-DG01610N
ISO_SSC
HORNDG01618$0N$$$$$
eclass-shortcut
21-18-06-90
System (System)
DG16
Number of teeth (Z)
4
St.
Cutting diameter (d1)
16
mm
| Downloads | |
|---|---|
| DGF41616000200_20210630_102250370.STP | Download |
| DGF41616000200_20210707_041650946.DXF | Download |
| Download all files | |
