DGFF.4.10.45.00 AN2P
Inserts
Part number DGFF4104500AN2P

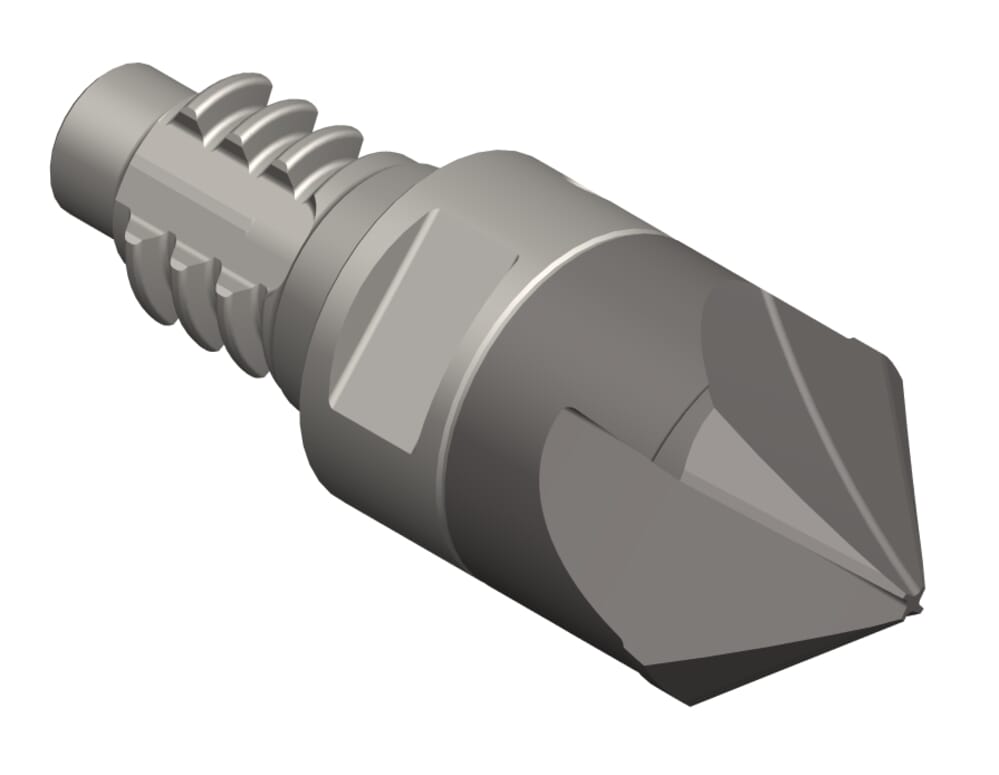

HORN Inserts DGFF.4.10.45.00 AN2P for Milling
Please note:Technical instructions

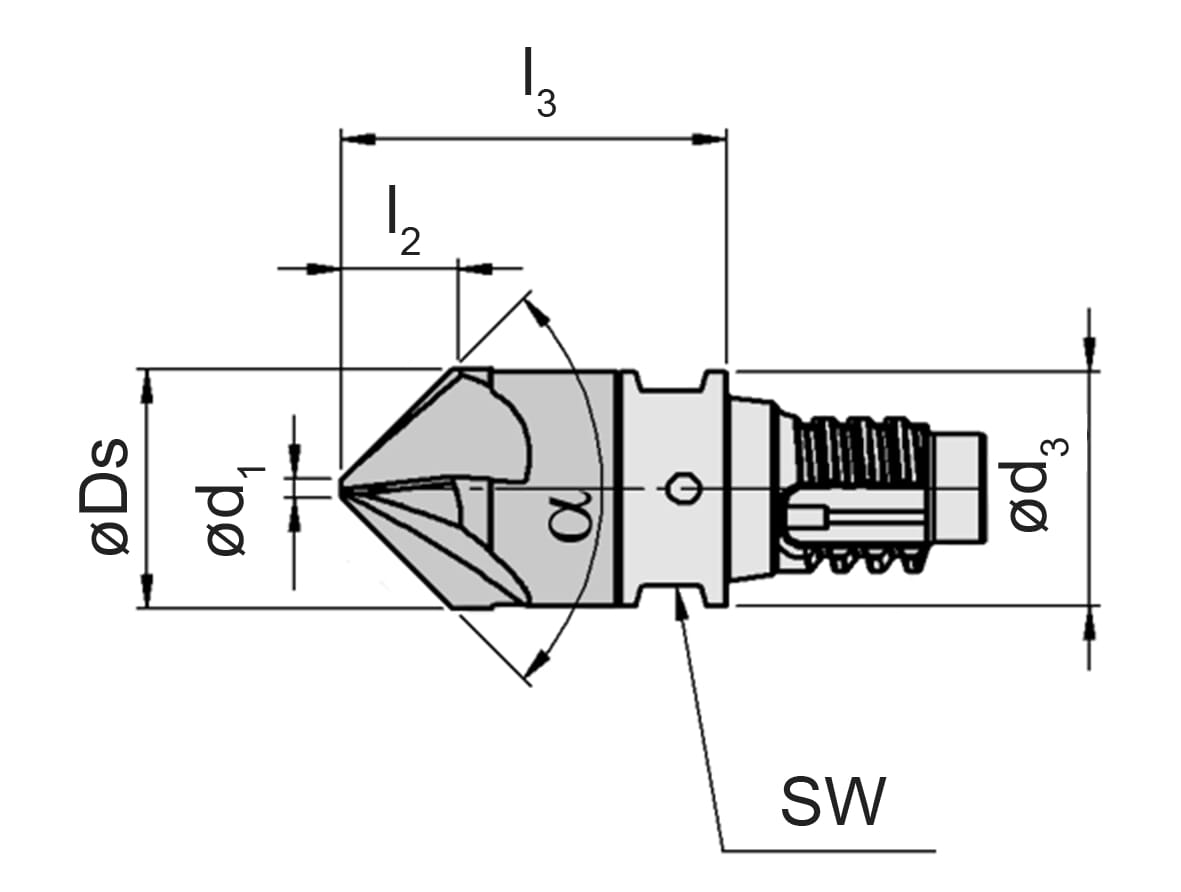

Diameter (d1)
1
mm
Tool length from stop, flange (l3)
16.8
mm
Effective cutting length (l2)
4.5
mm
Key range (SW)
8
mm
Neck diameter (d3)
9.8
mm
Katalog_SSC
DG0101
DIN_SSC
HORN-DG01010N
ISO_SSC
HORNDG01018$0N$$$$$
eclass-shortcut
21-18-06-90
System (System)
DG10
Number of teeth (Z)
4
St.
Cutting diameter (Ds)
10
mm
| Downloads | |
|---|---|
| DGFF4104500_20230112_204322705.STP | Download |
| DGFF4104500_20210629_125919872.DXF | Download |
| Download all files | |
