DGM.7.12.1200.02.0 AN2P
Inserts
Part number DGM7121200020AN2P

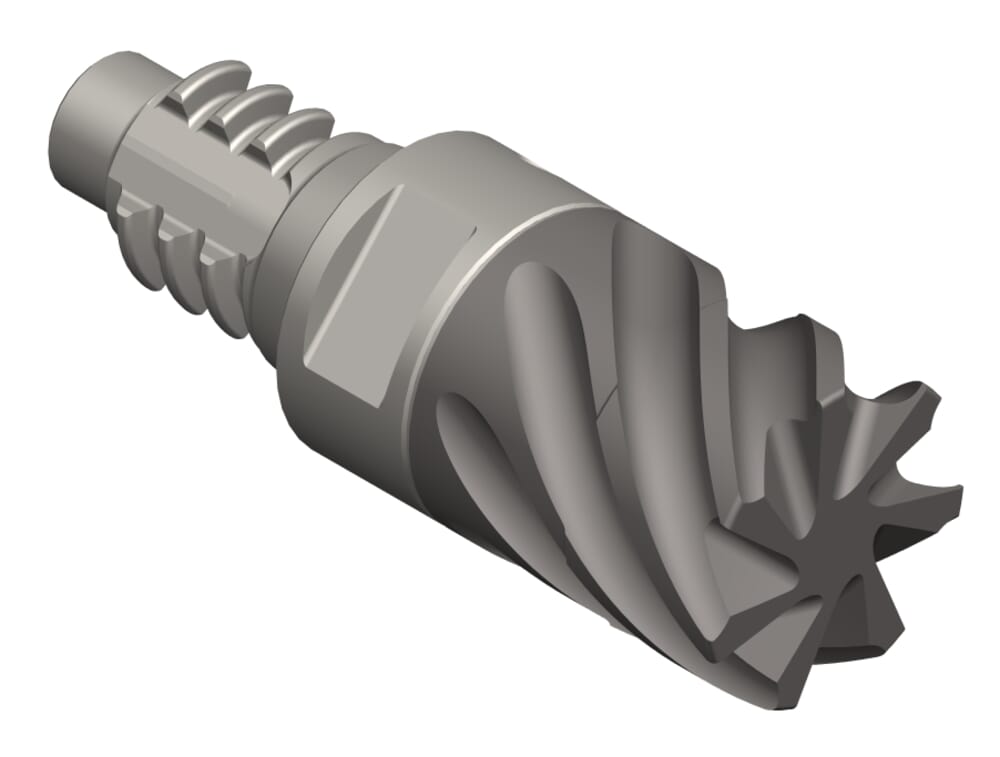

HORN Inserts DGM.7.12.1200.02.0 AN2P for Milling
Please note:Technical instructions

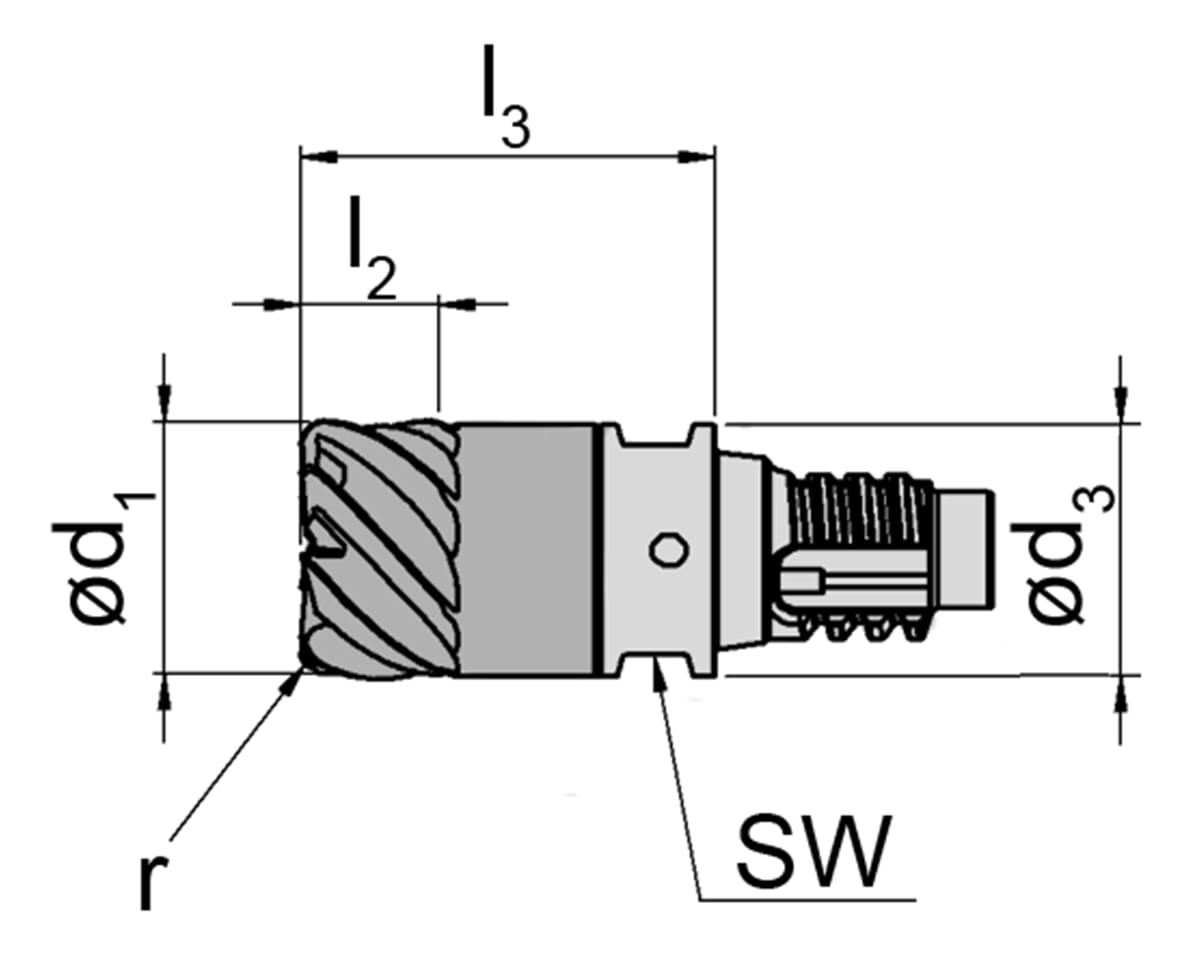

Tool length from stop, flange (l3)
19.3
mm
Effective cutting length (l2)
6.5
mm
Corner radius (r)
0.2
mm
Key range (SW)
10
mm
Neck diameter (d3)
11.7
mm
Katalog_SSC
DG0121
DIN_SSC
HORN-DG01210N
ISO_SSC
HORNDG01218$0N$$$$$
eclass-shortcut
21-18-06-90
System (System)
DG12
Number of teeth (Z)
7
St.
Cutting diameter (d1)
12
mm
| Downloads | |
|---|---|
| DGM7121200020_20240116_232537707.STP | Download |
| DGM712120002.DXF | Download |
| Download all files | |
