DGM.7.12.1200.10.0 AN2P
Inserts
Part number DGM7121200100AN2P

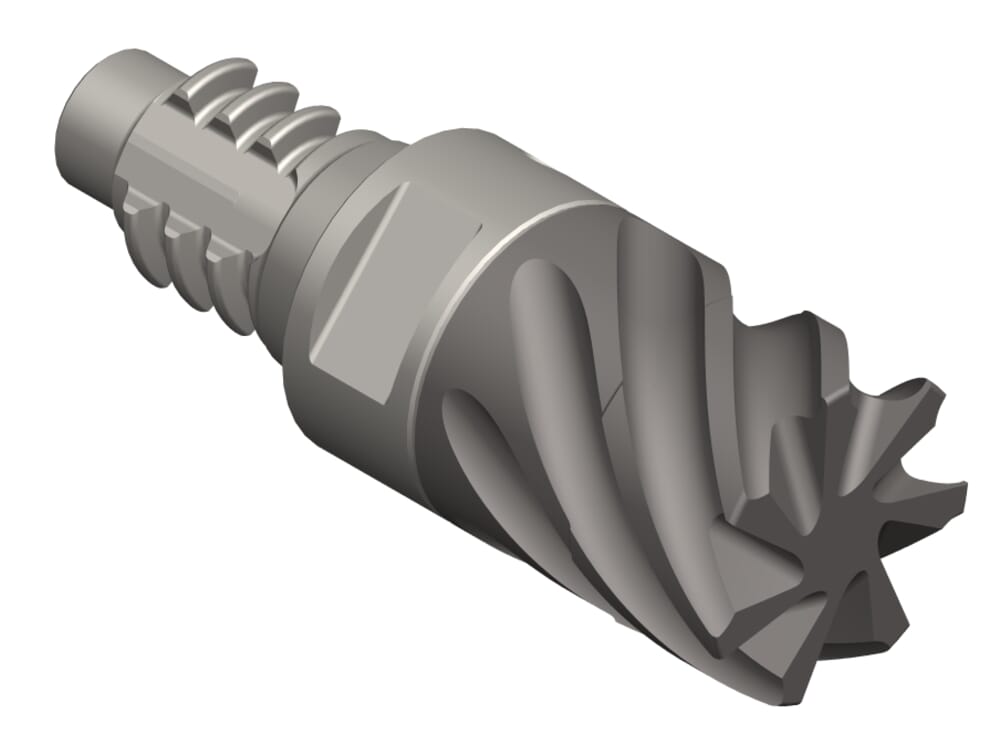

HORN Inserts DGM.7.12.1200.10.0 AN2P for Milling
Please note:Technical instructions
Tool length from stop, flange (l3)
19.3
mm
Effective cutting length (l2)
6.5
mm
Corner radius (r)
1
mm
Key range (SW)
10
mm
Neck diameter (d3)
11.7
mm
Katalog_SSC
DG0121
DIN_SSC
HORN-DG01210N
ISO_SSC
HORNDG01218$0N$$$$$
eclass-shortcut
21-18-06-90
System (System)
DG12
Number of teeth (Z)
7
St.
Cutting diameter (d1)
12
mm
