DGM.9.16.1600.02.0 AN2P
Inserts
Part number DGM9161600020AN2P

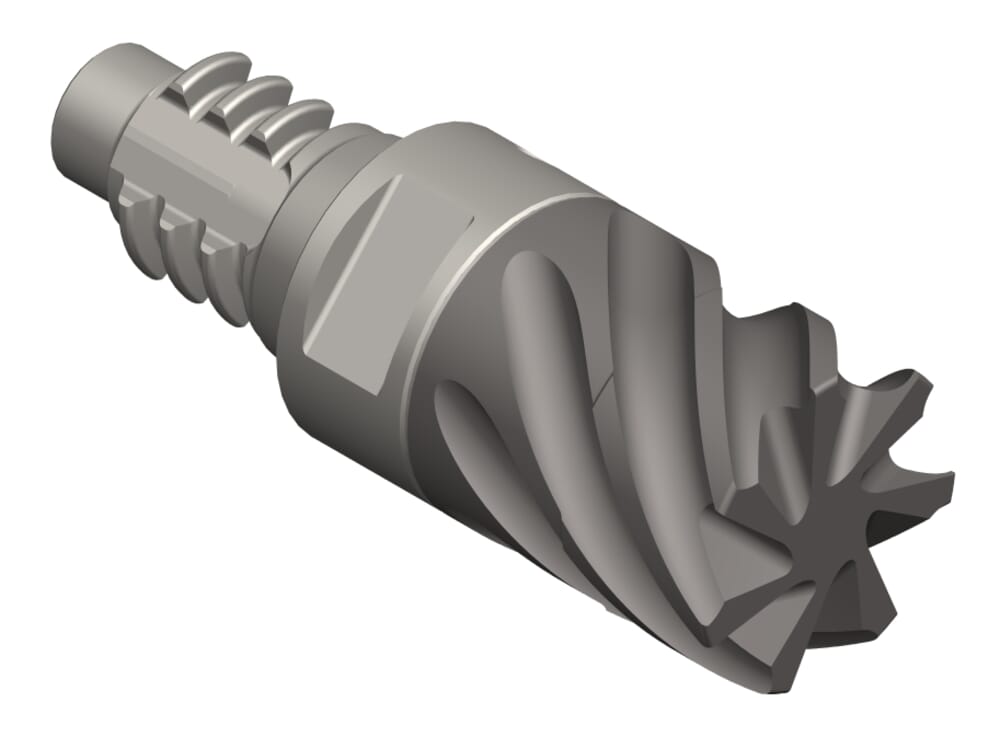

HORN Inserts DGM.9.16.1600.02.0 AN2P for Milling
Please note:Technical instructions
Tool length from stop, flange (l3)
24.8
mm
Effective cutting length (l2)
9
mm
Corner radius (r)
0.2
mm
Key range (SW)
13
mm
Neck diameter (d3)
15.6
mm
Katalog_SSC
DG0161
DIN_SSC
HORN-DG01610N
ISO_SSC
HORNDG01618$0N$$$$$
eclass-shortcut
21-18-06-90
System (System)
DG16
Number of teeth (Z)
9
St.
Cutting diameter (d1)
16
mm
| Downloads | |
|---|---|
| DGM9161600020_20230112_203322832.STP | Download |
| DGM9161600020_20240205_193619173.DXF | Download |
| Download all files | |
