DGM.9.20.2000.02.0 AN2P
Inserts
Part number DGM9202000020AN2P

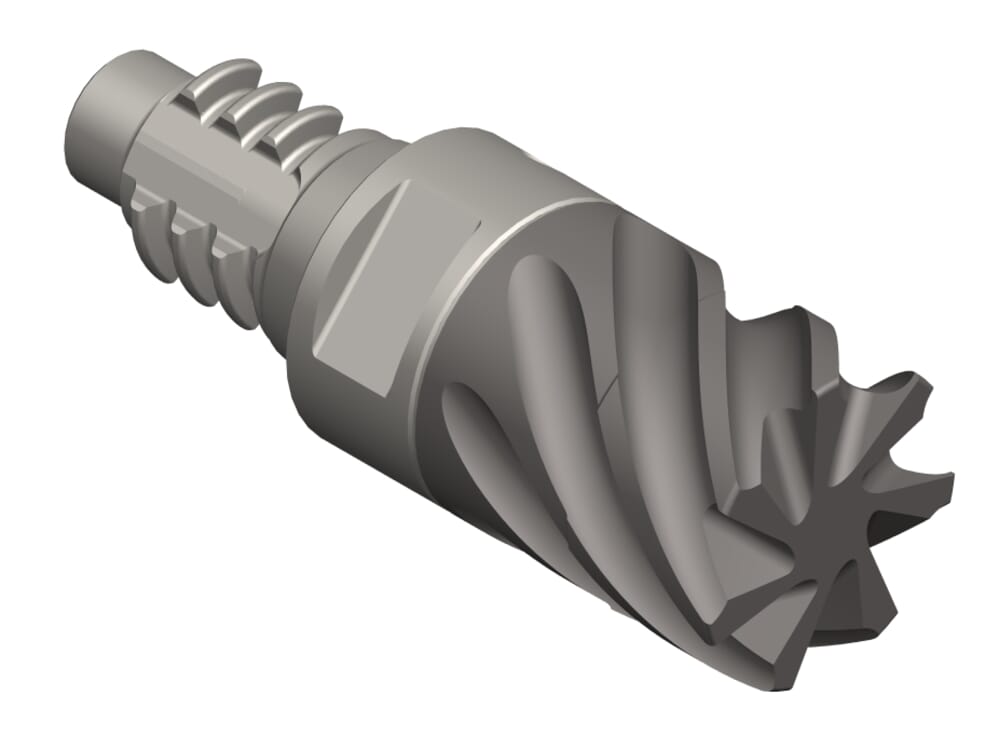

HORN Inserts DGM.9.20.2000.02.0 AN2P for Milling
Please note:Technical instructions
Tool length from stop, flange (l3)
30.3
mm
Effective cutting length (l2)
11
mm
Corner radius (r)
0.2
mm
Key range (SW)
17
mm
Neck diameter (d3)
19.5
mm
Katalog_SSC
DG0201
DIN_SSC
HORN-DG02010N
ISO_SSC
HORNDG02018$0N$$$$$
eclass-shortcut
21-18-06-90
System (System)
DG20
Number of teeth (Z)
9
St.
Cutting diameter (d1)
20
mm
