DGR.3.10.1000.10.00 AN2P
Inserts
Part number DGR31010001000AN2P

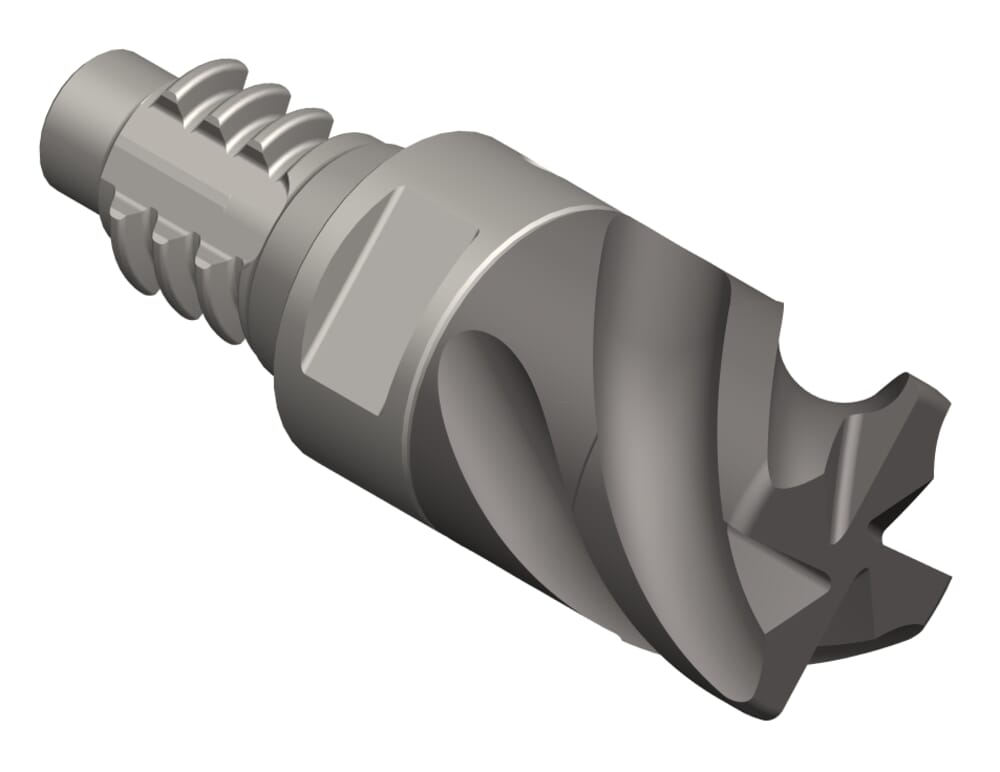

HORN Inserts DGR.3.10.1000.10.00 AN2P for Milling
Please note:Technical instructions
Tool length from stop, flange (l3)
16.8
mm
Effective cutting length (l2)
5.5
mm
Corner radius (r)
1
mm
Key range (SW)
8
mm
Neck diameter (d3)
9.8
mm
Katalog_SSC
DG0101
DIN_SSC
HORN-DG01010N
ISO_SSC
HORNDG01018$0N$$$$$
eclass-shortcut
21-18-06-90
System (System)
DG10
Number of teeth (Z)
3
St.
Cutting diameter (d1)
10
mm
| Downloads | |
|---|---|
| DGR31010001000_20230112_204524889.STP | Download |
| DGR31010001000_20210707_042217453.DXF | Download |
| Download all files | |
