DGR.5.16.1600.10.00 AN2P
Inserts
Part number DGR51616001000AN2P

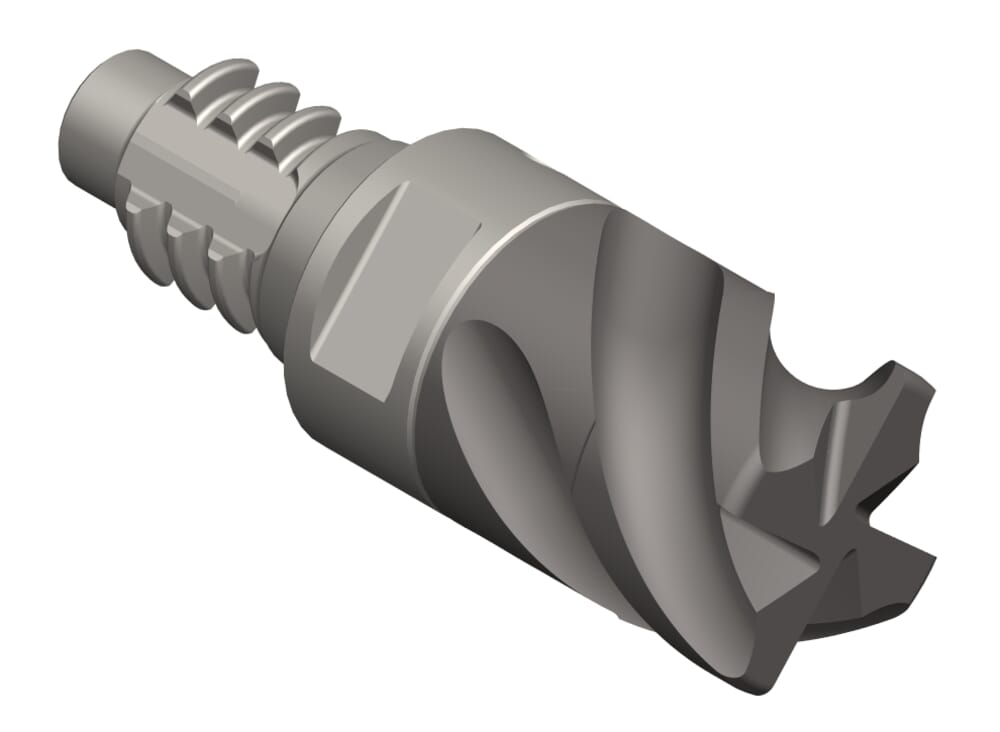

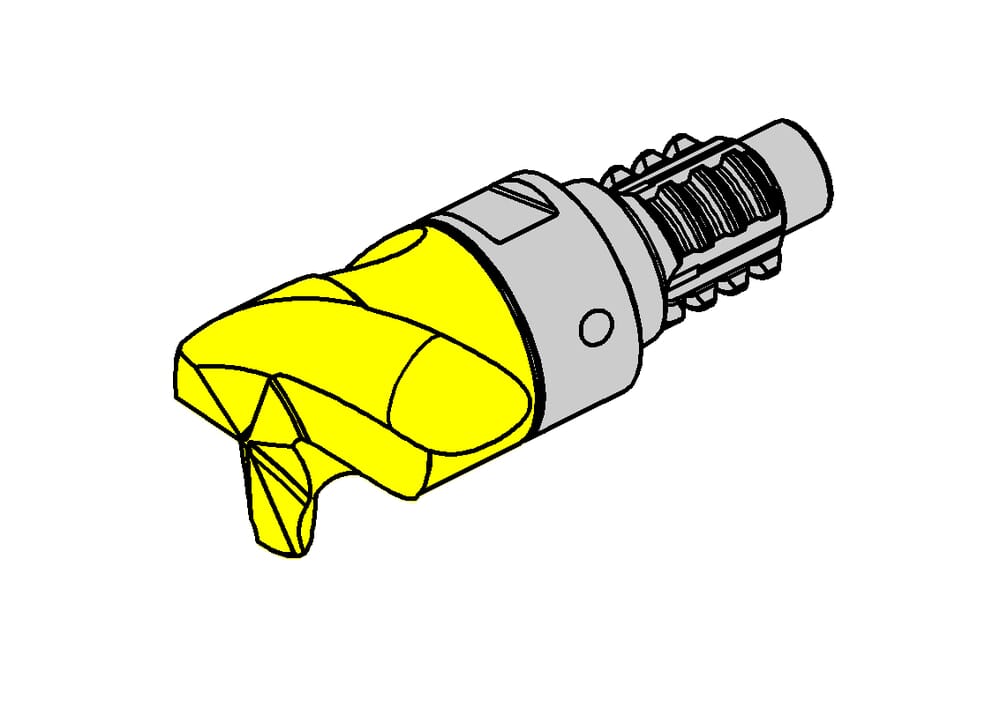

HORN Inserts DGR.5.16.1600.10.00 AN2P for Milling
Please note:Technical instructions

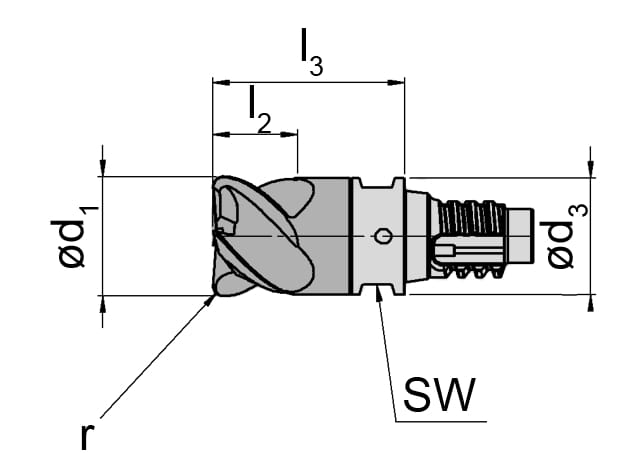

Tool length from stop, flange (l3)
24.8
mm
Effective cutting length (l2)
8.5
mm
Corner radius (r)
1
mm
Key range (SW)
13
mm
Neck diameter (d3)
15.6
mm
Katalog_SSC
DG0161
DIN_SSC
HORN-DG01610N
ISO_SSC
HORNDG01618$0N$$$$$
eclass-shortcut
21-18-06-90
System (System)
DG16
Number of teeth (Z)
5
St.
Cutting diameter (d1)
16
mm
