DGR.5.16.1600.15.00 AN2P
Inserts
Part number DGR51616001500AN2P

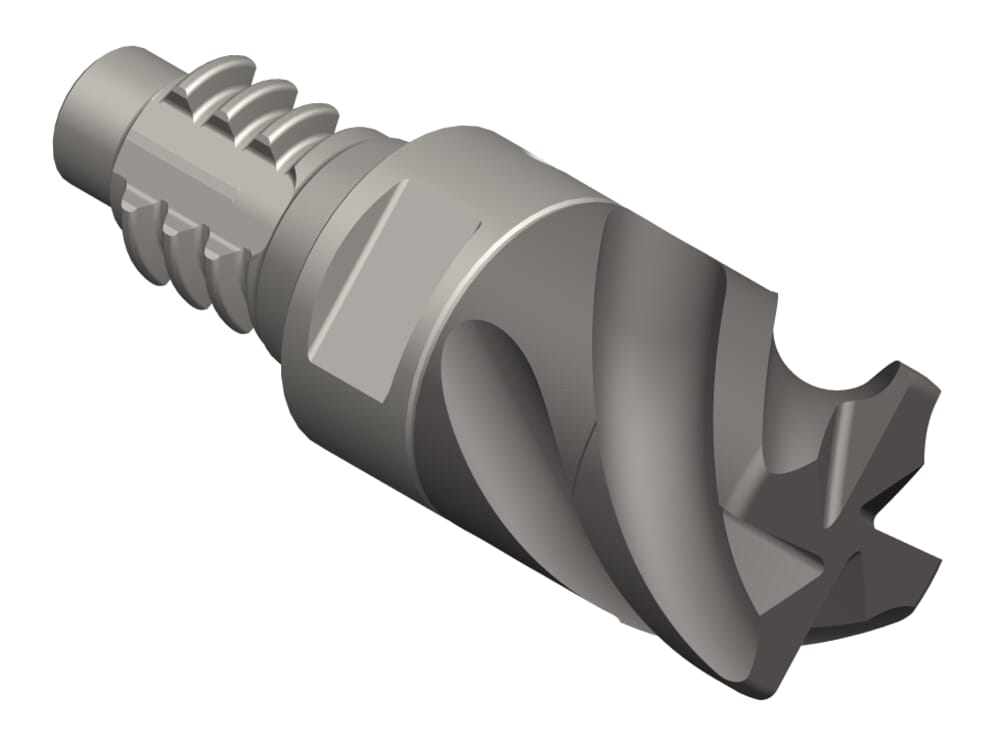

HORN Inserts DGR.5.16.1600.15.00 AN2P for Milling
Please note:Technical instructions
Tool length from stop, flange (l3)
24.8
mm
Effective cutting length (l2)
8.5
mm
Corner radius (r)
1.5
mm
Key range (SW)
13
mm
Neck diameter (d3)
15.6
mm
Katalog_SSC
DG0161
DIN_SSC
HORN-DG01610N
ISO_SSC
HORNDG01618$0N$$$$$
eclass-shortcut
21-18-06-90
System (System)
DG16
Number of teeth (Z)
5
St.
Cutting diameter (d1)
16
mm
