DGR.5.20.2000.10.00 AN2P
Inserts
Part number DGR52020001000AN2P

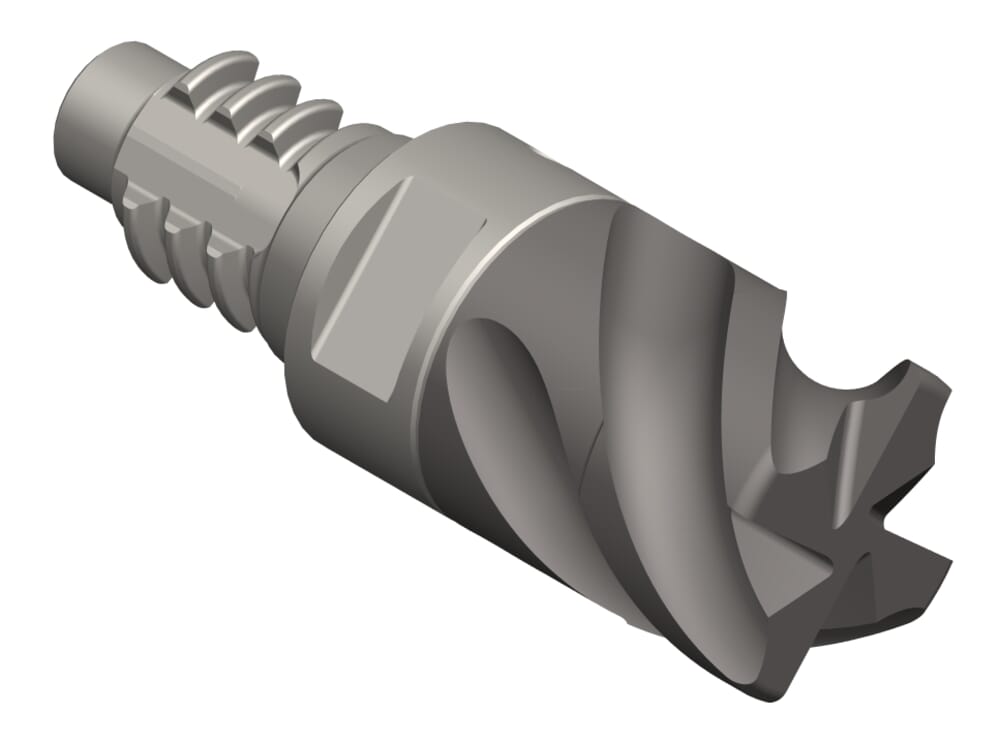

HORN Inserts DGR.5.20.2000.10.00 AN2P for Milling
Please note:Technical instructions
Tool length from stop, flange (l3)
30.3
mm
Effective cutting length (l2)
12
mm
Corner radius (r)
1
mm
Key range (SW)
17
mm
Neck diameter (d3)
19.5
mm
Katalog_SSC
DG0201
DIN_SSC
HORN-DG02010N
ISO_SSC
HORNDG02018$0N$$$$$
eclass-shortcut
21-18-06-90
System (System)
DG20
Number of teeth (Z)
5
St.
Cutting diameter (d1)
20
mm
| Downloads | |
|---|---|
| DGR52020001000_20230112_204701627.STP | Download |
| DGR52020001000_20210629_130727052.DXF | Download |
| Download all files | |
