DSKM.2.06.63.06.L41 TS3K

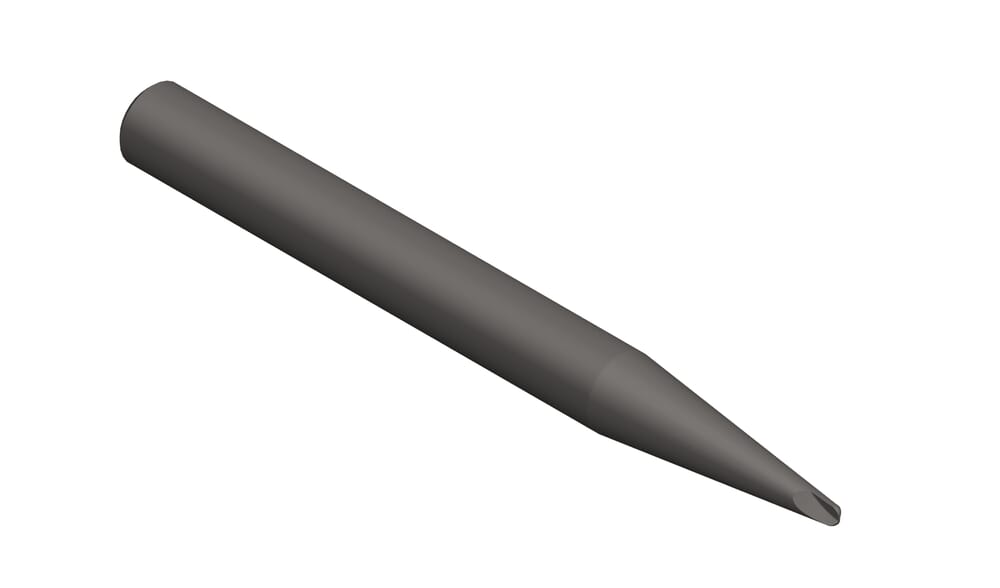

DS Milling cutter

Part number DSKM2066306L41TS3K

HORN DS Milling cutter DSKM.2.06.63.06.L41 TS3K for Milling

Shank tapering angle γ (γ)

13 °

Total length (l1)

63 mm

Effective cutting length (l2)

1.2 mm

Radius, full-radius (r)

0.3 mm

Neck diameter (d3)

0.55 mm

ISO_CCTMS

ZYL01F6000h$06

DIN_CCTMS

ZYL00600105

eclass-shortcut

21-18-06-01

Number of teeth (Z)

2 St.

Cutting diameter (d1)

0.6 mm

Neck length (l3)

4.1 mm

Shank length (l4)

47 mm

Shank diameter (d2)

6 mm

Downloads
DSKM_2_06_63_06_L41.STP	Download
Download all files
