DSMR.6.040.020.20 TS3K
DS-Multi cutter Ø4 R0,2 2xØ Z6
Part number DSMR604002020TS3K

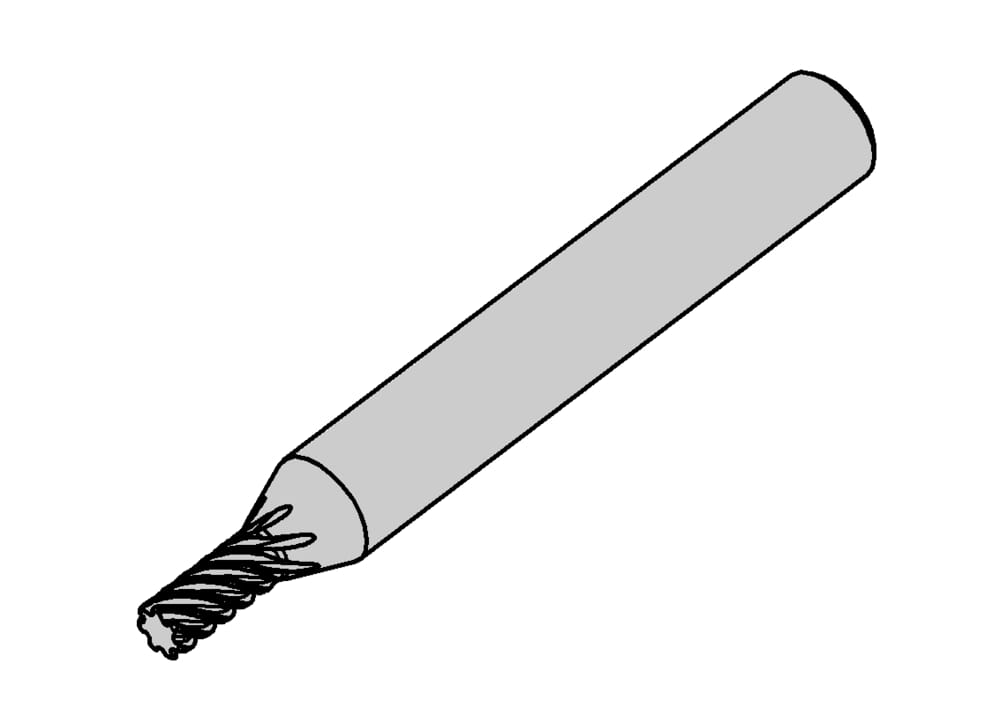

HORN DS-Multi cutter Ø4 R0,2 2xØ Z6 DSMR.6.040.020.20 TS3K for Milling
Please note:Technical instructions

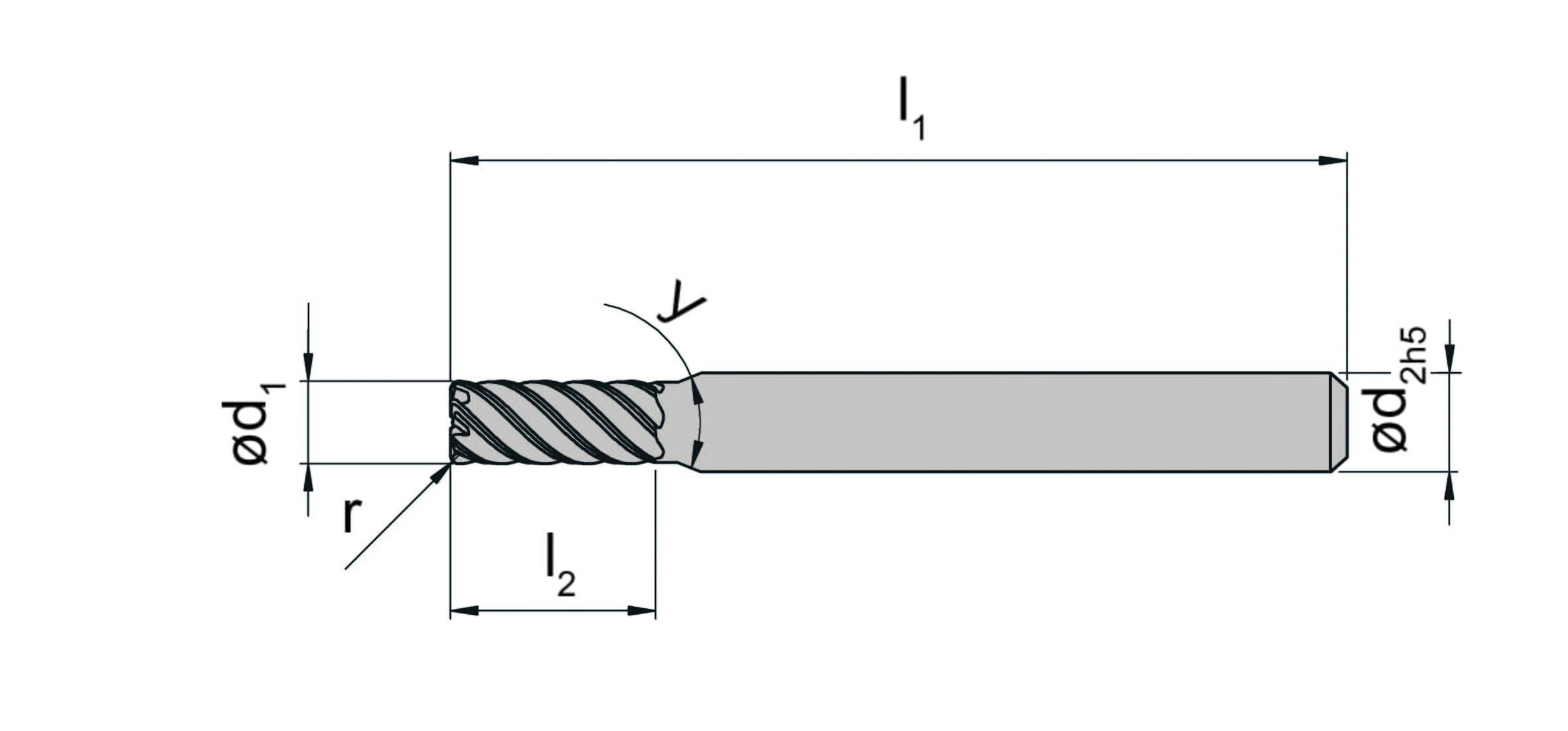

Shank diameter (d2)
6
mm
Cutting diameter (d1)
4
mm
Number of teeth (Z)
6
St.
eclass-shortcut
21-18-06-01
DIN_CCTMS
ZYL00600105
ISO_CCTMS
ZYL01F6000h$06
Corner radius (r)
0.2
mm
Effective cutting length (l2)
8
mm
Total length (l1)
57
mm
Shank tapering angle γ (γ)
40
°
| Downloads | |
|---|---|
| DSMR604002020.STP | Download |
| DSMR604002020_20240205_172325349.DXF | Download |
| Download all files | |
