H224.2602.02
Toolholder
Part number H224260202
HORN Toolholder H224.2602.02 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-04

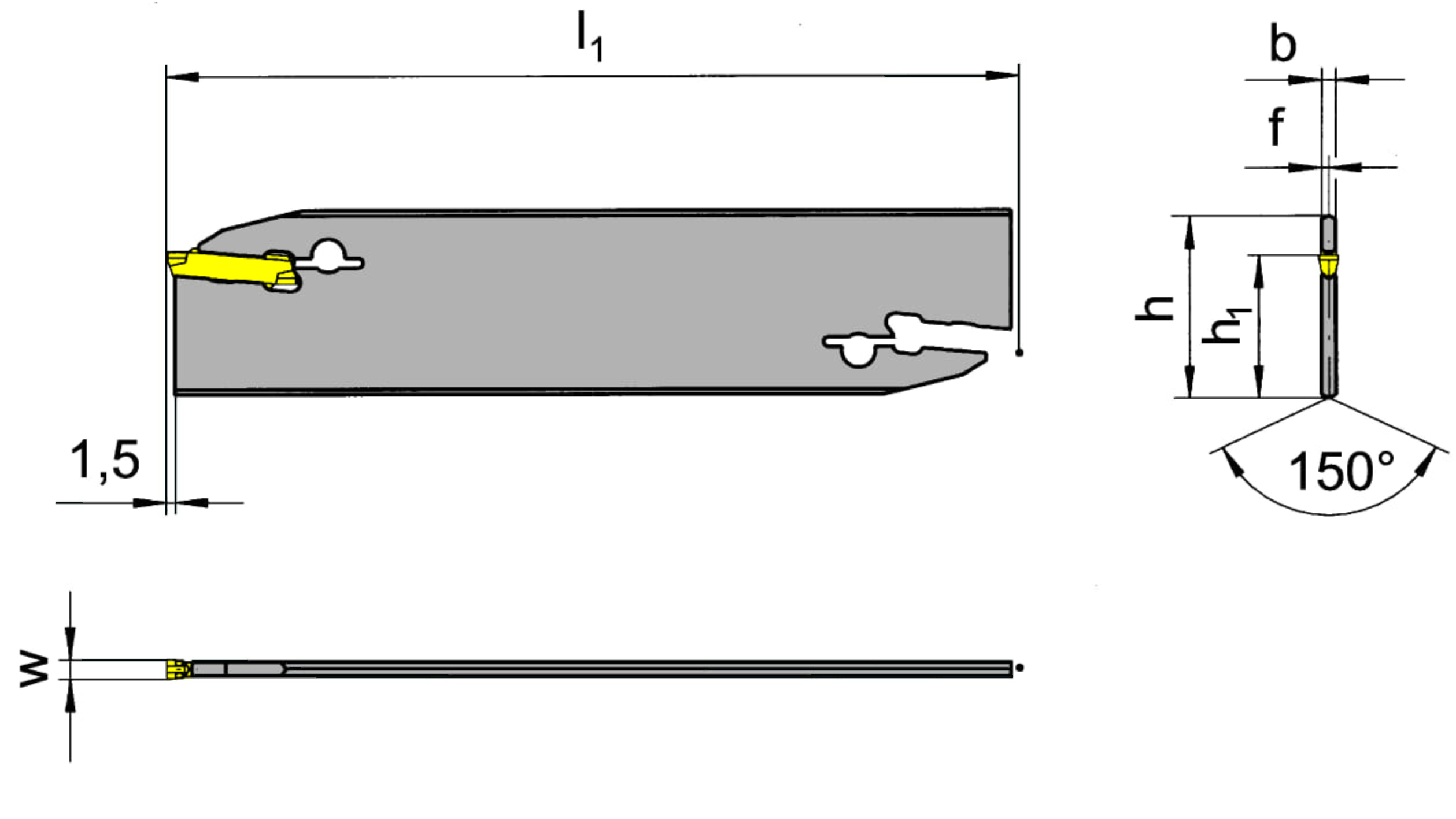

Width of groove (w)
2.5
mm
Plating seat size (Größe)
2
ISO_CCTMS
PMU01C0260$$$$
DIN_CCTMS
PMU02600105
Katalog_CCTWS
224028
DIN_CCTWS
HORN-224020058N
ISO_CCTWS
HORN224020058N$$$$$
Clamping range maximum (Spannbereich)
2.8
mm
Clamping range minimum (Spannbereich)
2.4
mm
Peak height (h1)
21.4
mm
Maximum insertion depth (tmax)
18
mm
Head height (h)
26
mm
Total length (including cutting insert) (l1)
110
mm
Adjustment dimension (f)
0.95
mm
Width / thickness sword (b)
1.9
mm
| Downloads | |
|---|---|
| H224_2602_02_20171121_225729250.STP | Download |
| H224260202_20211119_115754468.DXF | Download |
| Download all files | |
