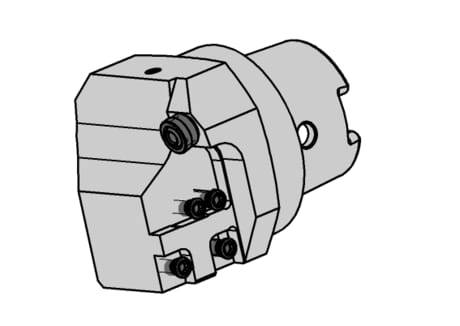

HSK-L220.0063.K1.IK
base support
Part number HSK-L2200063K1IK
HORN base support HSK-L220.0063.K1.IK for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-01
ISO_CCTMS
HSK01C0630$$$$
DIN_CCTMS
HSK06300595
Katalog_CCTWS
220002
DIN_CCTWS
HORN-22000293;HORN-22000283
ISO_CCTWS
HORN22000293$$;HORN22000283$$

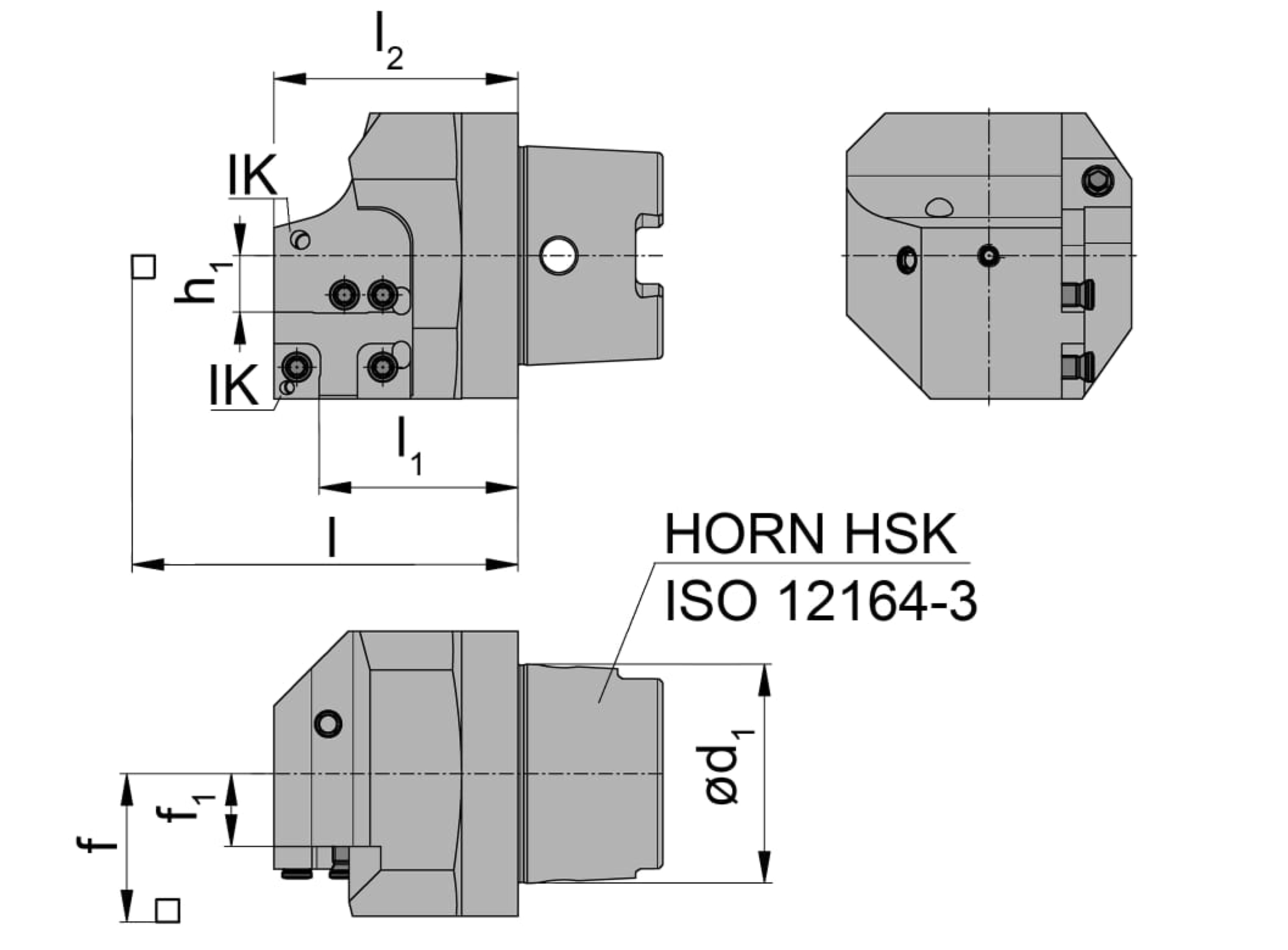

dim-locating-face-to-cassette-met
44
Length assembly from bore formula (l)
l1+lK
Adjustment dimension (formula) (f)
f1+f3
Length of base from bore (l2)
54
Cassette system from the middle (f1)
16.1
mm
Bore diameter rotate (d1)
63
mm
Distance from center (h1)
12.5
mm
| Downloads | |
|---|---|
| HSK-L220_0063_K1_20171121_210344640.STP | Download |
| Download all files | |
