jetzt DCG3M350502104RC25 verwenden

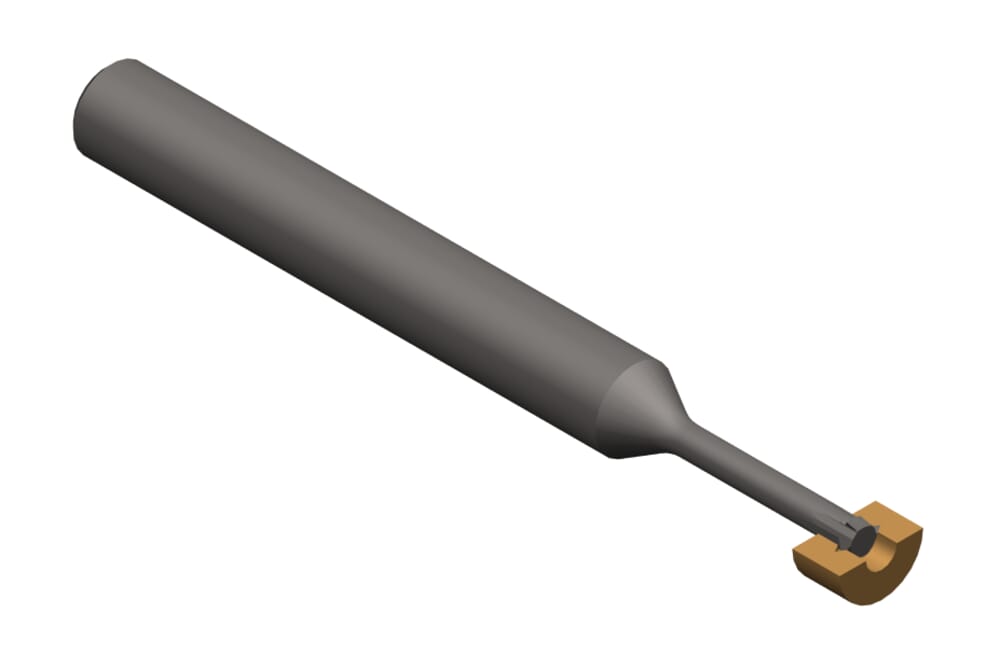

DC threadmill - Metric ISO - M3.5 partial profile

Part number DCG3M350502104AN25

HORN DC threadmill - Metric ISO - M3.5 partial profile jetzt DCG3M350502104RC25 verwenden for Milling

eclass-shortcut

21-18-06-10

Maximum pitch (Pmax)

0.6 mm

Pitch (P)

0.5 mm

Smallest bore diameter (Dmin)

2.7 mm

Thread (Gewinde)

M3,5

Total length (l1)

39 mm

Neck diameter (d3)

1.35 mm

ISO_CCTMS

ZYL01F4000h$06

DIN_CCTMS

ZYL00400105

Shank, clamping length (l4)

22 mm

Number of teeth (Z)

3 St.

Cutting diameter (d1)

2.3 mm

Neck length (l3)

8 mm

Shank diameter (d2)

4 mm
