jetzt DCN4801515508RC45 verwenden

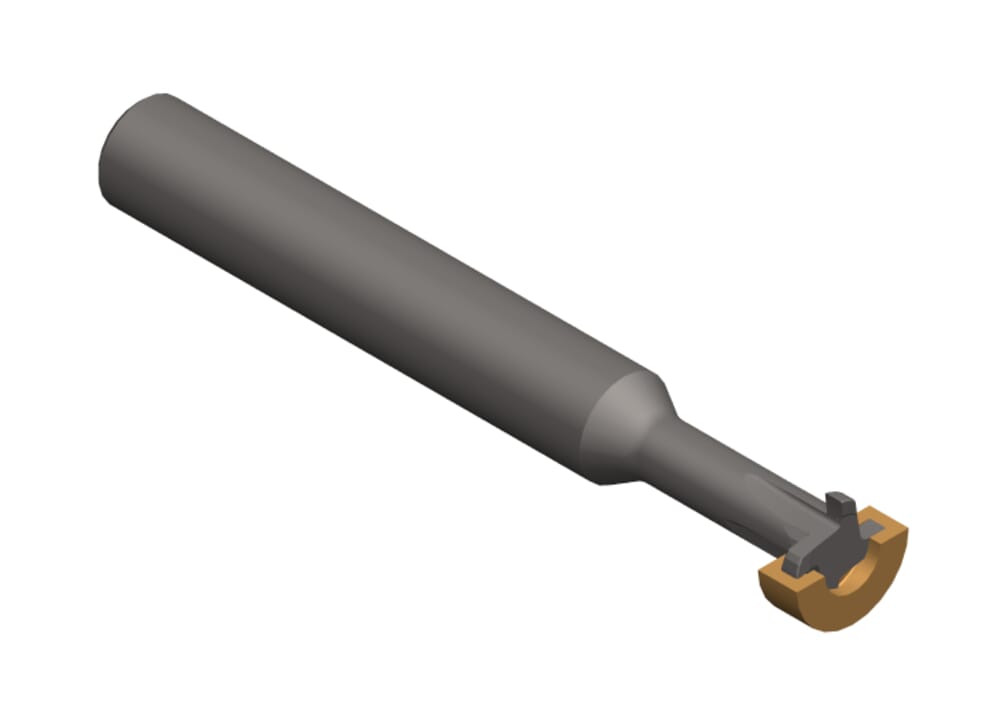

DC groove mill cutter
Part number DCN4801515508AN25
HORN DC groove mill cutter jetzt DCN4801515508RC45 verwenden for Milling
Please note:Technical instructions
Shank, clamping length (l4)
40
mm
Total length (l1)
63
mm
Corner radius (r)
0.15
mm
Maximum milling depth/ depth of groove (tmax)
1.5
mm
Neck diameter (d3)
4.6
mm
ISO_CCTMS
ZYL01F8000h$06
DIN_CCTMS
ZYL00800105
eclass-shortcut
21-18-06-01
Width of groove (w)
1.5
mm
Number of teeth (Z)
4
St.
Cutting diameter (d1)
8
mm
Neck length (l3)
16
mm
Shank diameter (d2)
8
mm
| Downloads | |
|---|---|
| DCN4801515508_20230112_225838794.STP | Download |
| DCN4801515508_20210625_221615631.DXF | Download |
| Download all files | |
