L106.1831.1.04 TH35
insert
Part number L1061831104TH35

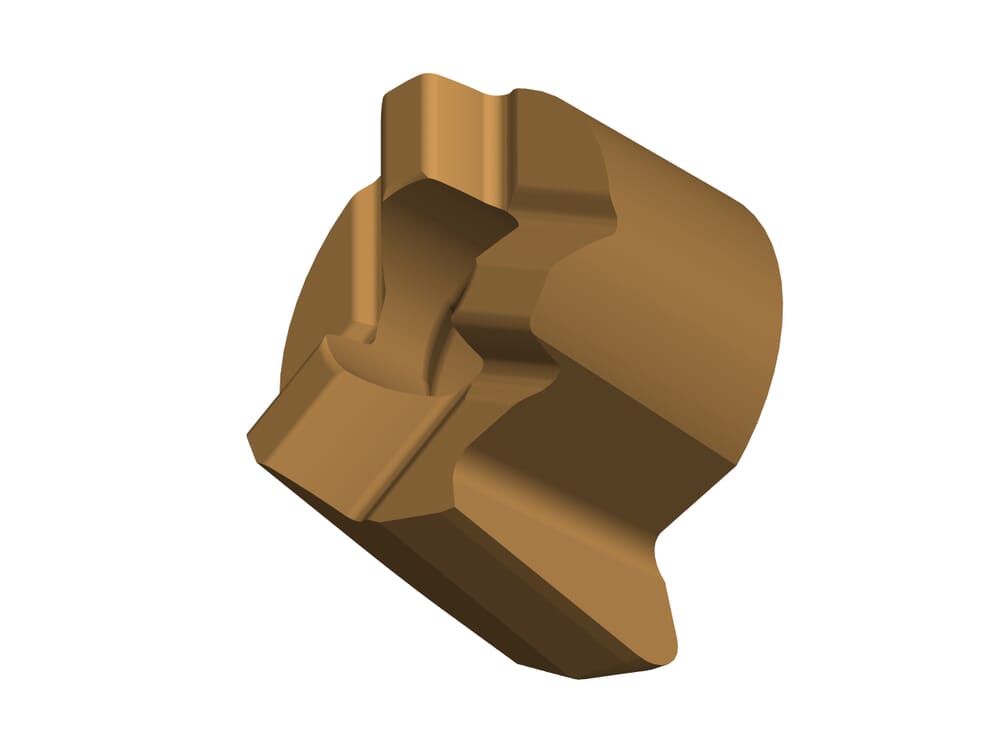

HORN insert L106.1831.1.04 TH35 for Turning
Please note:Technical instructions

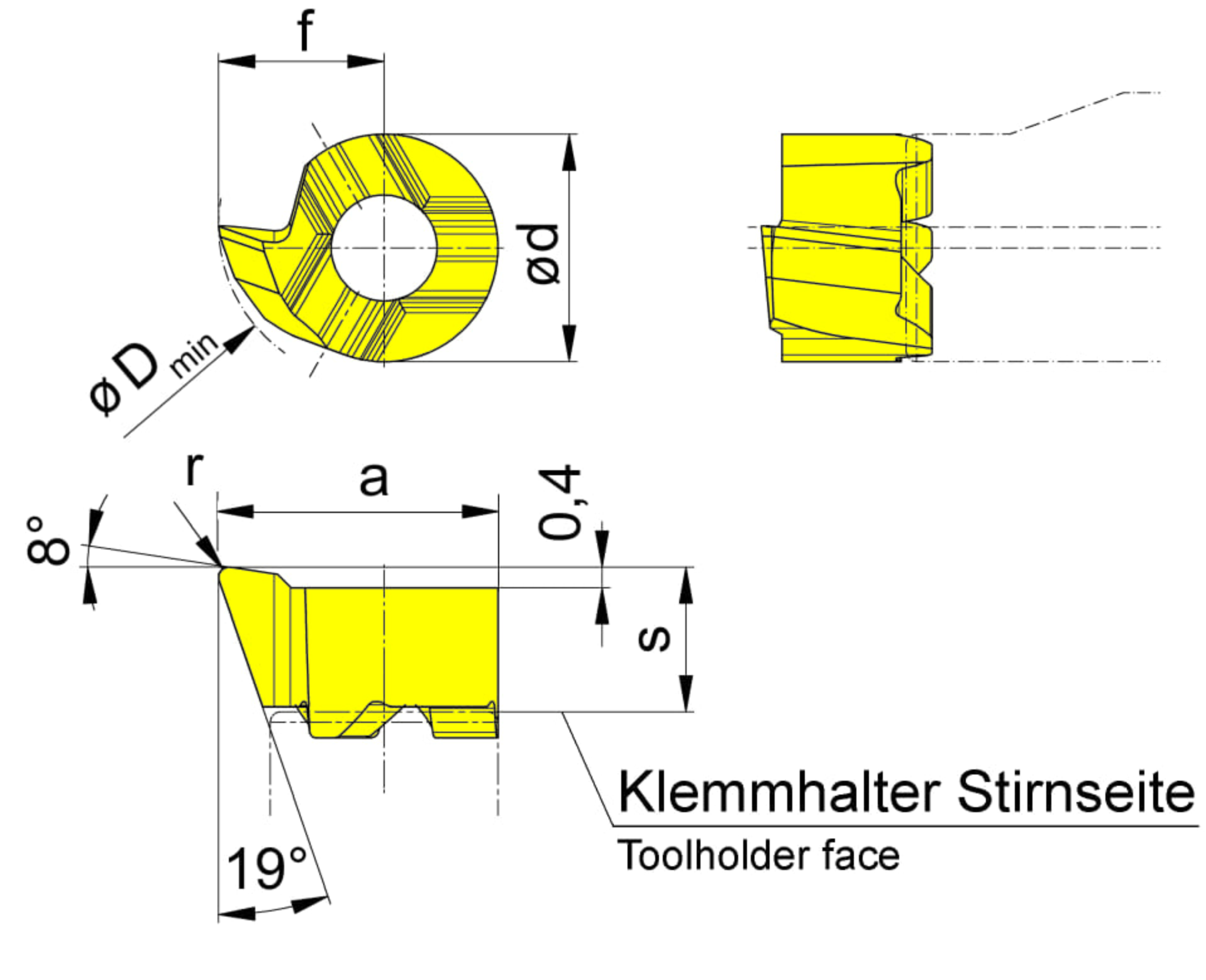

Top radius (r)
0.4
mm
Head size (a)
5.4
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN106044$84L$$$$$
DIN_SSC
HORN-10604484L
Katalog_SSC
106044L
Setting range radial (f)
3.2
mm
Tooth diameter, head diameter (d)
4.4
mm
Cutting insert height, Cutting insert thickness (s)
2.8
mm
Smallest bore diameter (Dmin)
6
mm
| Downloads | |
|---|---|
| L1061831104_20210630_174320294.STP | Download |
| L1061831104_20210627_161809414.DXF | Download |
| Download all files | |
