L107.1837.02 EG55
Insert
Part number L107183702EG55

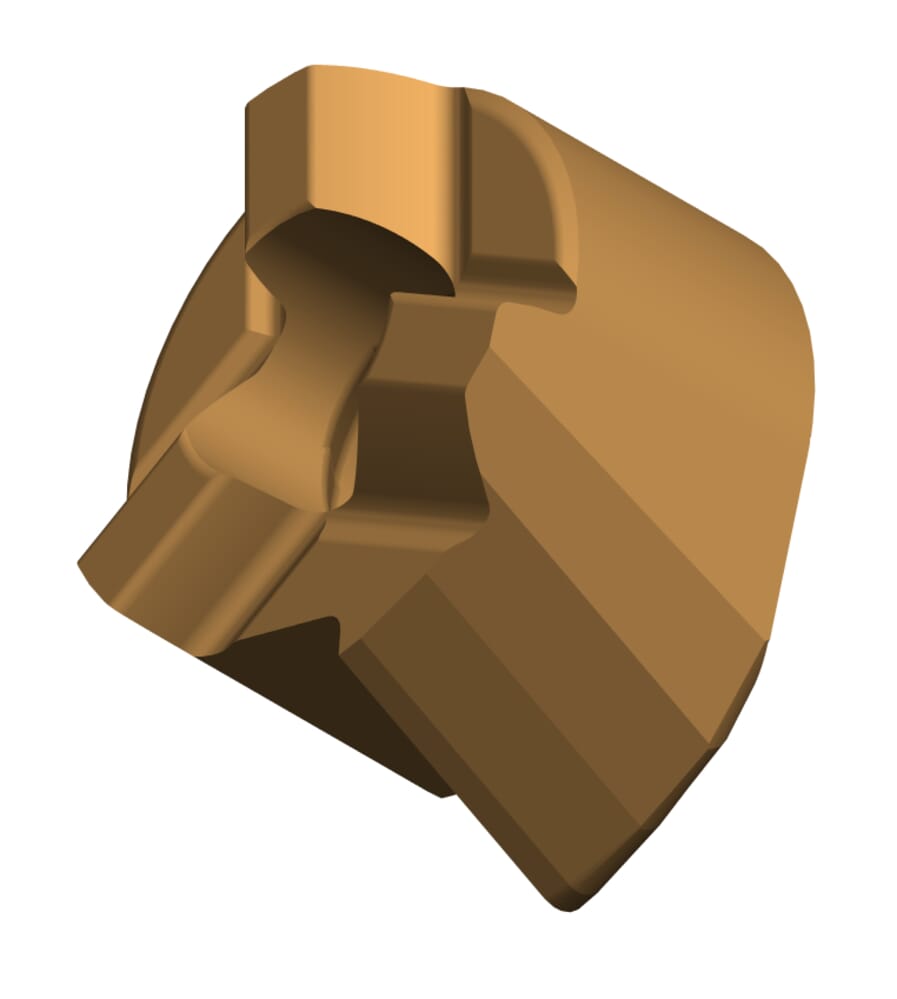

HORN Insert L107.1837.02 EG55 for Turning
Please note:Technical instructions
Top radius (r)
0.2
mm
Head size (a)
6.3
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN107052$84L$$$$$
DIN_SSC
HORN-10705284L
Katalog_SSC
107052L
Setting range radial (f)
3.7
mm
Tooth diameter, head diameter (d)
5.2
mm
Cutting insert height, Cutting insert thickness (s)
3.3
mm
Smallest bore diameter (Dmin)
6.8
mm
| Downloads | |
|---|---|
| L107183702_20230112_201424494.STP | Download |
| L107183702_20210627_171052766.DXF | Download |
| Download all files | |
