L108.0070.00 TN35
Inserts
Part number L108007000TN35

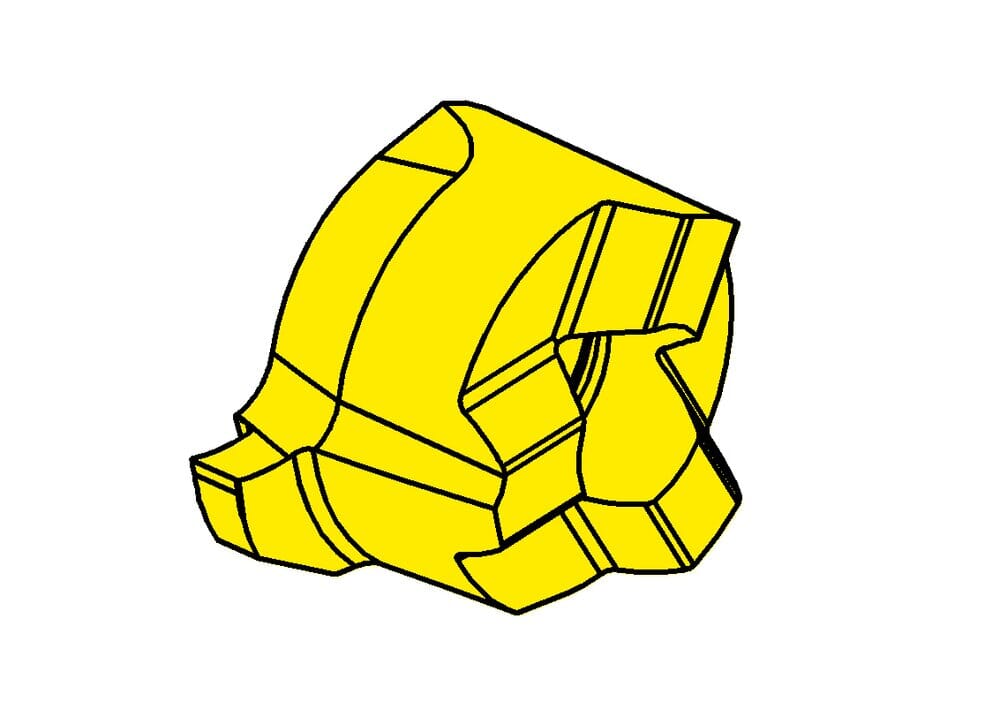

HORN Inserts L108.0070.00 TN35 for Turning
Please note:Technical instructions
DIN_SSC
HORN-10806084L
Smallest bore diameter (Dmin)
8
mm
Tooth diameter, head diameter (d)
6
mm
Cutting insert width (a)
7.8
mm
Setting range radial (f)
4.8
mm
Cutting insert thickness to cutting edge, setting length to cutting edge (s1)
3.2
mm
Cutting insert thickness, setting length complete (s)
3.6
mm
Nominal range (Nw)
0.7
mm
Maximum milling depth/ depth of groove (tmax)
1
mm
Width of groove (w)
0.74
mm
Katalog_SSC
108060L
ISO_SSC
HORN108060$84L$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
1
St.
Cutting diameter (Ds)
9.6
mm
Downloads | |
---|---|
L108007000_20210630_130150640.STP | Download |
L108007000_20210627_204616503.DXF | Download |
Download all files |
