L111.1855.02 TI25
insert
Part number L111185502TI25

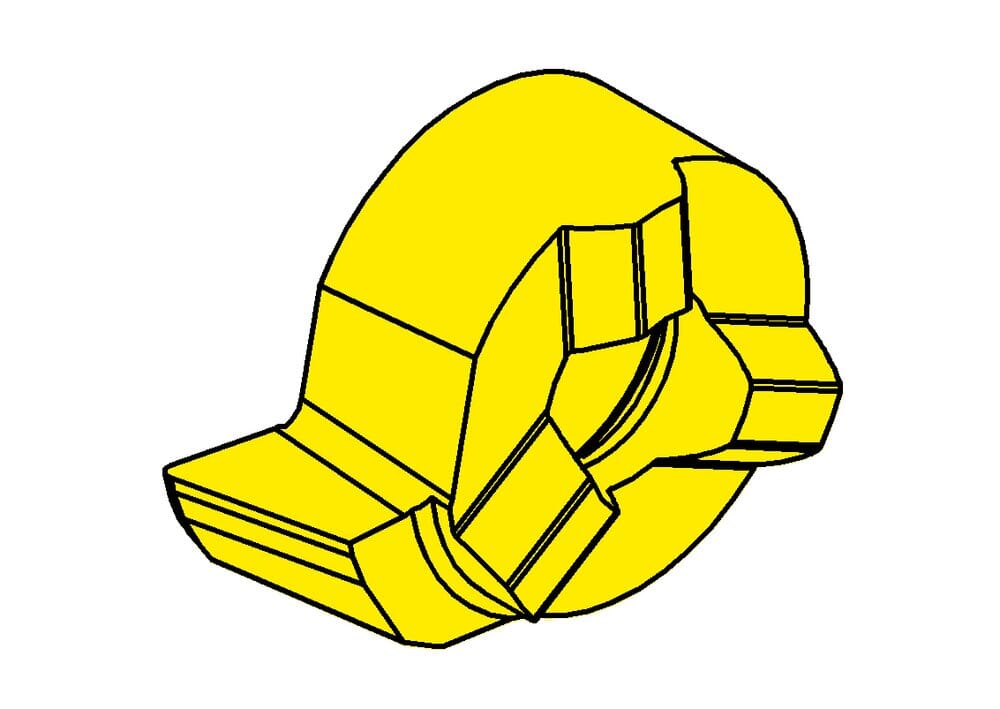

HORN insert L111.1855.02 TI25 for Turning
Please note:Technical instructions
Top radius (r)
0.2 mm
Head size (a)
9.5 mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN111080$84L$$$$$
Katalog_SSC
111080L
Setting range radial (f)
5.5 mm
Tooth diameter, head diameter (d)
8 mm
Cutting insert height, Cutting insert thickness (s)
3.95 mm
Smallest bore diameter (Dmin)
9.8 mm
| Downloads | |
|---|---|
| L111_1855_02_TI25-DXF.DXF | Download |
| L111_1855_02_TI25-STP.STP | Download |
| L111_1855_02_TI25-ISO.XML | Download |
| L111_1855_02_TI25-DIN.XML | Download |
| Download all files | |
