L114.0070.00 TN35

Inserts

Part number L114007000TN35

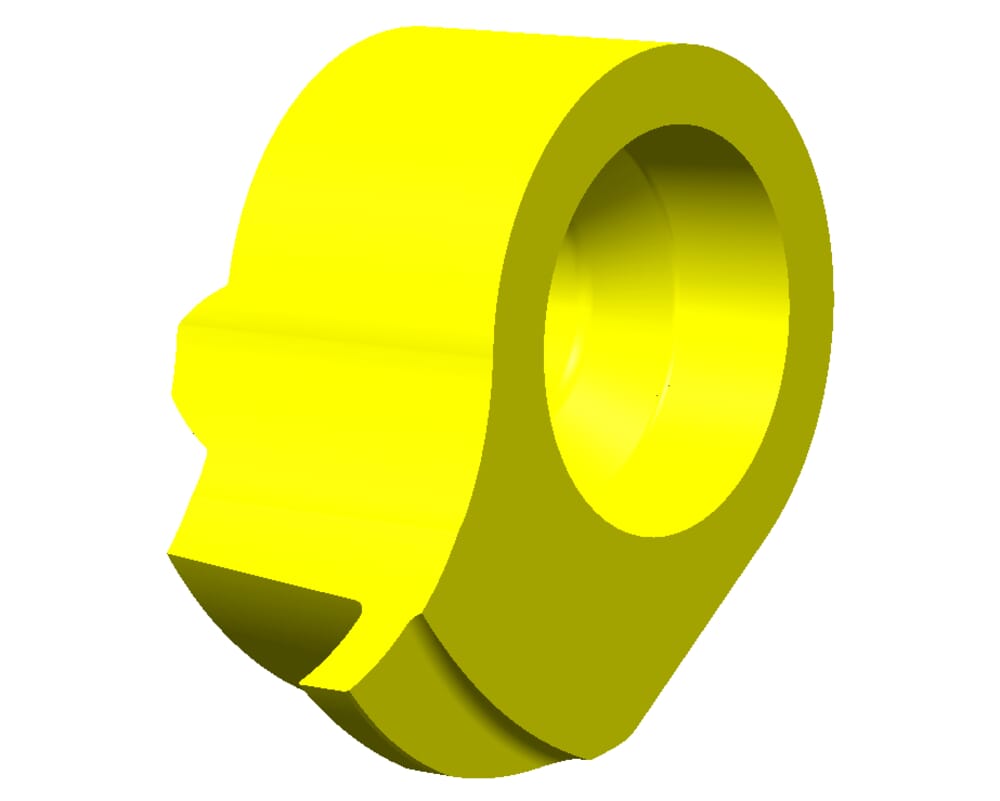

HORN Inserts L114.0070.00 TN35 for Turning

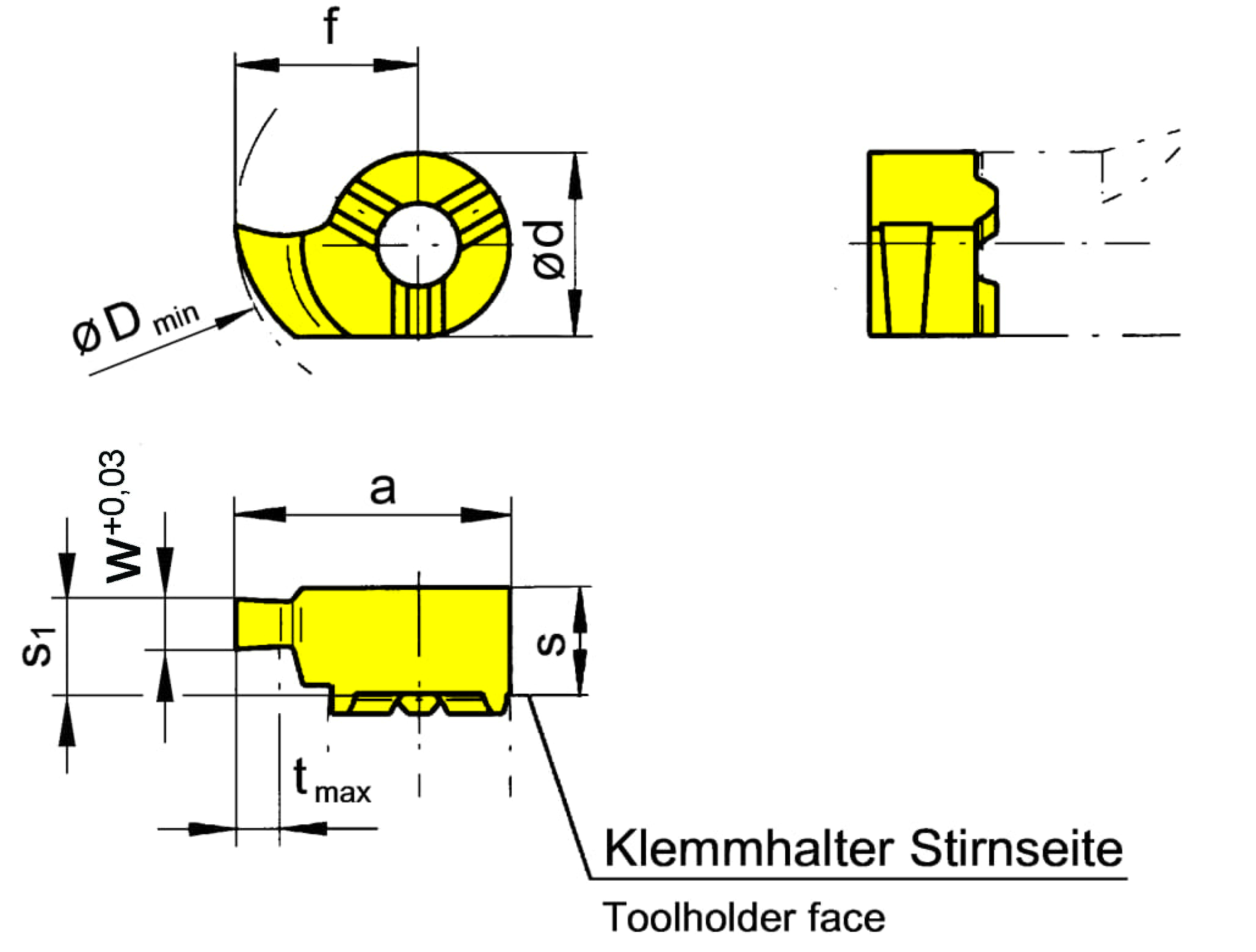

Smallest bore diameter (Dmin)

14 mm

Cutting insert height, Cutting insert thickness (s)

5.5 mm

Tooth diameter, head diameter (d)

9 mm

Setting range radial (f)

9 mm

Nominal range (Nw)

0.7 mm

Width of groove (w)

0.74 mm

Katalog_SSC

114090L

DIN_SSC

HORN-11409084L

ISO_SSC

HORN114090$84L$$$$$

Distance dimension cutting edge (s1)

5.3 mm

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

1.2 mm

Head size (a)

13.5 mm
