L114.0110.00 TH35

Inserts

Part number L114011000TH35

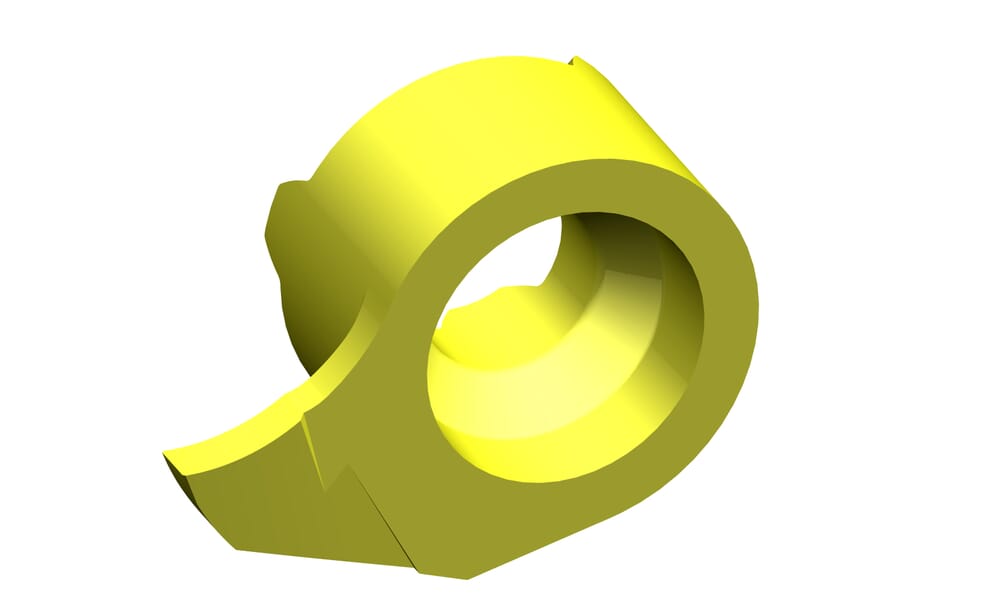

HORN Inserts L114.0110.00 TH35 for Turning

ISO_SSC

HORN114090$84L$$$$$

Smallest bore diameter (Dmin)

14 mm

Cutting insert height, Cutting insert thickness (s)

5.3 mm

Tooth diameter, head diameter (d)

9 mm

Setting range radial (f)

9 mm

Nominal range (Nw)

1.1 mm

Width of groove (w)

1.19 mm

Katalog_SSC

114090L

DIN_SSC

HORN-11409084L

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

4 mm

Head size (a)

13.5 mm
