L116.5514.02 TN35

Insert

Part number L116551402TN35

HORN Insert L116.5514.02 TN35 for Gewinden

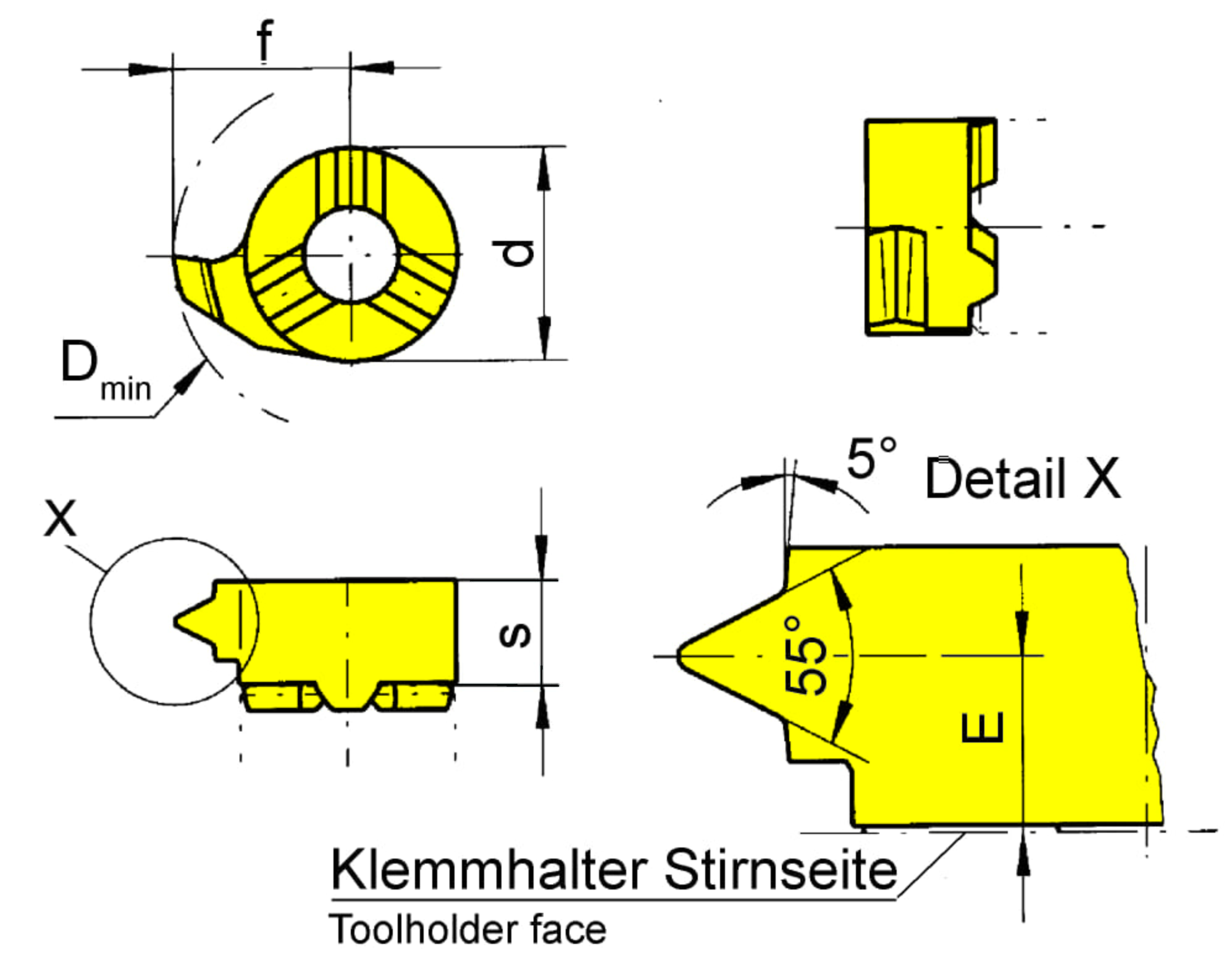

cutting-insert-width-met

15.7 mm

Smallest bore diameter (Dmin)

16 mm

Cutting insert height, Cutting insert thickness (s)

5.5 mm

Setting length (E)

3.9 mm

Tooth diameter, head diameter (d)

11 mm

number-of-teeth

1 St.

Setting range radial (f)

10.2 mm

Katalog_SSC

116110L

ISO_SSC

HORN116110$84L$$$$$

eclass-shortcut

21-18-20-11

Threads per inch (TPI)
