L312.0808.00 TF45
Inserts
Part number L312080800TF45

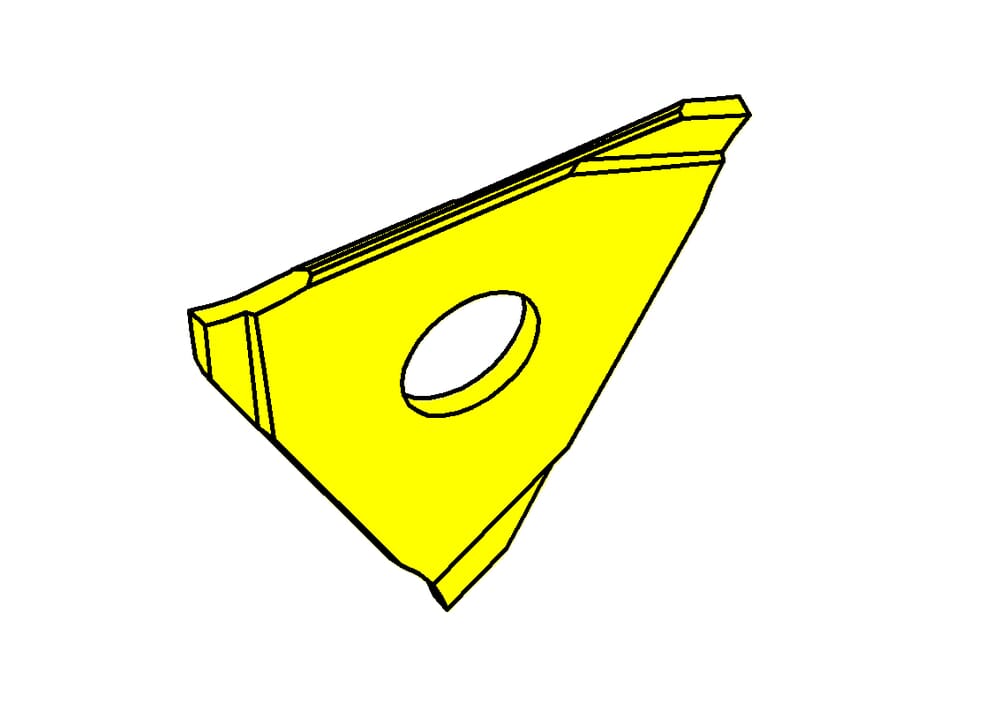

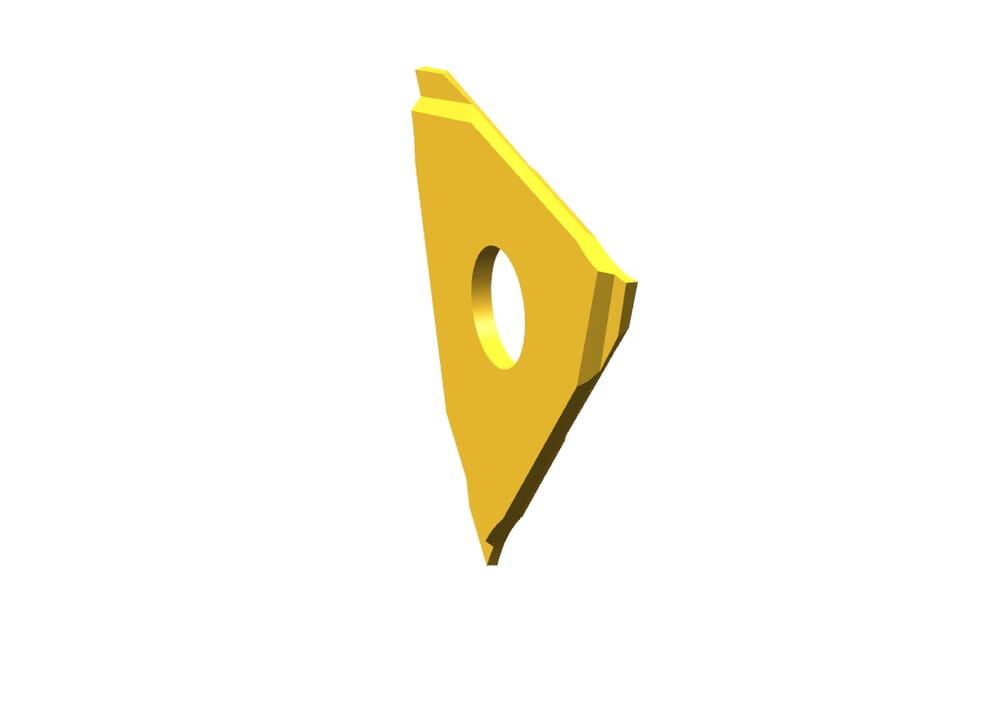

HORN Inserts L312.0808.00 TF45 for Turning
Please note:Technical instructions

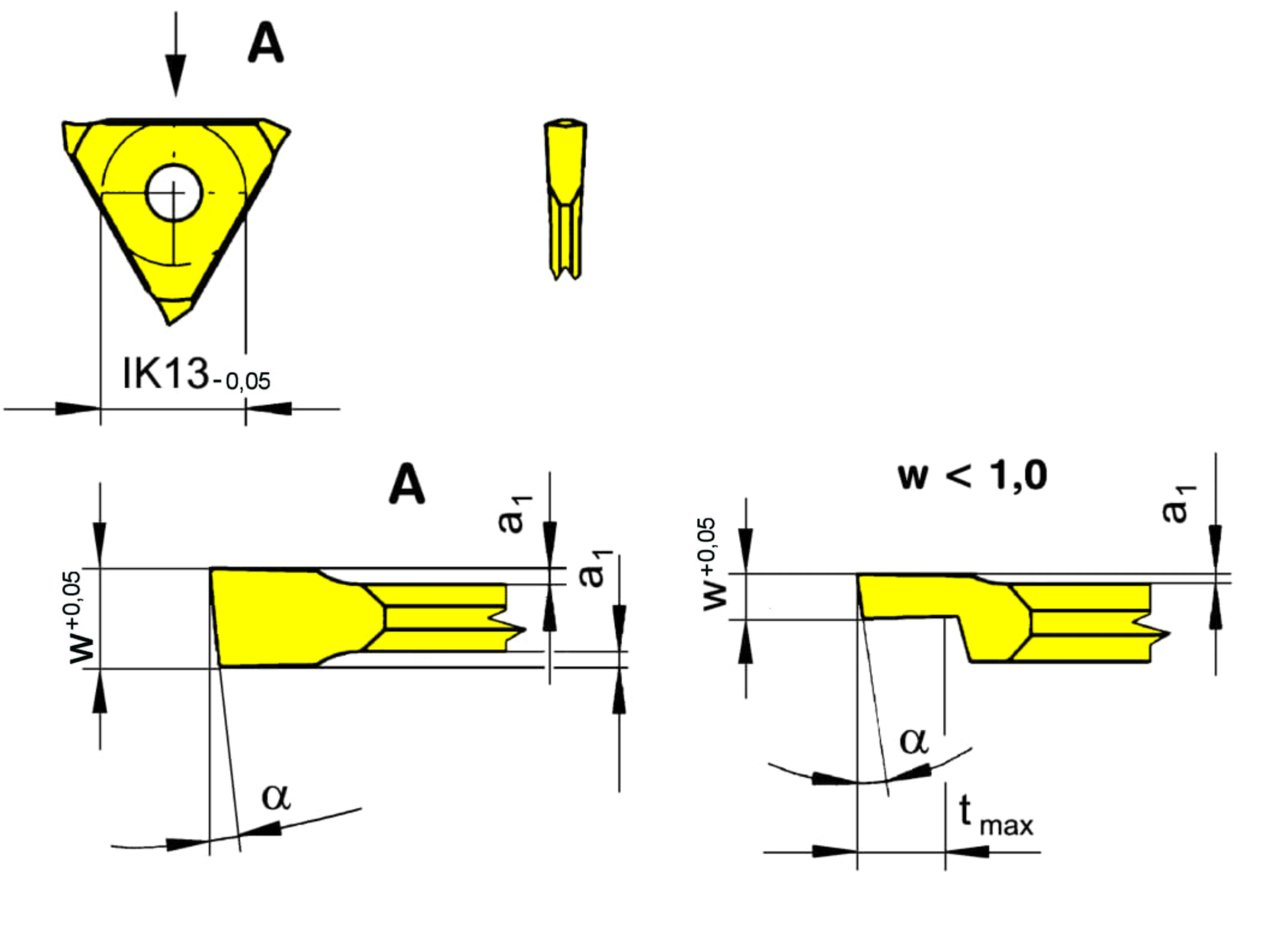

Cancellation (a1)
0.1
mm
Parting-off chamfer (α)
8
°
Maximum depth of groove (tmax)
1.5
mm
eclass-shortcut
21-18-20-01
ISO_SSC
HORN-31208$000N$$$$$
DIN_SSC
HORN-31208000N
Katalog_SSC
31208N
Plating seat size (Größe)
1
Width of groove (w)
0.8
mm
| Downloads | |
|---|---|
| L312080800_20240117_022117552.STP | Download |
| L312080800.DXF | Download |
| Download all files | |
