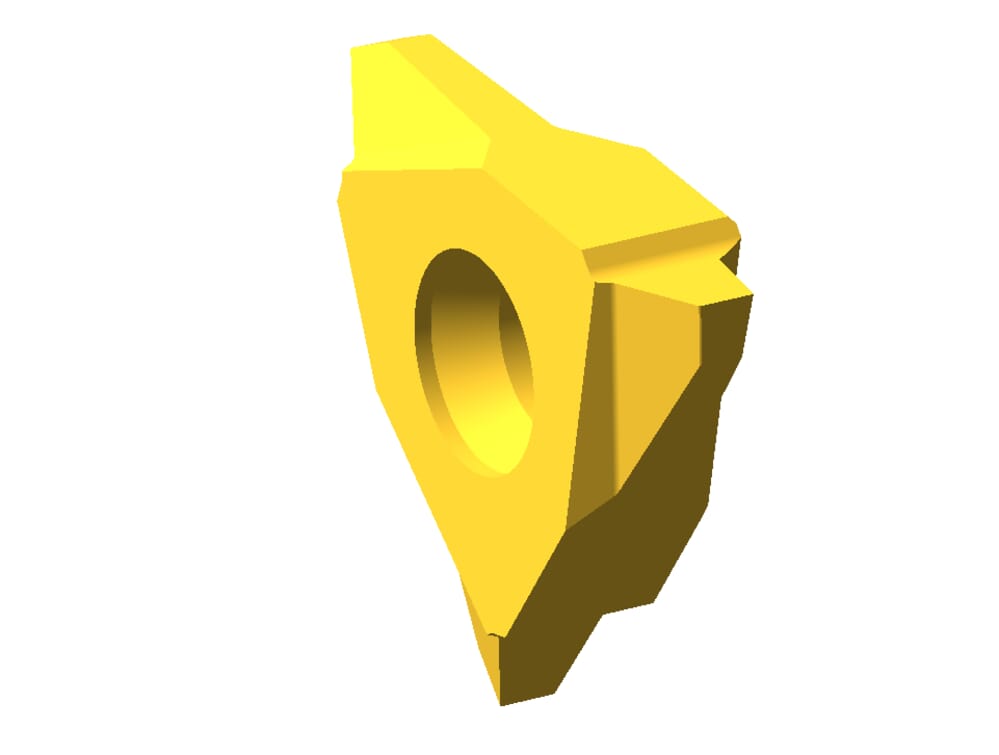

L315.2750.02 TN35

Inserts

Part number L315275002TN35

HORN Inserts L315.2750.02 TN35 for Gewinden

Cutting insert height, Cutting insert thickness (s)

5.45 mm

eclass-shortcut

21-18-20-01

Pitch (P)

5 mm

Smallest bore diameter (Dmin)

43 mm

number-of-teeth

3 St.

Setting length (E)

3.3 mm

Plating seat size (Größe)

Katalog_SSC

31505L

DIN_SSC

HORN-31505051L

ISO_SSC

HORN31505$051L$$$$$

Profile, thread depth (h1)

2.75 mm

Width at the base of the thread (b)

1.7 mm
