L360.00C4.K2

Toolholders

Part number L36000C4K2

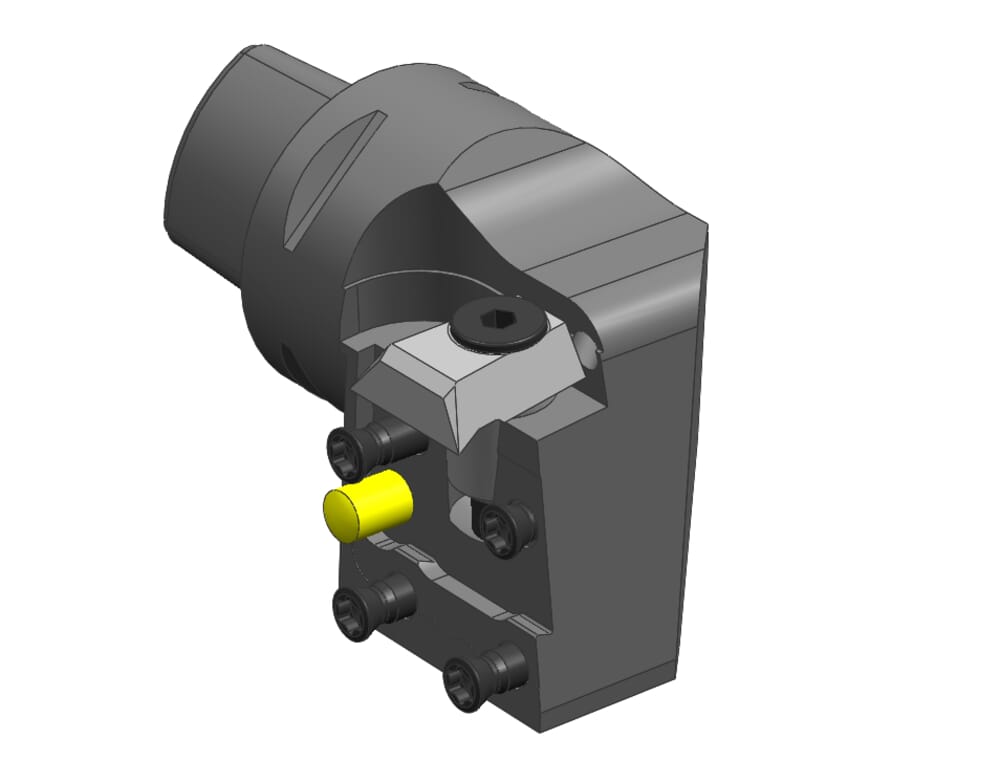

HORN Toolholders L360.00C4.K2 for Turning

eclass-shortcut

21-18-10-04

Clamping range maximum (Spannbereich)

2.9 mm

Clamping range minimum (Spannbereich)

1.9 mm

Length from stop (l1)

50 mm

ISO_CCTMS

CCS01C0400$$$$

DIN_CCTMS

CCS04000195

Katalog_CCTWS

31202N;31202R;31202L

DIN_CCTWS

HORN-31202000N;HORN-31202000R;HORN-31202000L

ISO_CCTWS

HORN-31202$000N$$$$$;HORN-31202$000R$$$$$;HORN-31202$000L$$$$$

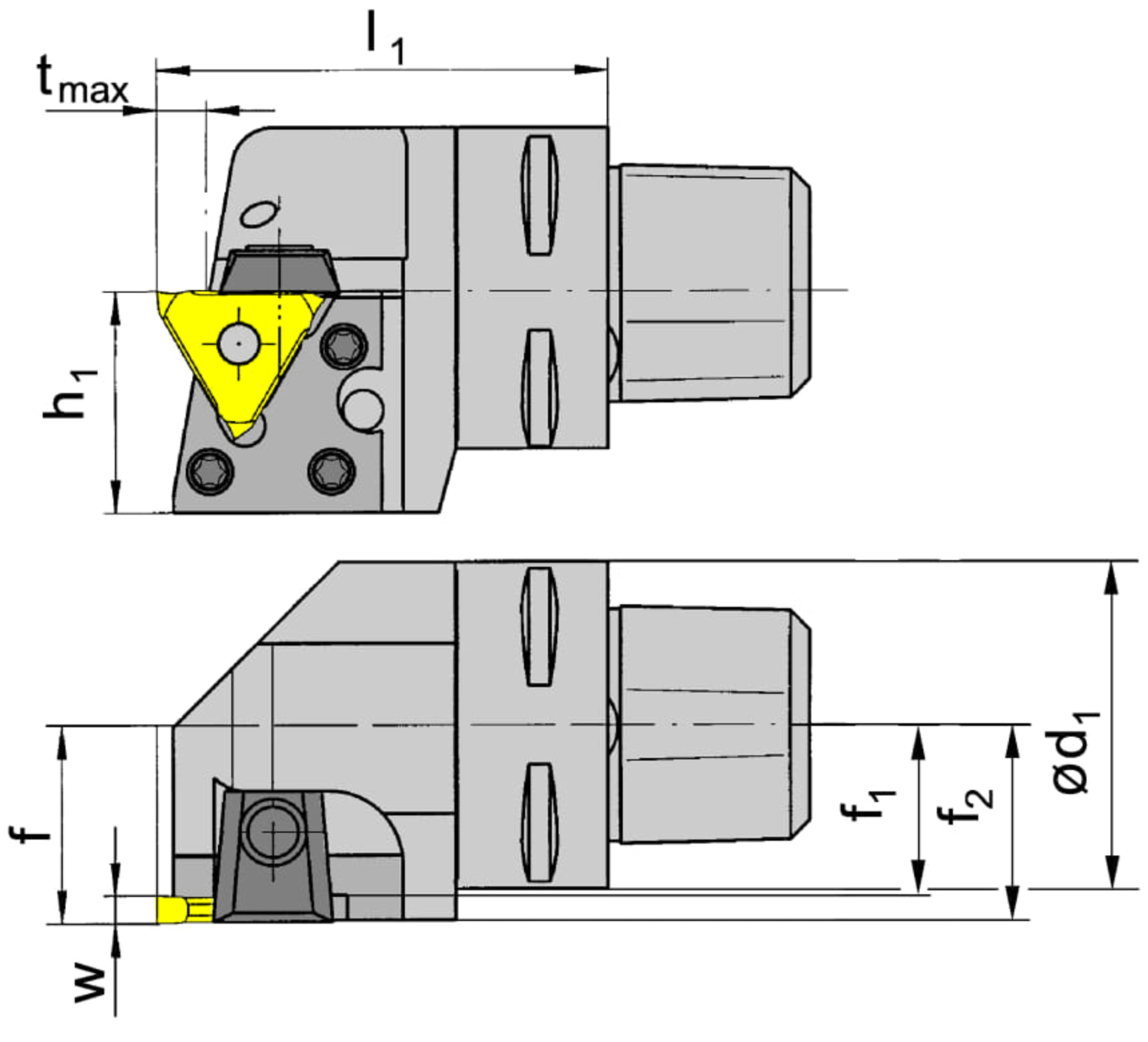

Adjustment dimension (formula) (f)

f1+w-a1

Peak height (h1)

27.3 mm

Cutting insert center from the middle (f1)

24.5 mm

Maximum depth of groove (tmax)

6 mm

Adjustment dimension from center (f2)

27 mm

Bore diameter rotate (d1)

40 mm
