LA109.1530.3.2 TI25
insert
Part number LA109153032TI25

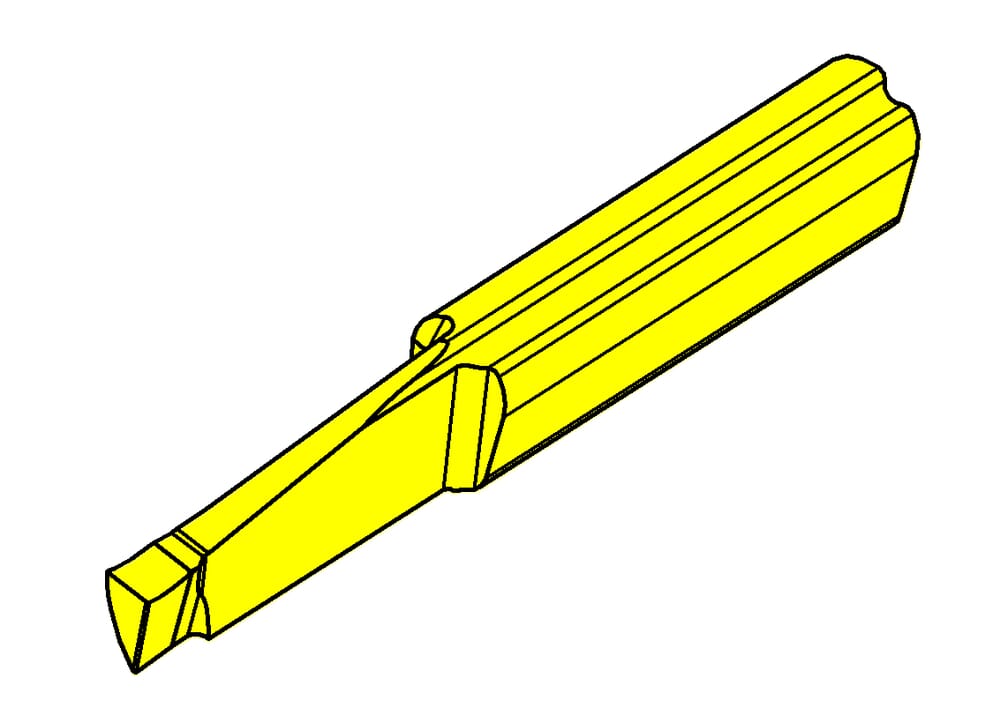

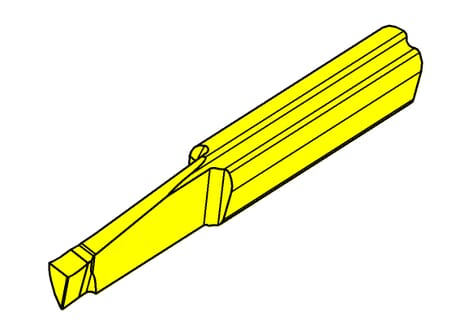

HORN insert LA109.1530.3.2 TI25 for Turning
Please note:Technical instructions

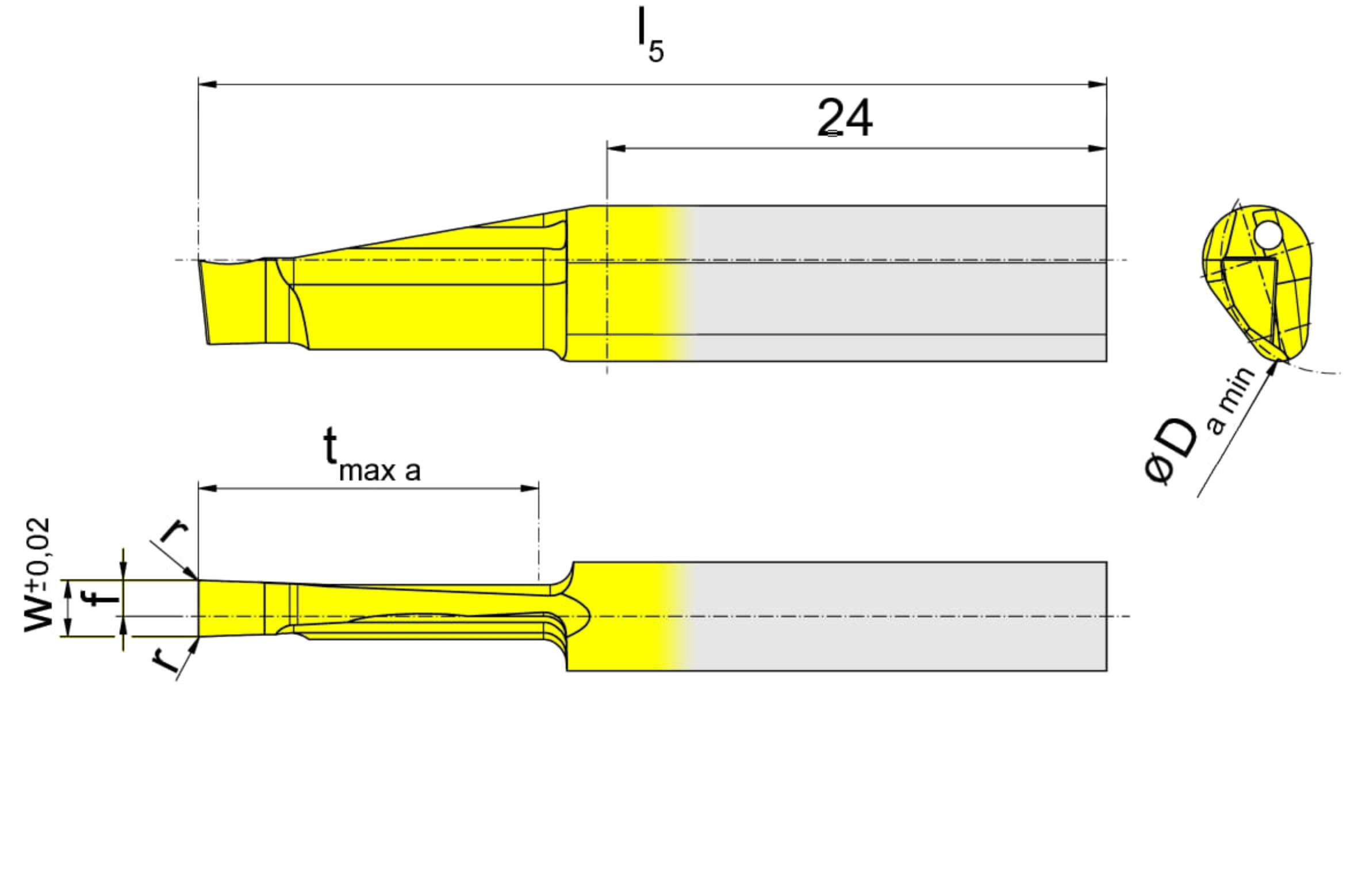

Maximum depth of groove (tmax a)
20
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN109240$95N$$$$$
DIN_SSC
HORN-10924095N
Katalog_SSC
109240
Width of groove (w)
3
mm
Setting range radial (f)
1.5
mm
Corner radius (r)
0.1
mm
Total length (l5)
48
mm
Smallest bore diameter (Da min)
15
mm
| Downloads | |
|---|---|
| LA109153032_20230113_084537460.STP | Download |
| LA109153032.DXF | Download |
| Download all files | |
