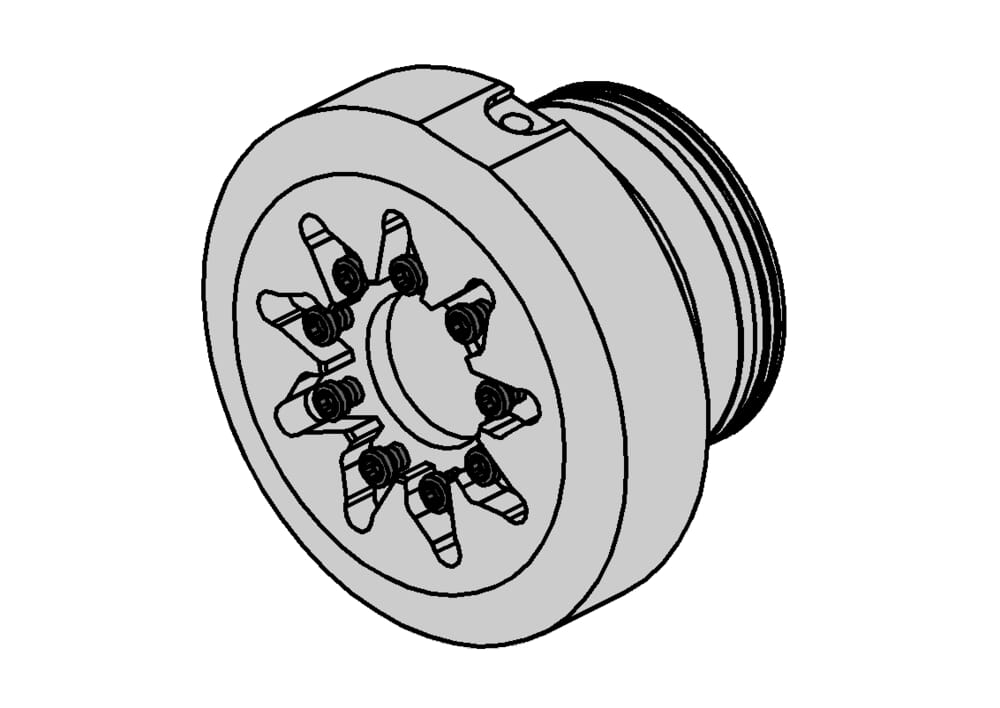

LM271.12.WF01.15.4.9.IK
whirling head
Part number LM27112WF011549IK
HORN whirling head LM271.12.WF01.15.4.9.IK for Gewinden
Please note:Technical instructions

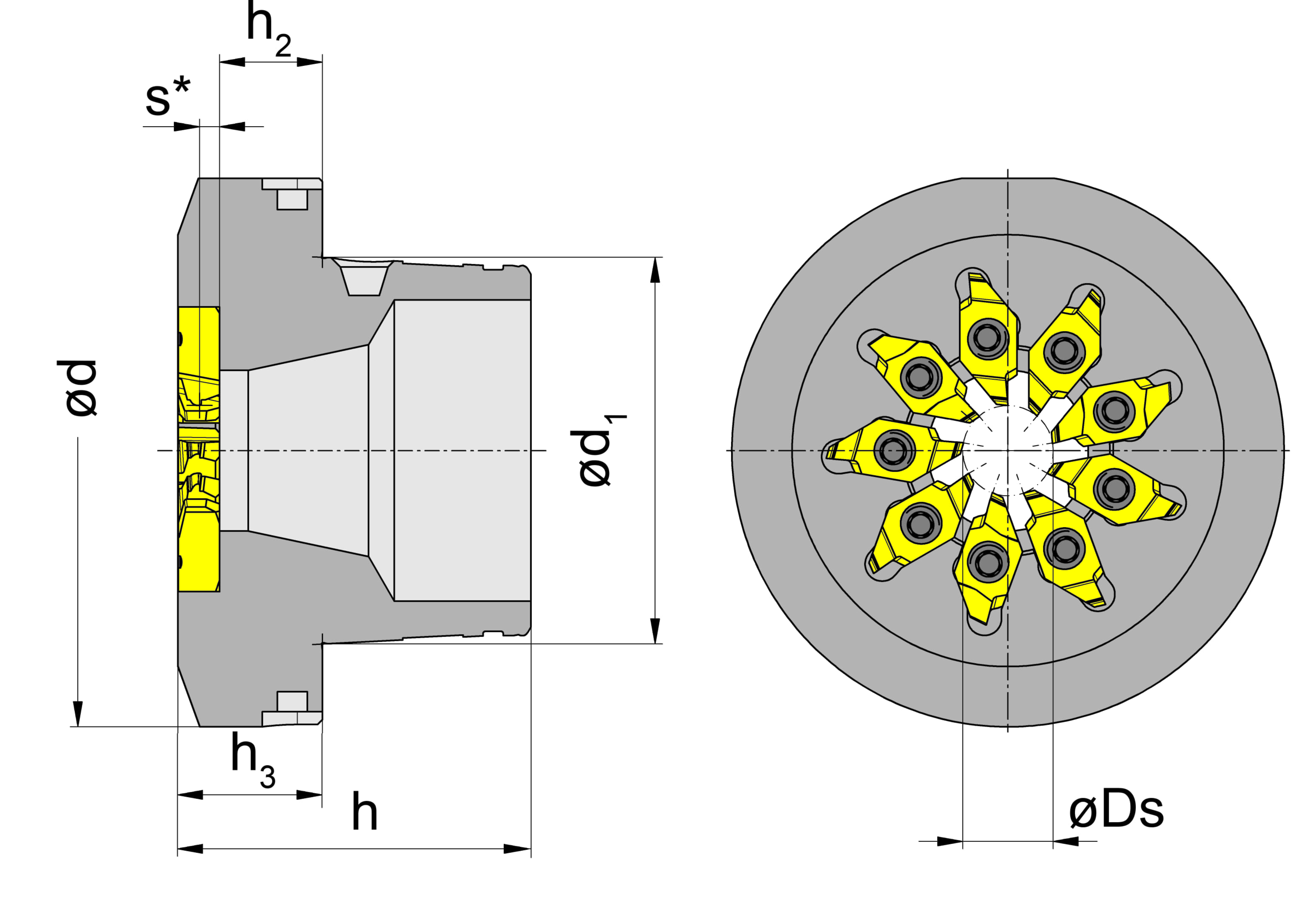

Cutting diameter (Ds)
12
mm
Number of teeth (Z)
9
St.
eclass-shortcut
21-18-15-90
Total hight (h)
35.15
mm
Centre of form (h2)
10.25
mm
Cassette adapter diameter (d)
55
mm
Effective hight (h3)
14.4
mm
Locking thread diameter (d1)
38,5
Plating seat size (Größe)
4
| Downloads | |
|---|---|
| LM27112WF011549IK_20240117_142449926.STP | Download |
| LM27112WF011549IK.DXF | Download |
| Download all files | |
