LM302.12.WF01.15.5.6.IK

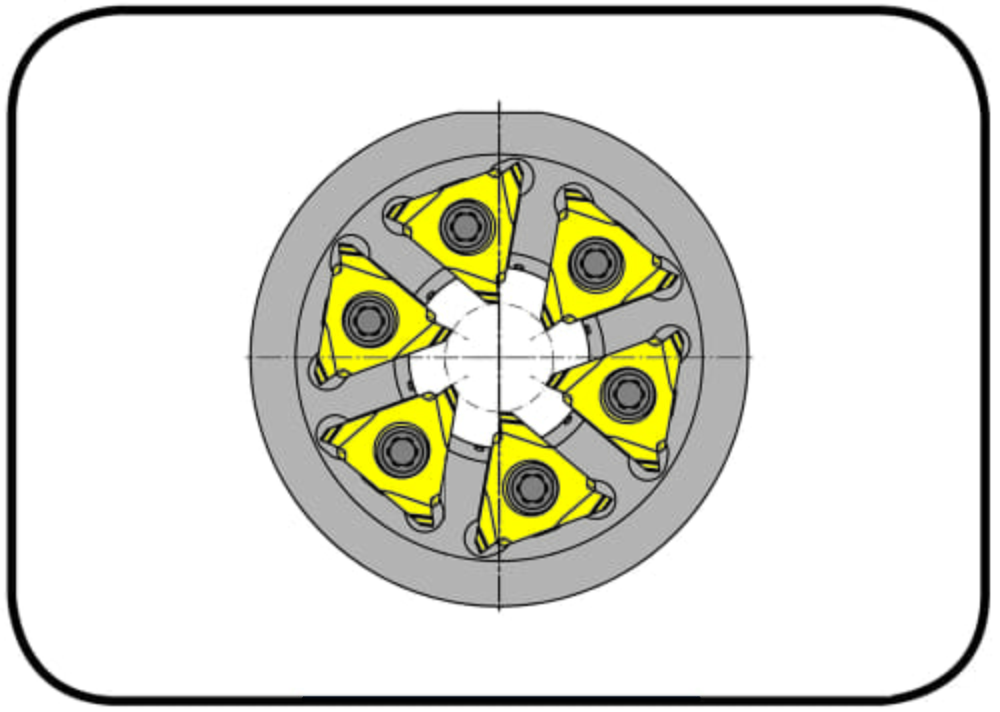

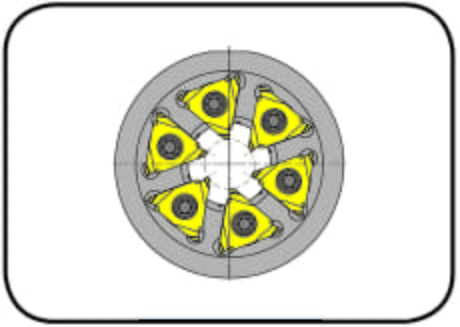

whirling head
Part number LM30212WF011556IK
HORN whirling head LM302.12.WF01.15.5.6.IK for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
12
mm
Number of teeth (Z)
6
St.
eclass-shortcut
21-18-15-90
Total hight (h)
35.15
mm
Centre of form (h2)
8.9
mm
Cassette adapter diameter (d)
55
mm
Effective hight (h3)
14.4
mm
Locking thread diameter (d1)
38,5
Plating seat size (Größe)
5
| Downloads | |
|---|---|
| LM30212WF011556IK_20240117_143703734.STP | Download |
| LM30212WF011556IK.DXF | Download |
| Download all files | |
