LNK100.0840.1.4.03.IK

Cartridge

Part number LNK10008401403IK

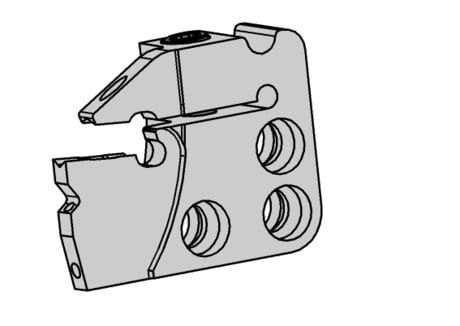

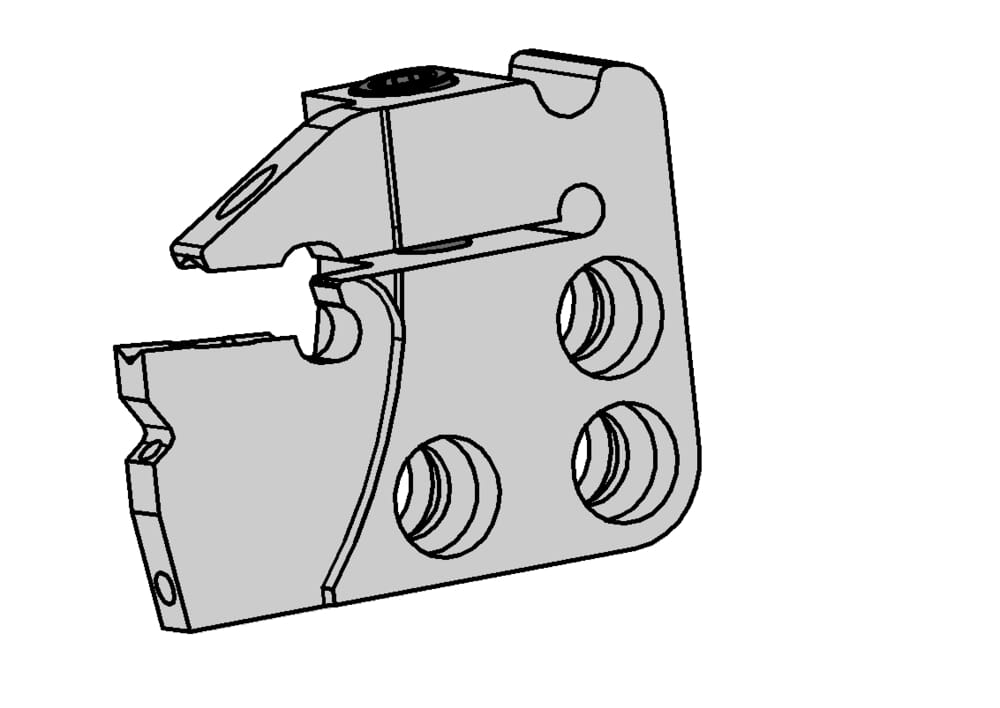

HORN Cartridge LNK100.0840.1.4.03.IK for Turning

Clamping range minimum (Spannbereich)

3 mm

Plating seat size (Größe)

Katalog_CCTMS

840002

ISO_CCTMS

HORN84000293$$

DIN_CCTMS

HORN-84000293

Katalog_CCTWS

100038

DIN_CCTWS

HORN-100030058N

ISO_CCTWS

HORN100030058N$$$$$

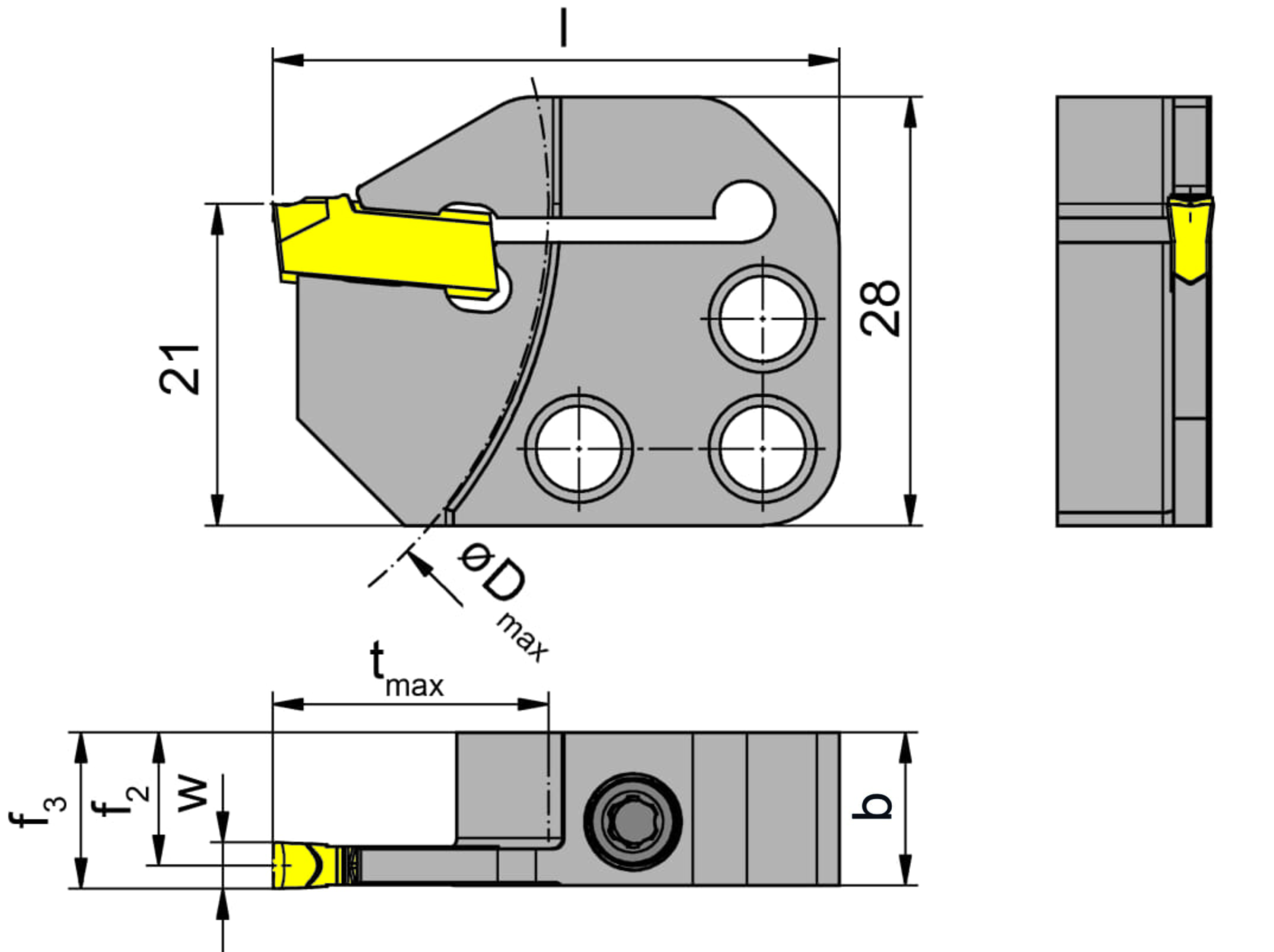

Adjustment dimension of system cassette formula (f3)

f2+ w/2

Clamping range maximum (Spannbereich)

3 mm

eclass-shortcut

21-18-10-04

Maximum workpiece diameter (Dmax)

65 mm

Maximum depth of groove (tmax)

18 mm

Cassette thickness (b)

10 mm

Total length (including cutting insert) (l)

37 mm

Adjustment dimension cutting center (f2)

8.7 mm
