LNK100.0845.Y.34.4.83.IK

Cartridge

Part number LNK1000845Y34483IK

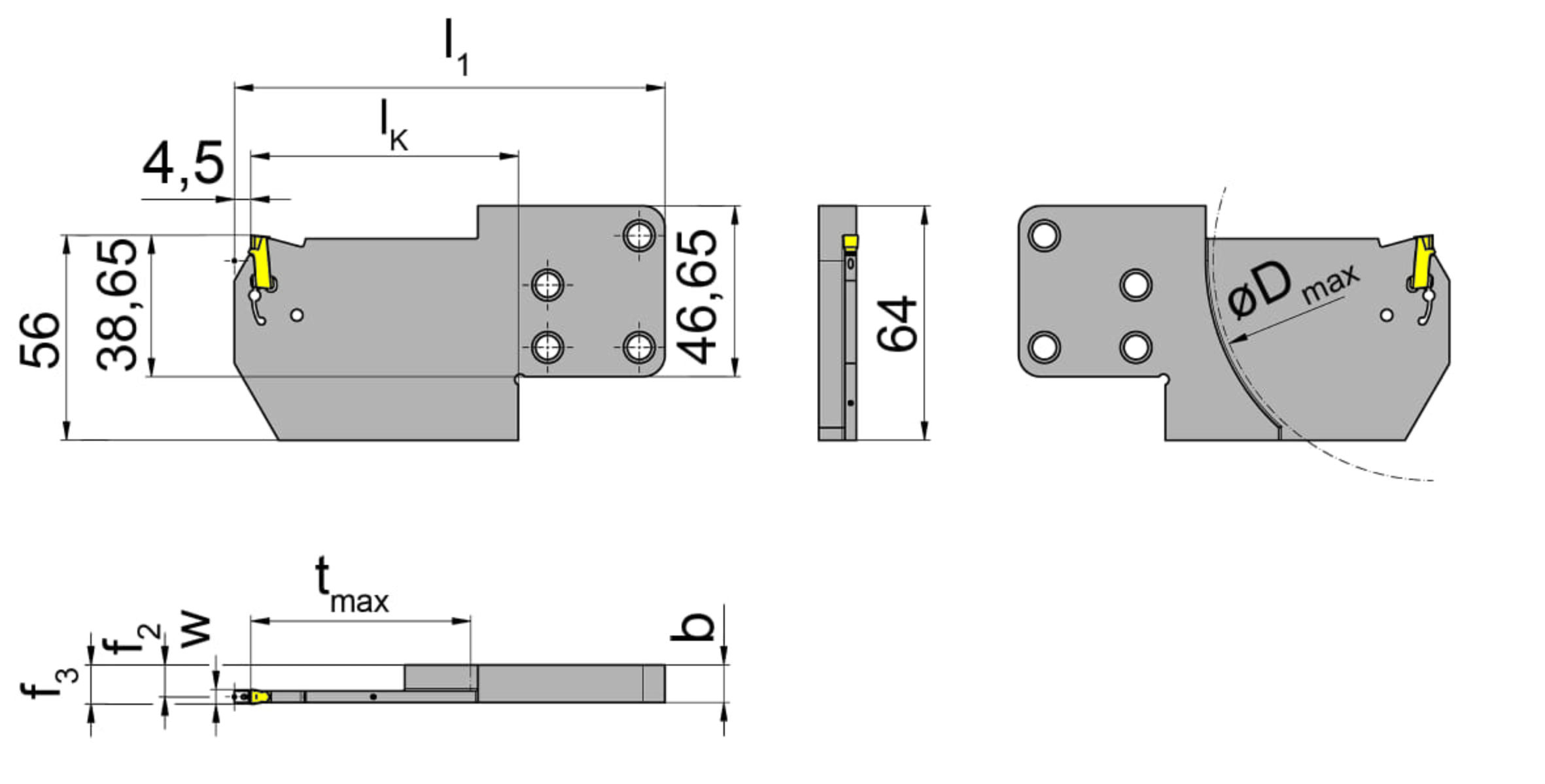

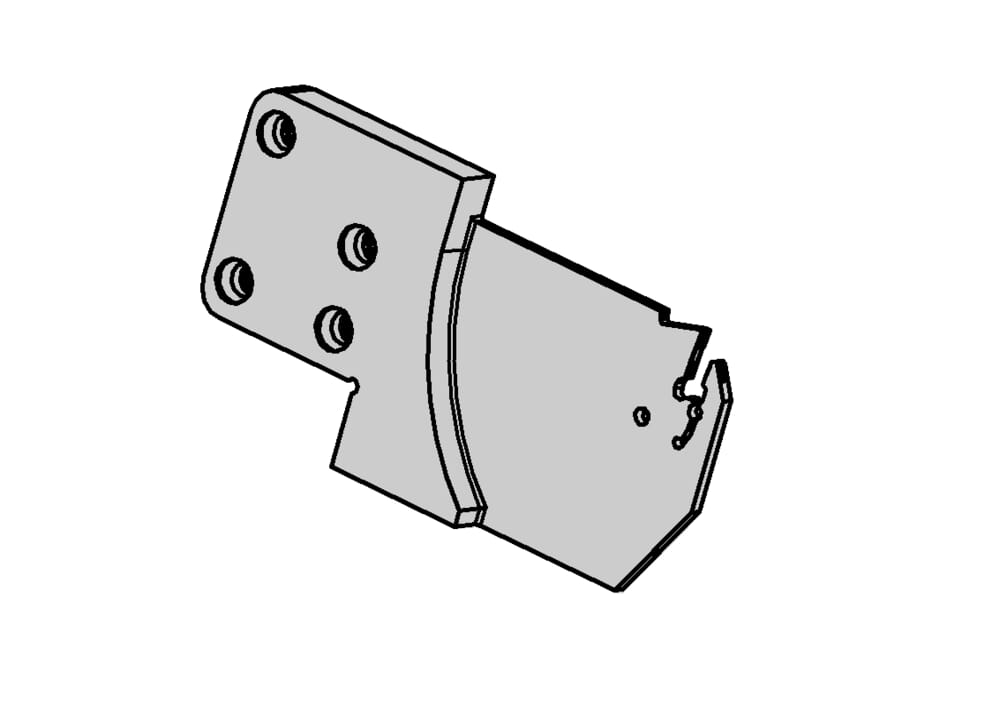

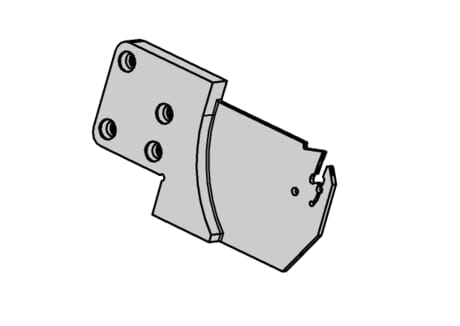

HORN Cartridge LNK100.0845.Y.34.4.83.IK for Turning

Width of groove (w)

3 mm

Katalog_CCTMS

845002;845001

ISO_CCTMS

HORN84500293$$;HORN84500193$$

DIN_CCTMS

HORN-84500293;HORN-84500193

Katalog_CCTWS

100038

DIN_CCTWS

HORN-100030058N

ISO_CCTWS

HORN100030058N$$$$$

Adjustment dimension of system cassette formula (f3)

f2+w/2

eclass-shortcut

21-18-15-90

Maximum workpiece diameter (Dmax)

68 mm

Maximum depth of groove (tmax)

34 mm

Length of unit cassette to cutting edge (lK)

46 mm

Cassette thickness (b)

10.25 mm

Total length (including cutting insert) (l1)

90.5 mm

Adjustment dimension cutting center (f2)

8.7 mm
