LS114.0200.D2 TN35

Insert

Part number LS1140200D2TN35

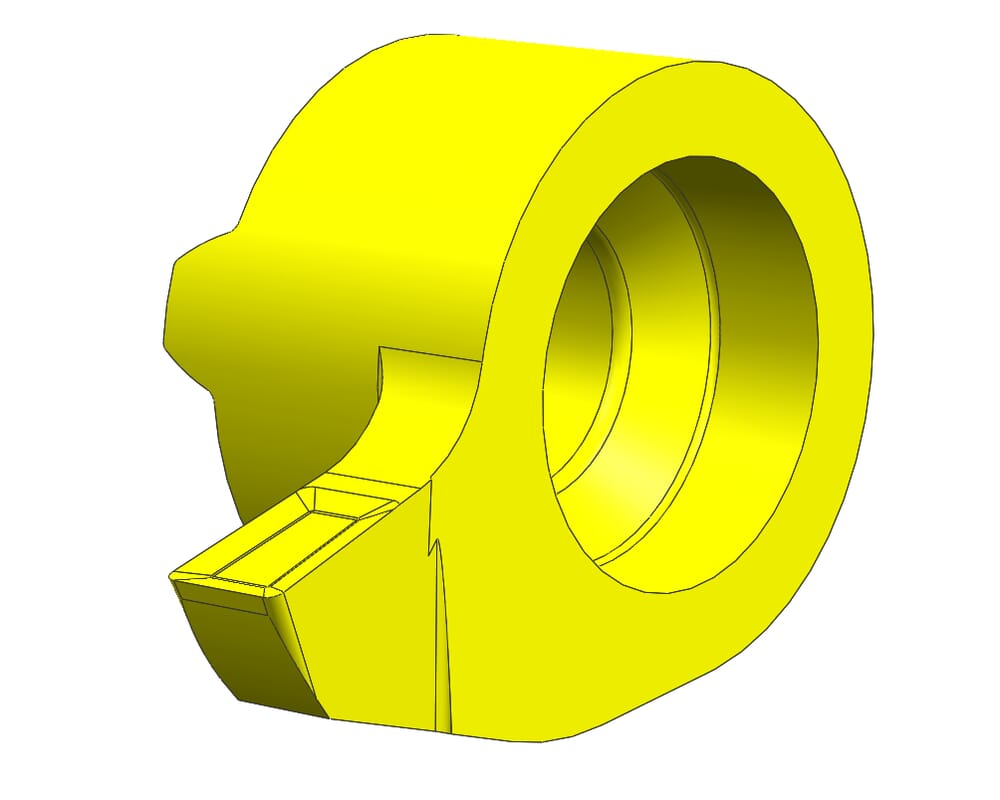

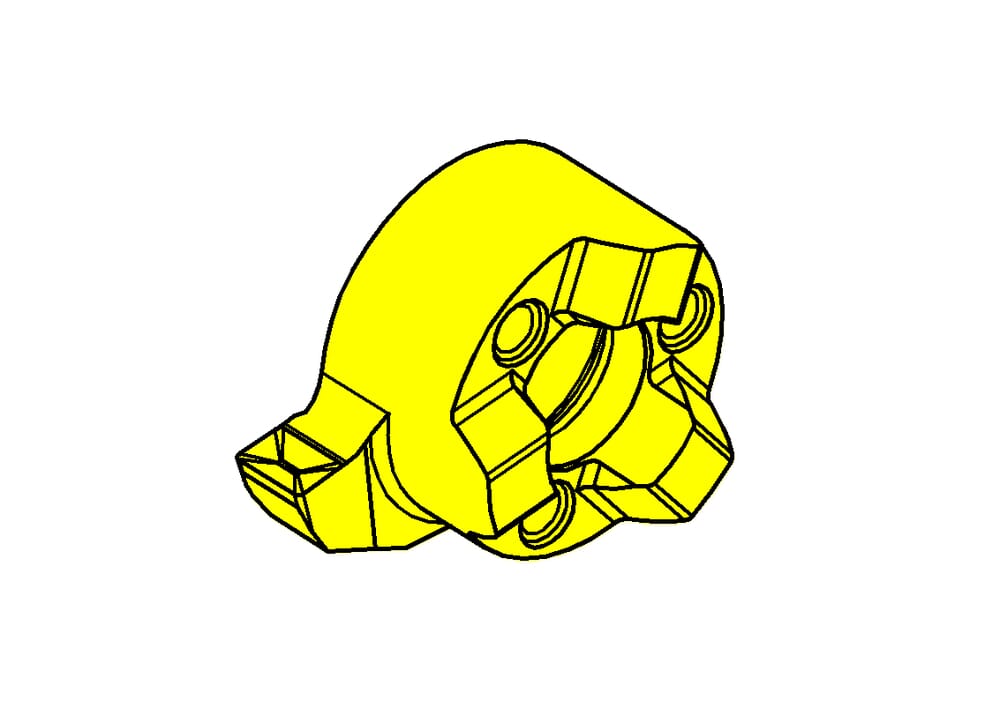

HORN Insert LS114.0200.D2 TN35 for Turning

ISO_SSC

HORN114090$84L$$$$$

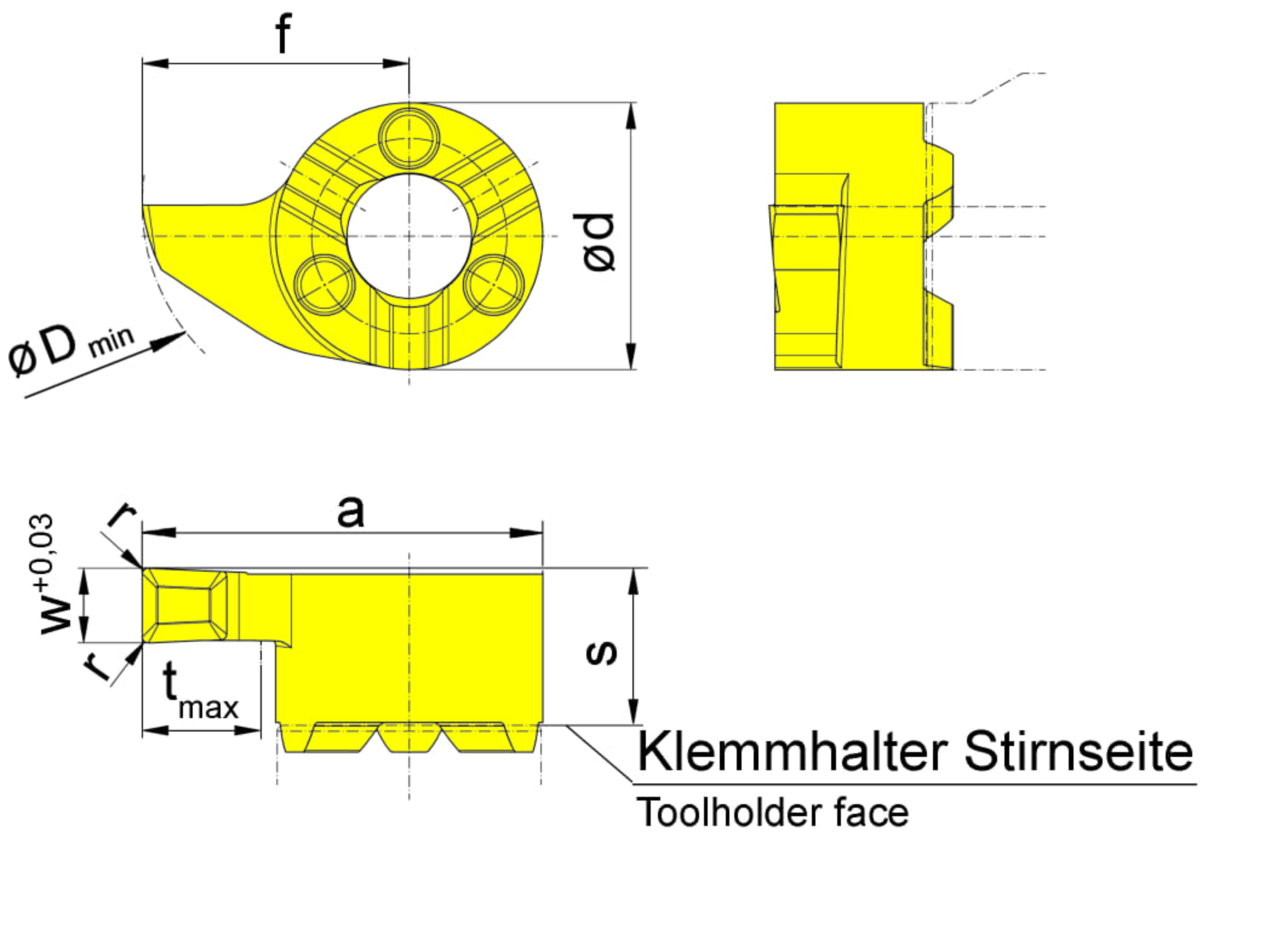

Smallest bore diameter (Dmin)

14 mm

Cutting insert height, Cutting insert thickness (s)

5.3 mm

Corner radius (r)

0.2 mm

Tooth diameter, head diameter (d)

9 mm

Setting range radial (f)

9 mm

Width of groove (w)

2 mm

Katalog_SSC

114090L

DIN_SSC

HORN-11409084L

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

4 mm

Head size (a)

13.5 mm
