LS224.1220.02 TF45
Insert
Part number LS224122002TF45

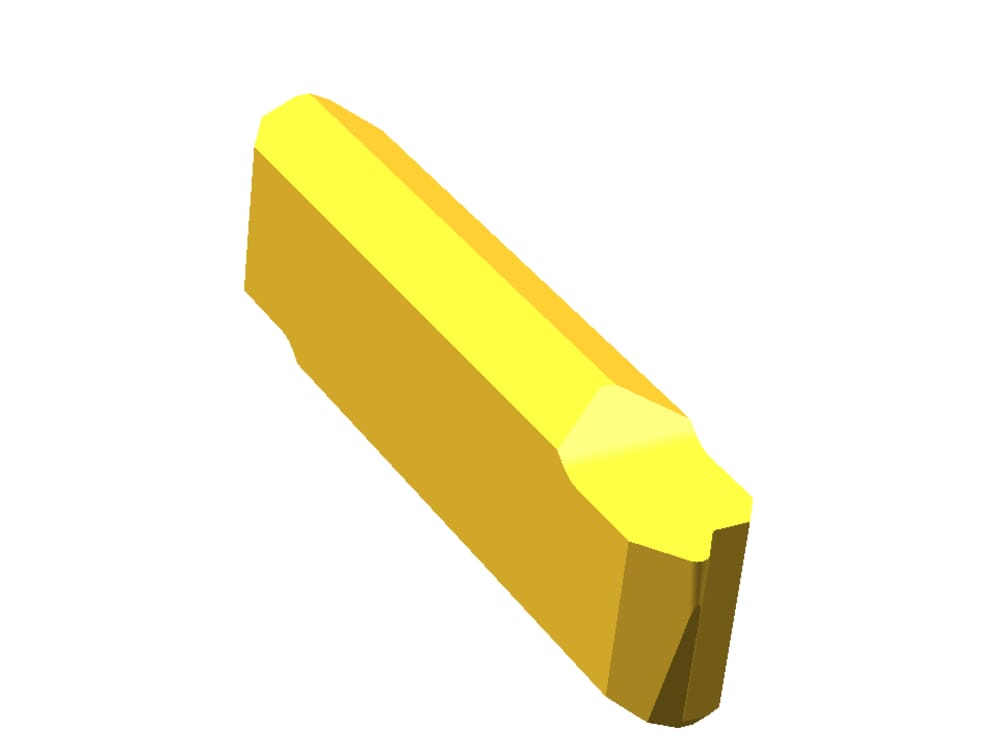

HORN Insert LS224.1220.02 TF45 for Gewinden
Please note:Technical instructions
number-of-teeth
2
St.
Top radius (r)
0.25
mm
Profile, thread depth (h1)
1.23
mm
eclass-shortcut
21-18-20-04
ISO_SSC
HORN224030058N$$$$$
DIN_SSC
HORN-224030058N
Katalog_SSC
224038
Plating seat size (Größe)
3
Setting length (E)
0.3
mm
Pitch (P)
2
mm
| Downloads | |
|---|---|
| LS224_1220_02.STP | Download |
| LS224122002.DXF | Download |
| Download all files | |
