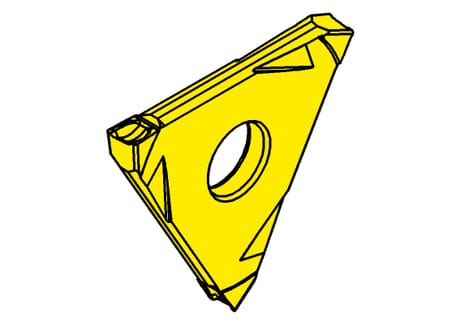

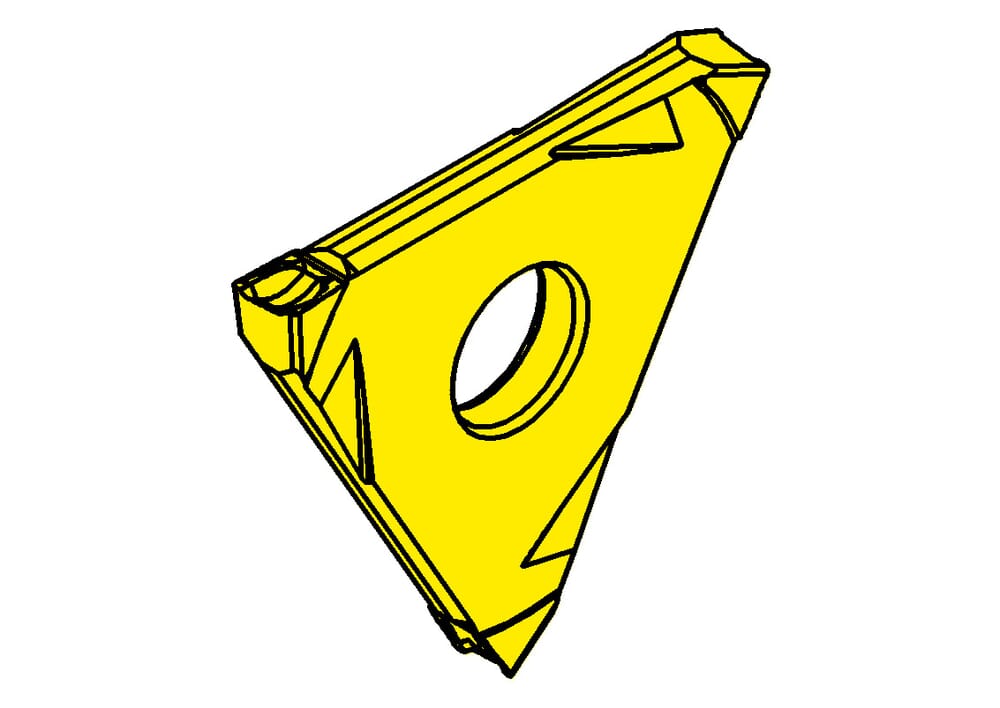

LS312.0520.C2 TF46
Inserts
Part number LS3120520C2TF46
HORN Inserts LS312.0520.C2 TF46 for Turning
Please note:Technical instructions
Cancellation (a1)
0.25 mm
Parting-off chamfer (α)
5 °
ISO_SSC
HORN-31202$000N$$$$$
Katalog_SSC
31202N
Plating seat size (Größe)
2
Width of groove (w)
2 mm
Corner radius (r)
0.2 mm
eclass-shortcut
21-18-20-01
| Downloads | |
|---|---|
| LS312_0520_C2_TF46-DXF.DXF | Download |
| LS312_0520_C2_TF46-STP.STP | Download |
| LS312_0520_C2_TF46-ISO.XML | Download |
| LS312_0520_C2_TF46-DIN.XML | Download |
| Download all files | |
