LS316.0250.FY2 TI25
Insert
Part number LS3160250FY2TI25

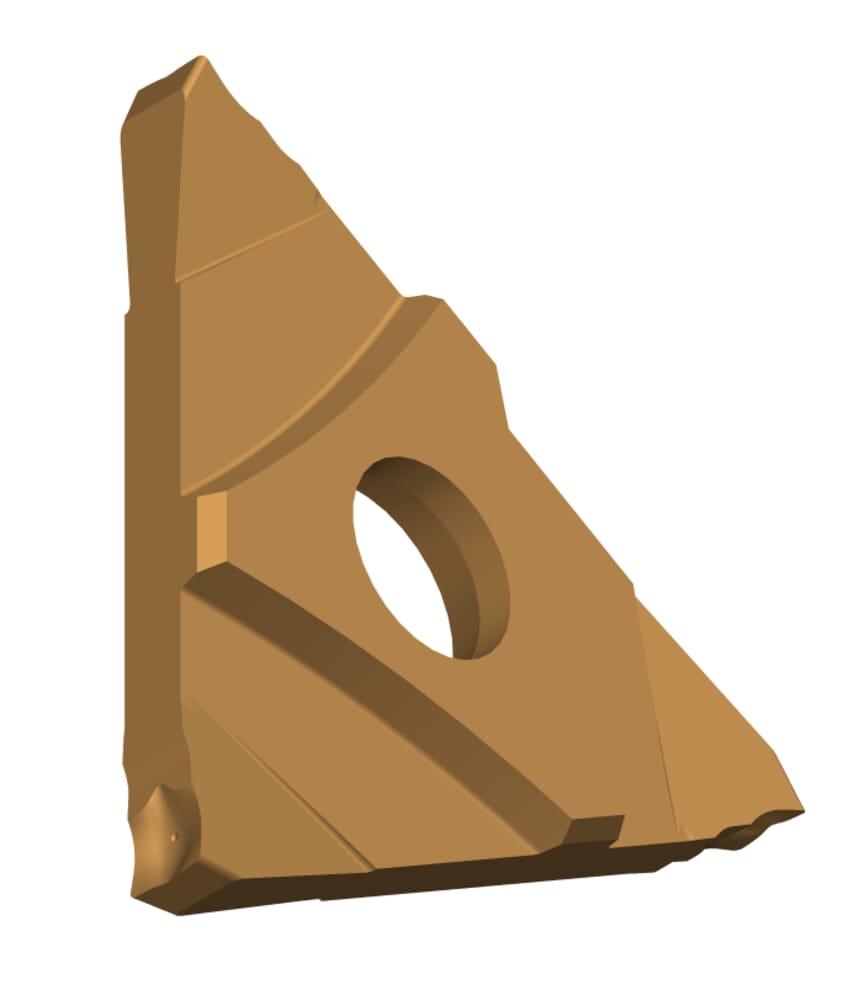

HORN Insert LS316.0250.FY2 TI25 for Turning
Please note:Technical instructions
Maximum depth of groove (tmax)
8
mm
eclass-shortcut
21-18-20-01
ISO_SSC
HORNS31603$000L$$$$$
DIN_SSC
HORN-S31603000L
Katalog_SSC
S31603L
Plating seat size (Größe)
3
Width of groove (w)
2.5
mm
Cutting insert width (s)
3.5
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| LS3160250FY2_20240117_024424279.STP | Download |
| LS3160250FY2_20210628_153027471.DXF | Download |
| Download all files | |
