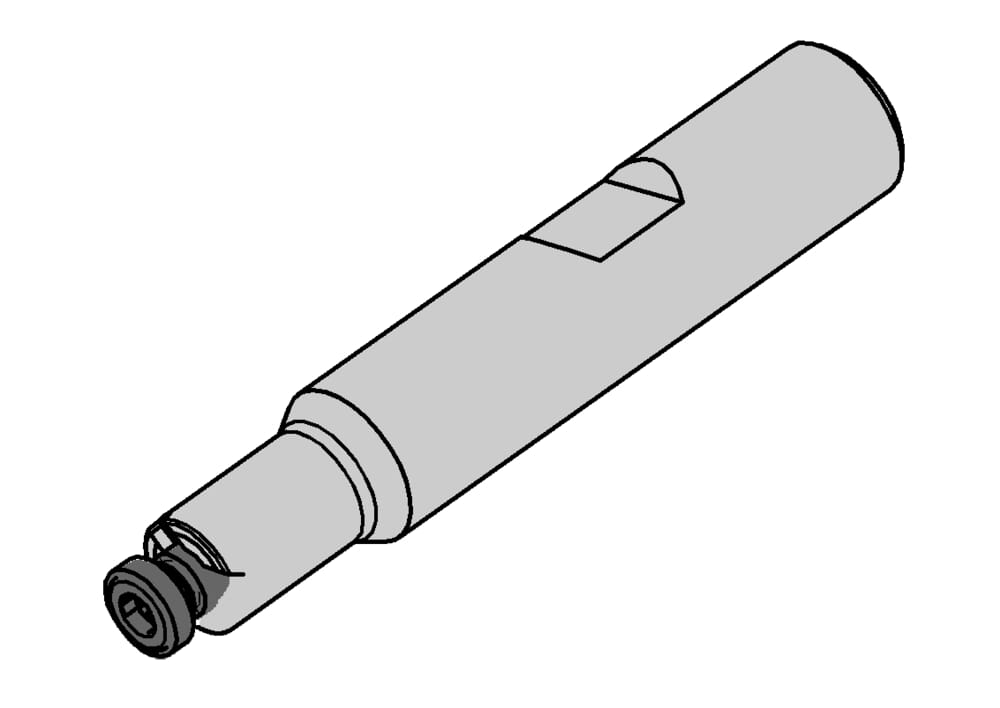

M308.ST10.01B
Toolholder
Part number M308ST1001B

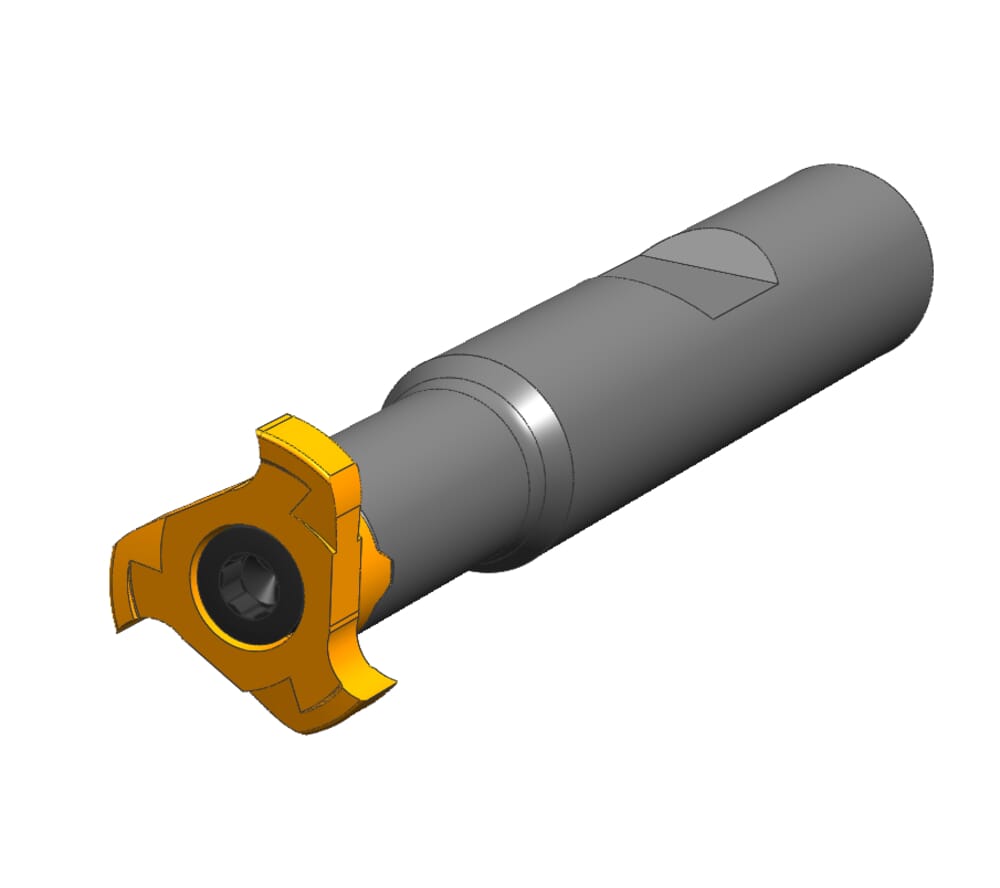

HORN Toolholder M308.ST10.01B for Milling
Please note:Technical instructions
DIN_CCTWS
HORN30808084R;HORN30808084L
Form (Form)
HB

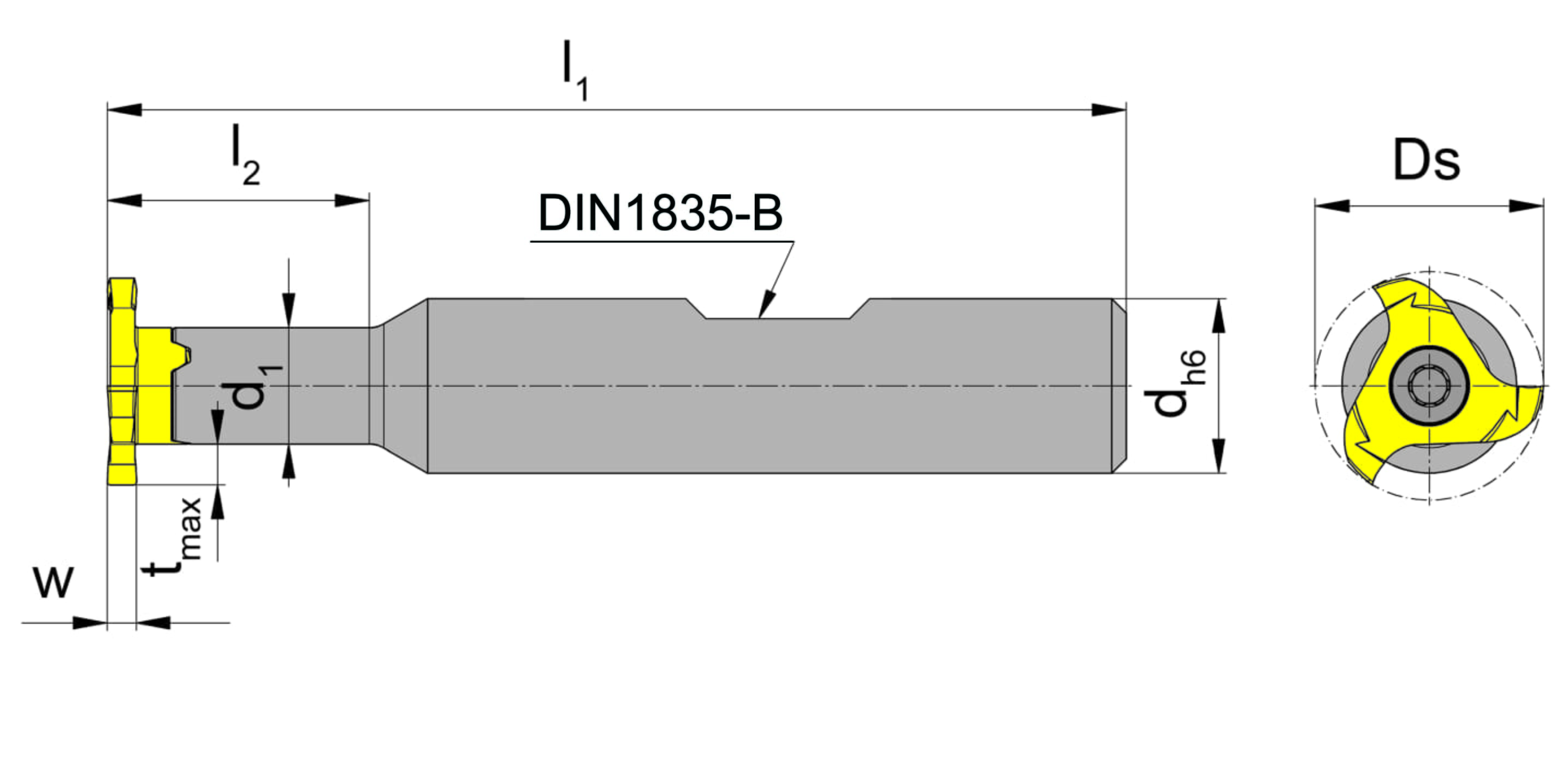

Working length, Neck length, Extension length (l2)
18
mm
Total length insert (l1)
60
mm
Cone diameter (d)
10
mm
Neck diameter (d1)
8
mm
ISO_CCTMS
ZYL10G1200h$06
DIN_CCTMS
ZYL01001005
Katalog_CCTWS
308080R;308080L
ISO_CCTWS
HORN308080$84R$$$$$;HORN308080$84L$$$$$
eclass-shortcut
21-18-08-90
Shank diameter (d)
10
mm
| Downloads | |
|---|---|
| M308_ST10_01B_20171121_183501603.STP | Download |
| M308ST1001B_20210628_164117061.DXF | Download |
| Download all files | |
