M311.0012.01E
Toolholders
Part number M311001201E
HORN Toolholders M311.0012.01E for Milling
Please note:Technical instructions
Katalog_CCTWS
311090R
eclass-shortcut
21-18-08-90
Form (Form)
HE

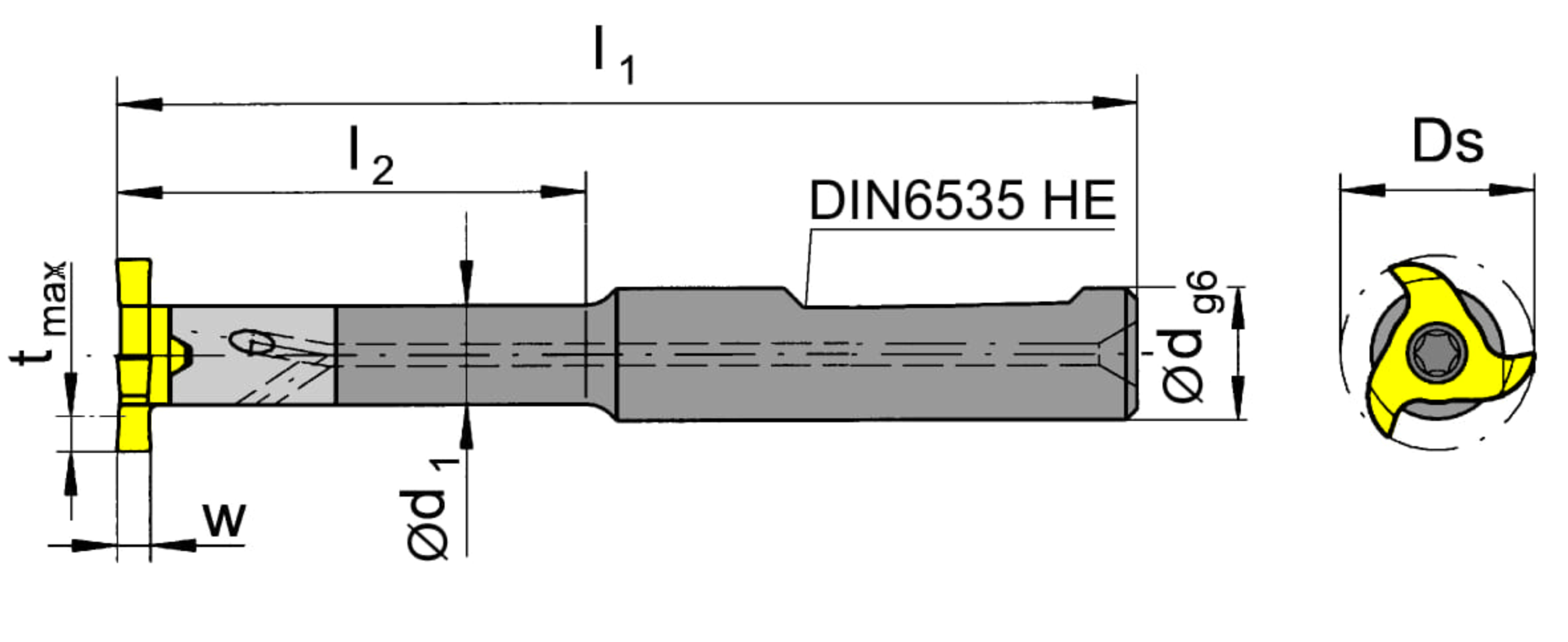

Working length, Neck length, Extension length (l2)
32 mm
Total length insert (l1)
100 mm
Neck diameter (d1)
9 mm
ISO_CCTMS
ZYL13G1200h$06
DIN_CCTMS
ZYL01205315
DIN_CCTWS
HORN31109084R
ISO_CCTWS
HORN311090$84R$$$$$
Shank diameter (d)
12 mm
| Downloads | |
|---|---|
| M311_0012_01E-DXF.DXF | Download |
| M311_0012_01E-STP.STP | Download |
| M311_0012_01E-ISO.XML | Download |
| M311_0012_01E-DIN.XML | Download |
| Download all files | |
