M313.ST10.01A
Toolholders
Part number M313ST1001A

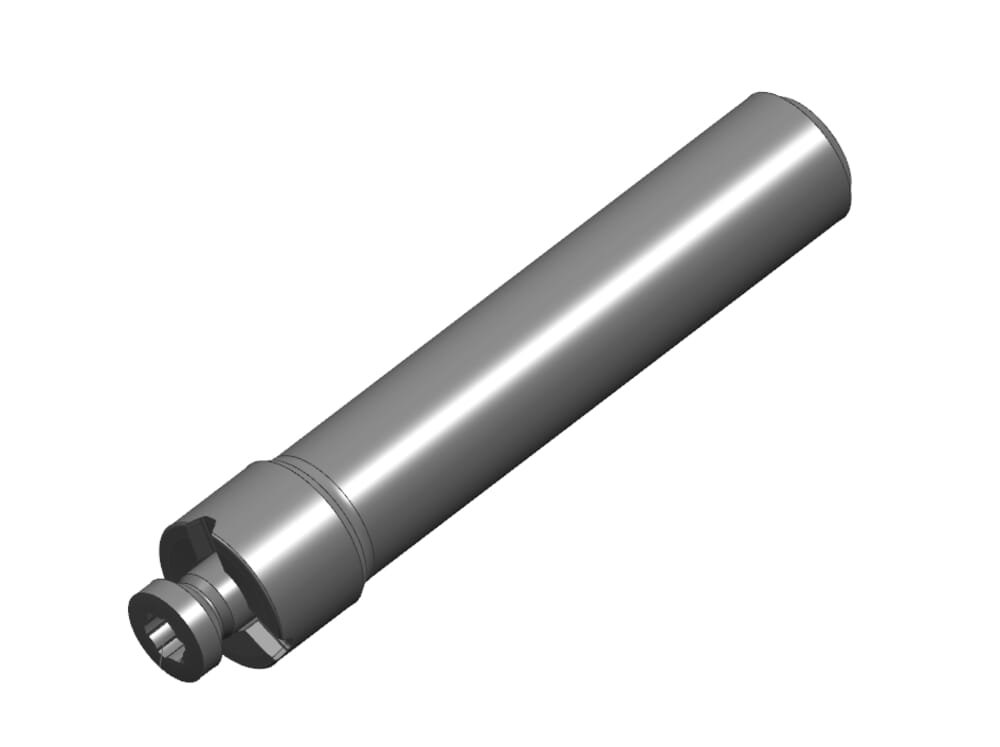

HORN Toolholders M313.ST10.01A for Milling
Please note:Technical instructions
ISO_CCTWS
HORN313113$84R$$$$$;HORN313113$84L$$$$$
Form (Form)
A1
Total length insert (l1)
60
mm
cone-diameter-met
10
mm
Neck diameter (d1)
11.3
mm
ISO_CCTMS
ZYL01G1000h$06
DIN_CCTMS
ZYL01000105
Katalog_CCTWS
313113R;313113L
DIN_CCTWS
HORN31311384R;HORN-31311384L
eclass-shortcut
21-18-08-90
Shank diameter (d)
10
mm
| Downloads | |
|---|---|
| M313_ST10_01A_20171121_195020886.STP | Download |
| M313ST1001A_20210628_171010835.DXF | Download |
| Download all files | |
