M328.ST16.01A

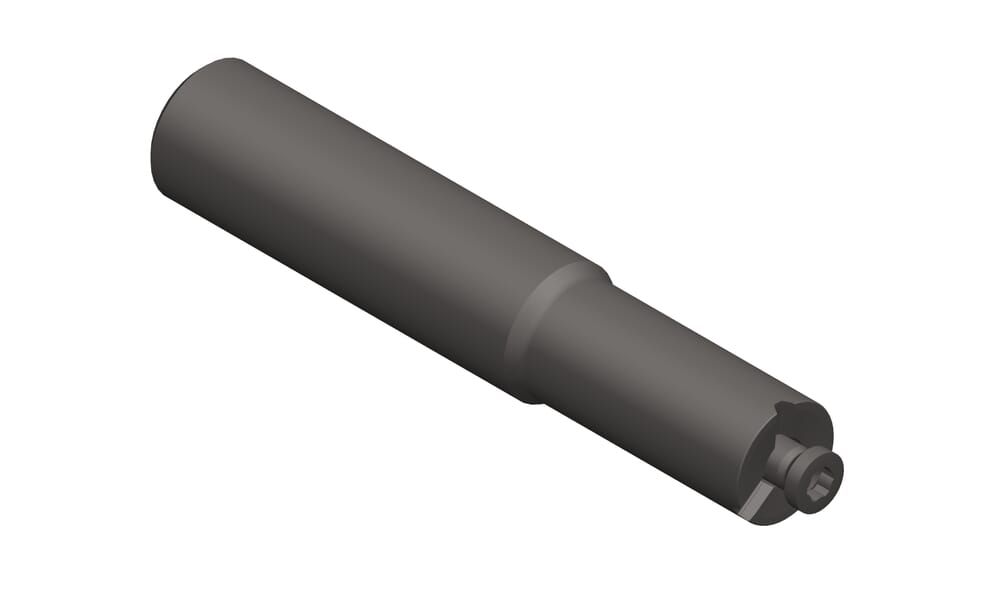

Milling cutter shank
Part number M328ST1601A
HORN Milling cutter shank M328.ST16.01A for Milling
Please note:Technical instructions
DIN_CCTWS
HORN32814384R
Form (Form)
A2
Working length, Neck length, Extension length (l2)
36
mm
Total length insert (l1)
90
mm
Cone diameter (d)
16
mm
Neck diameter (d1)
14
mm
ISO_CCTMS
ZYL01G1600h$06
DIN_CCTMS
ZYL01600105
Katalog_CCTWS
328143R
ISO_CCTWS
HORN328143$84R$$$$$
eclass-shortcut
21-18-08-90
Shank diameter (d)
16
mm
| Downloads | |
|---|---|
| M328_ST16_01A_20171121_212030609.STP | Download |
| M328ST1601A_20210628_175520518.DXF | Download |
| Download all files | |
