N849.0117R.16.M0
Toolholder
Part number N8490117R16M0

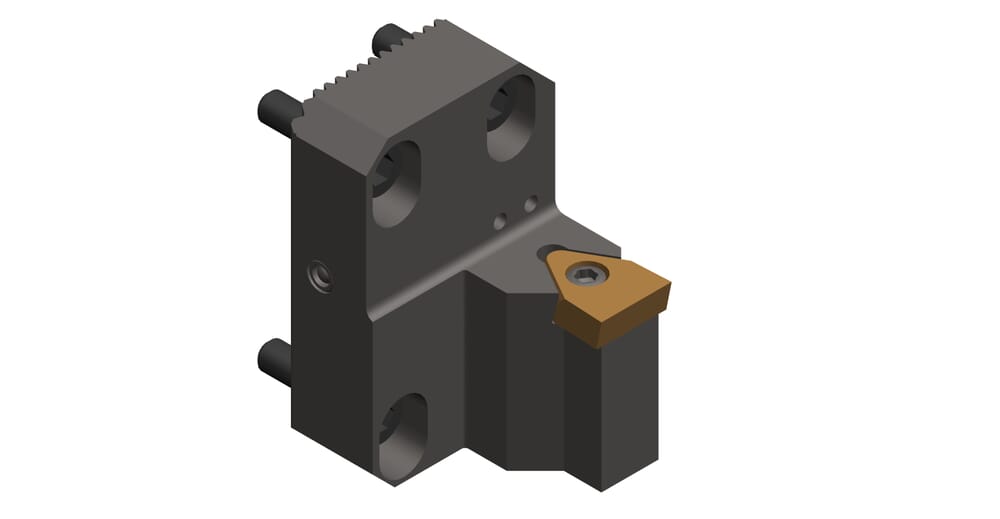

HORN Toolholder N849.0117R.16.M0 for Turning
Please note:Technical instructions
Width (b)
43
mm
Adjustment dimension from center (f)
22
mm
Total length with cutting edge (l1)
45
mm
Height (h)
68
mm
eclass-shortcut
21-02-90-90
ISO_CCTWS
HORN117161050N$$$$$
DIN_CCTWS
HORN-117161050N
Katalog_CCTWS
1171605
Katalog_CCTMS
Schütte
| Downloads | |
|---|---|
| N8490117R16M0_20240117_053743401.STP | Download |
| N8490117R16M0_20210629_174113690.DXF | Download |
| Download all files | |
