N849.0117R.20.M0

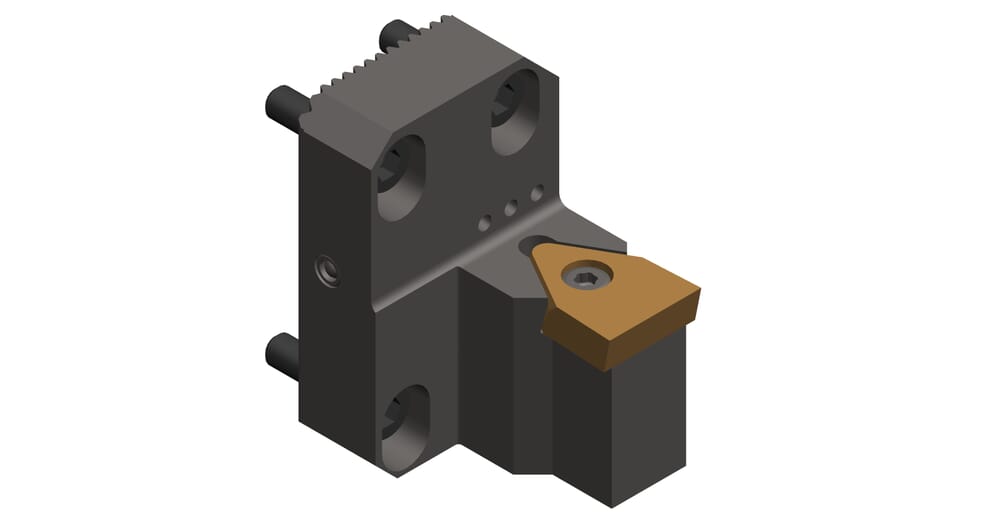

Toolholder
Part number N8490117R20M0
HORN Toolholder N849.0117R.20.M0 for Turning
Please note:Technical instructions
Width (b)
43
mm
Adjustment dimension from center (f)
22.5
mm
Total length with cutting edge (l1)
50
mm
Height (h)
68
mm
eclass-shortcut
21-02-90-90
ISO_CCTWS
HORN117201050N$$$$$
DIN_CCTWS
HORN-117201050N
Katalog_CCTWS
1172005
Katalog_CCTMS
Schütte
| Downloads | |
|---|---|
| N8490117R20M0_20240117_053825074.STP | Download |
| N8490117R20M0_20210629_174010016.DXF | Download |
| Download all files | |
