R105.0815.4.7 TN35
insert
Part number R105081547TN35

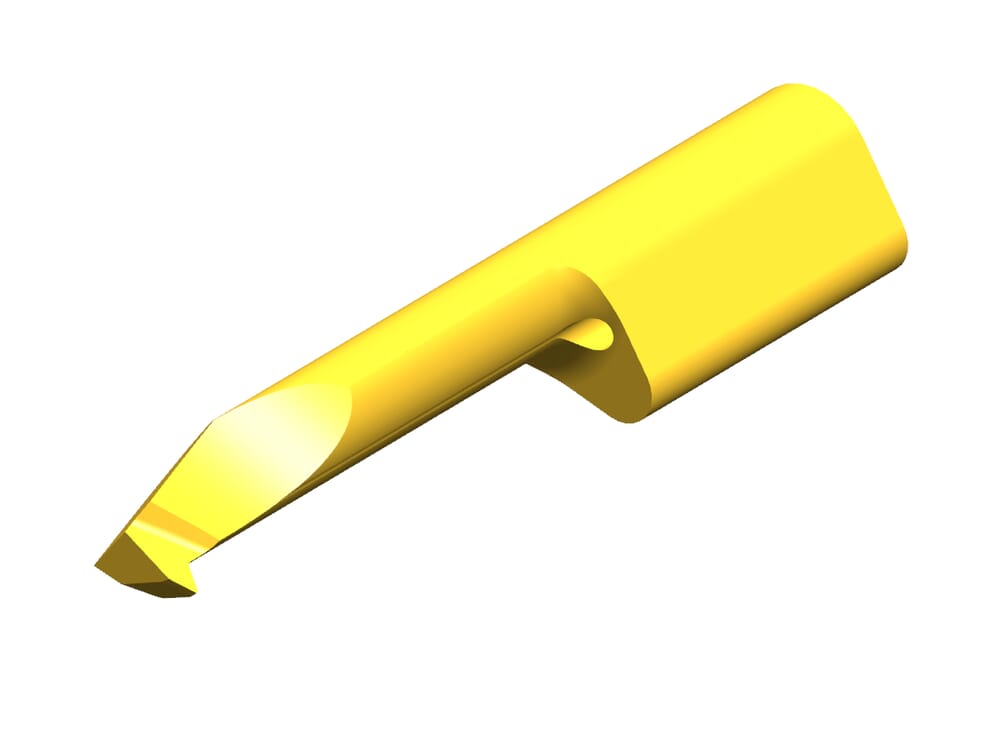

HORN insert R105.0815.4.7 TN35 for Gewinden
Please note:Technical instructions

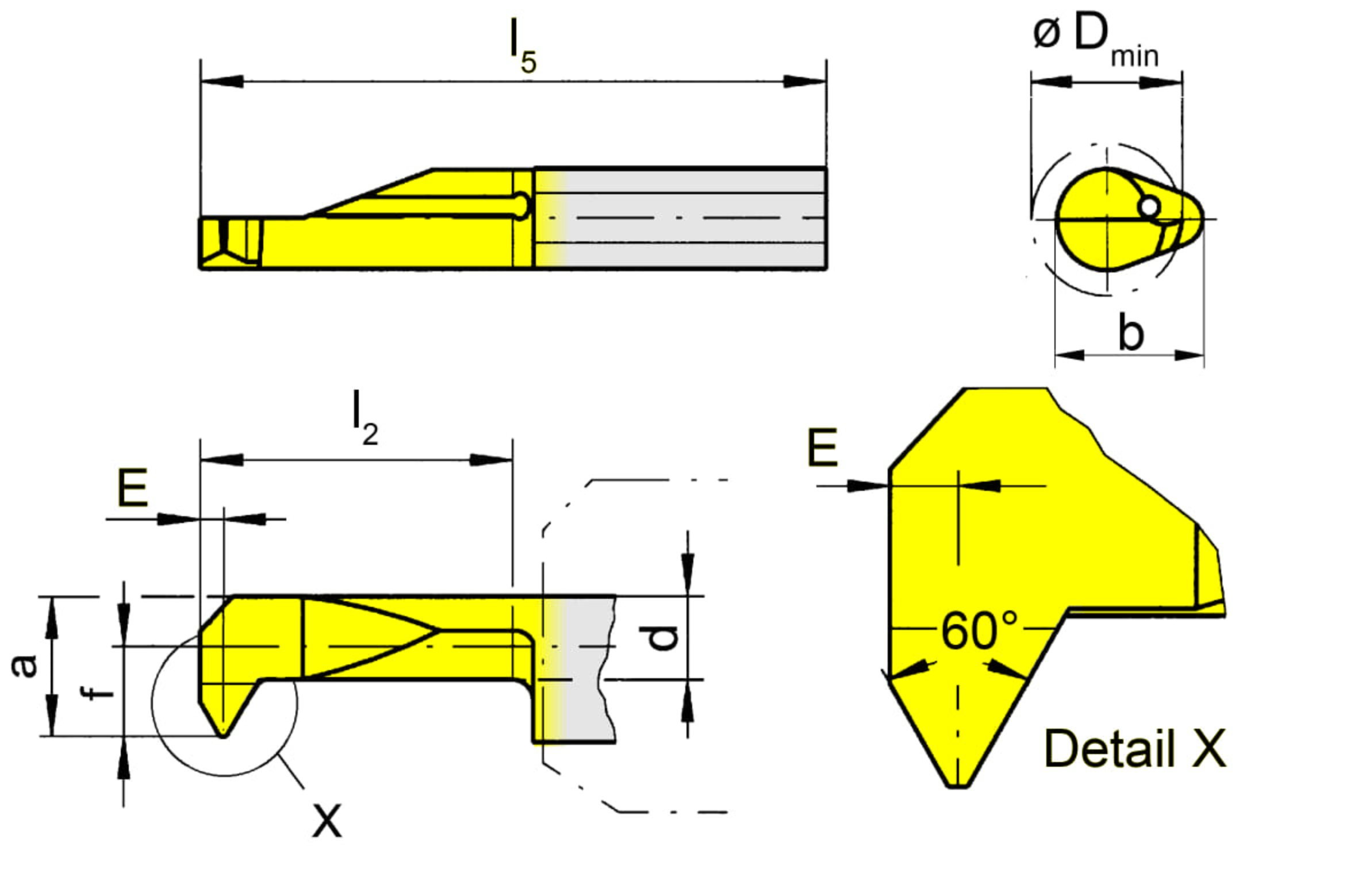

Maximum pitch (Pmax)
1.5
mm
Pitch (P)
1.5
mm
Smallest bore diameter (Dmin)
7
mm
Setting length (E)
0.75
mm
Cutting insert width (a)
6.4
mm
Setting range radial (f)
4
mm
Neck diameter (d)
3.7
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7
mm
eclass-shortcut
21-18-20-11
Cutting insert total length (l5)
40
mm
number-of-teeth
1
St.
Neck length (l2)
25
mm
