R108.MDM0.08 MD10
Insert
Part number R108MDM008MD10

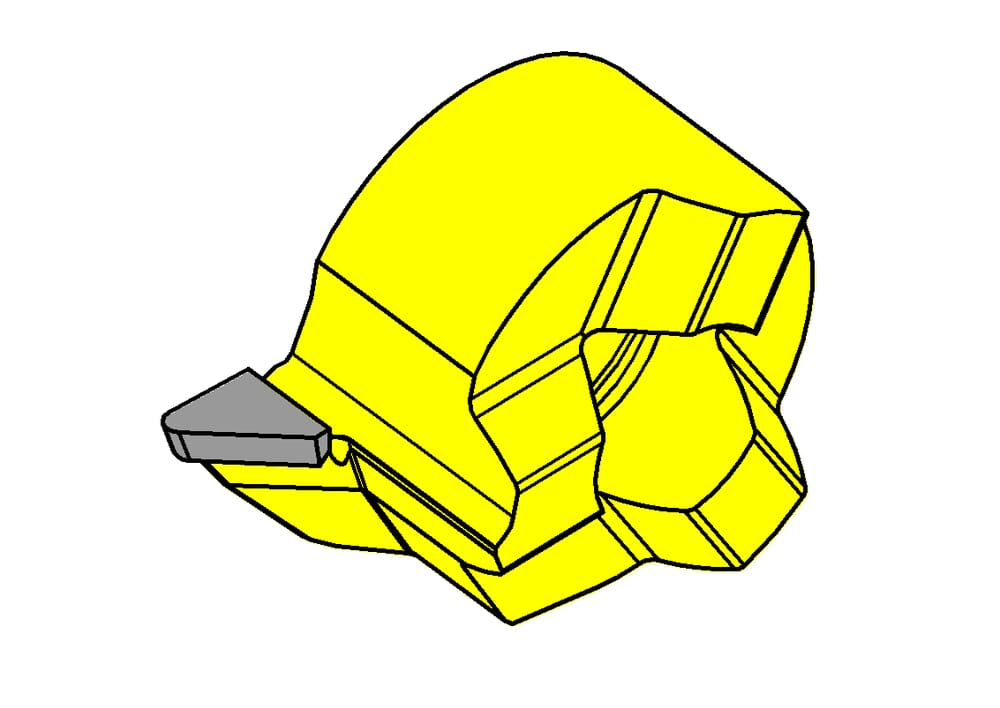

HORN Insert R108.MDM0.08 MD10 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11

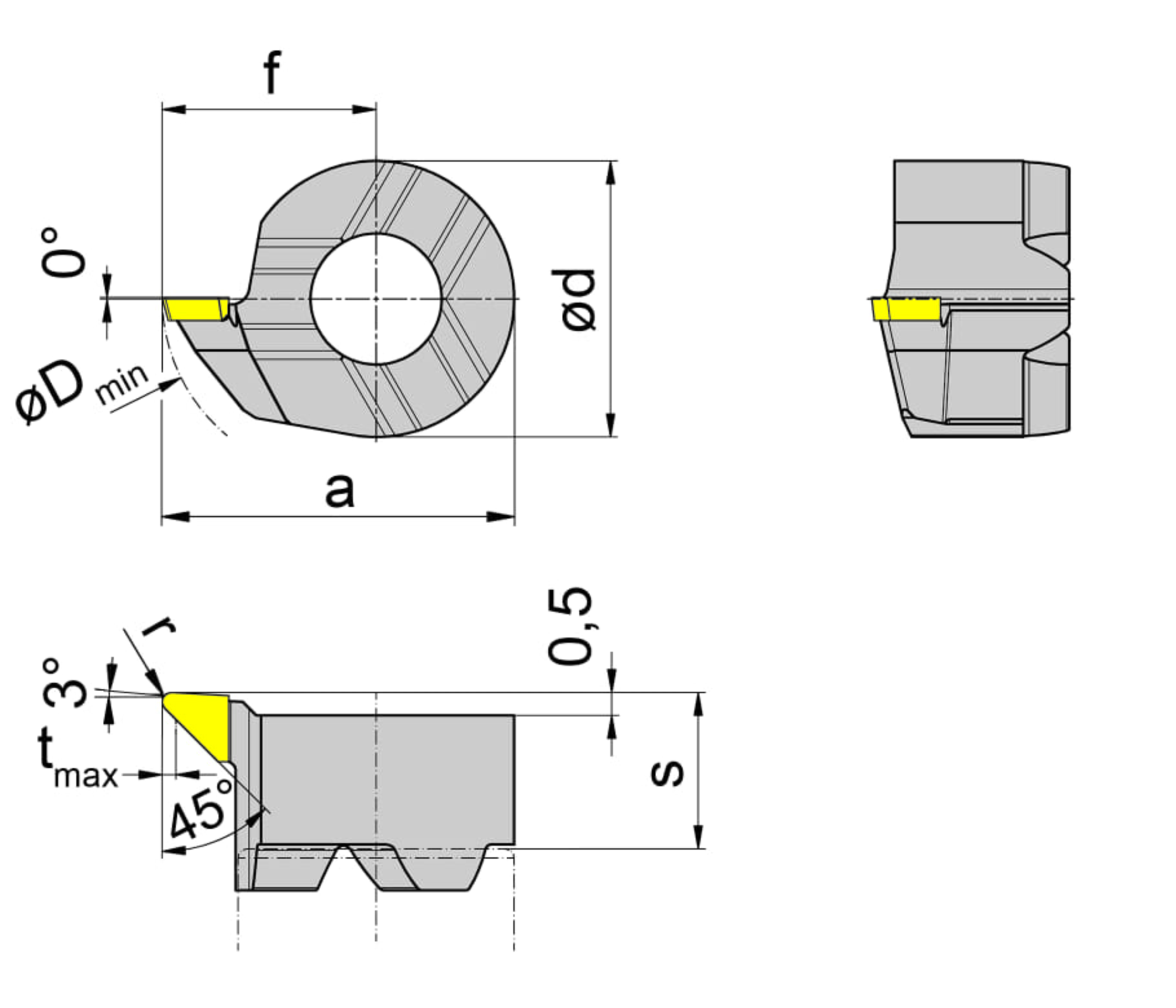

Smallest bore diameter (Dmin)
7.8
mm
Cutting insert height, Cutting insert thickness (s)
3.4
mm
Tooth diameter, head diameter (d)
6
mm
Setting range radial (f)
4.65
mm
Katalog_SSC
108060R
DIN_SSC
HORN-10806084R
ISO_SSC
HORN108060$84R$$$$$
Maximum depth of groove (tmax)
0.9
mm
Head size (a)
7.65
mm
Top radius (r)
0.8
mm
| Downloads | |
|---|---|
| R108MDM008.DXF | Download |
| R108MDM008_20230113_222830573.STP | Download |
| Download all files | |
