R109.0100.5.7 TH35
insert
Part number R109010057TH35

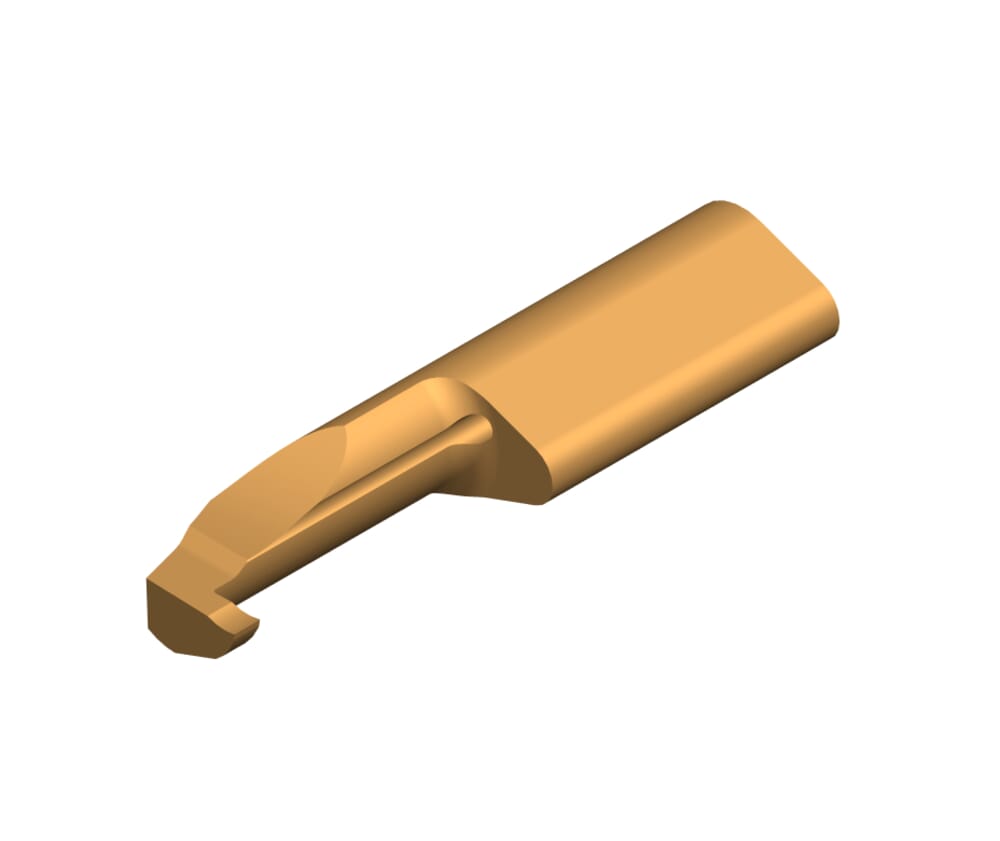

HORN insert R109.0100.5.7 TH35 for Turning
Please note:Technical instructions
Smallest bore diameter (Dmin)
7
mm
Total length (l5)
48
mm
Setting range radial (f)
3.8
mm
Neck diameter (d)
4
mm
Width of groove (w)
1
mm
Katalog_SSC
109140
DIN_SSC
HORN-10914095N
ISO_SSC
HORN109140$95N$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
2.5
mm
Head size (a)
6.7
mm
Neck length (l2)
30
mm
| Downloads | |
|---|---|
| R109010057_20230114_013633713.STP | Download |
| R109010057_20210628_181720515.DXF | Download |
| Download all files | |
