R109.0150.6.7 TH35
insert
Part number R109015067TH35

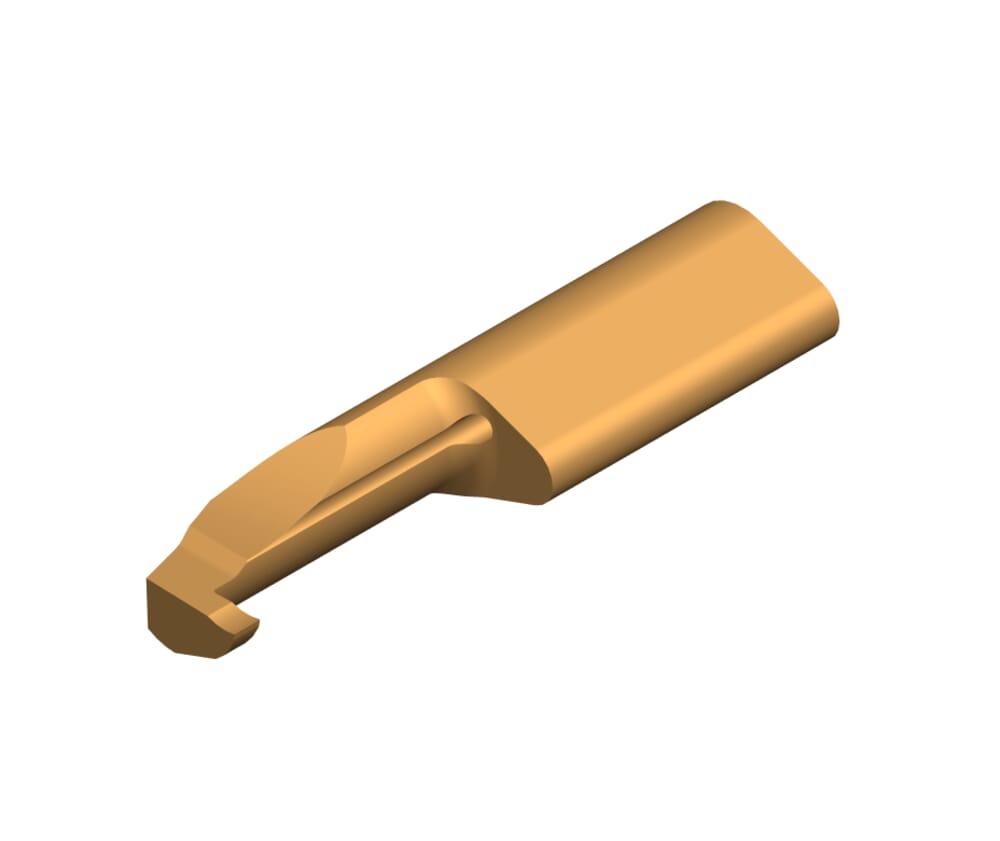

HORN insert R109.0150.6.7 TH35 for Turning
Please note:Technical instructions
Smallest bore diameter (Dmin)
7
mm
Total length (l5)
53
mm
Setting range radial (f)
3.8
mm
Neck diameter (d)
4
mm
Width of groove (w)
1.5
mm
Katalog_SSC
109140
DIN_SSC
HORN-10914095N
ISO_SSC
HORN109140$95N$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
2.5
mm
Head size (a)
6.7
mm
Neck length (l2)
35
mm
| Downloads | |
|---|---|
| R109015067_20240117_022819507.STP | Download |
| R109015067_20240205_171752566.DXF | Download |
| Download all files | |
