R109.1220.3.7 TH35
insert
Part number R109122037TH35

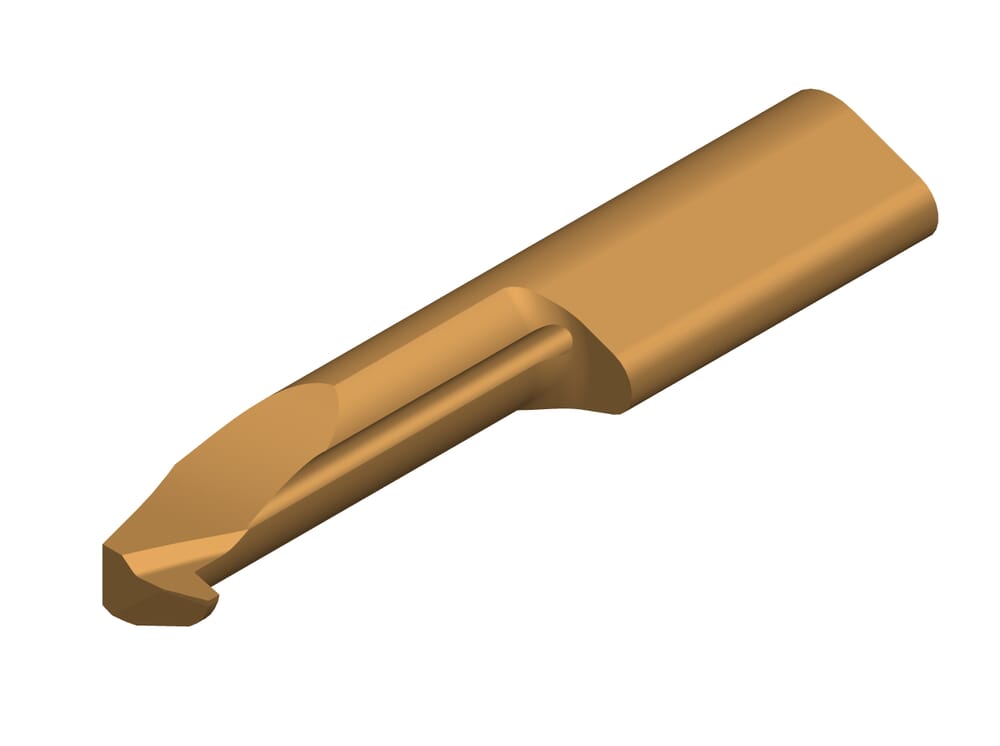

HORN insert R109.1220.3.7 TH35 for Gewinden
Please note:Technical instructions
Pitch (P)
2
mm
Smallest bore diameter (Dmin)
7
mm
Setting length (E)
0.8
mm
Cutting insert width (a)
6.7
mm
Setting range radial (f)
3.8
mm
Neck diameter (d)
4.8
mm
Katalog_SSC
109140
DIN_SSC
HORN-10914095N
ISO_SSC
HORN109140$95N$$$$$
eclass-shortcut
21-18-20-11
Cutting insert total length (l5)
38
mm
number-of-teeth
1
St.
Neck length (l2)
20
mm
