R109.1828.4.HV6 TH35
Insert
Part number R10918284HV6TH35

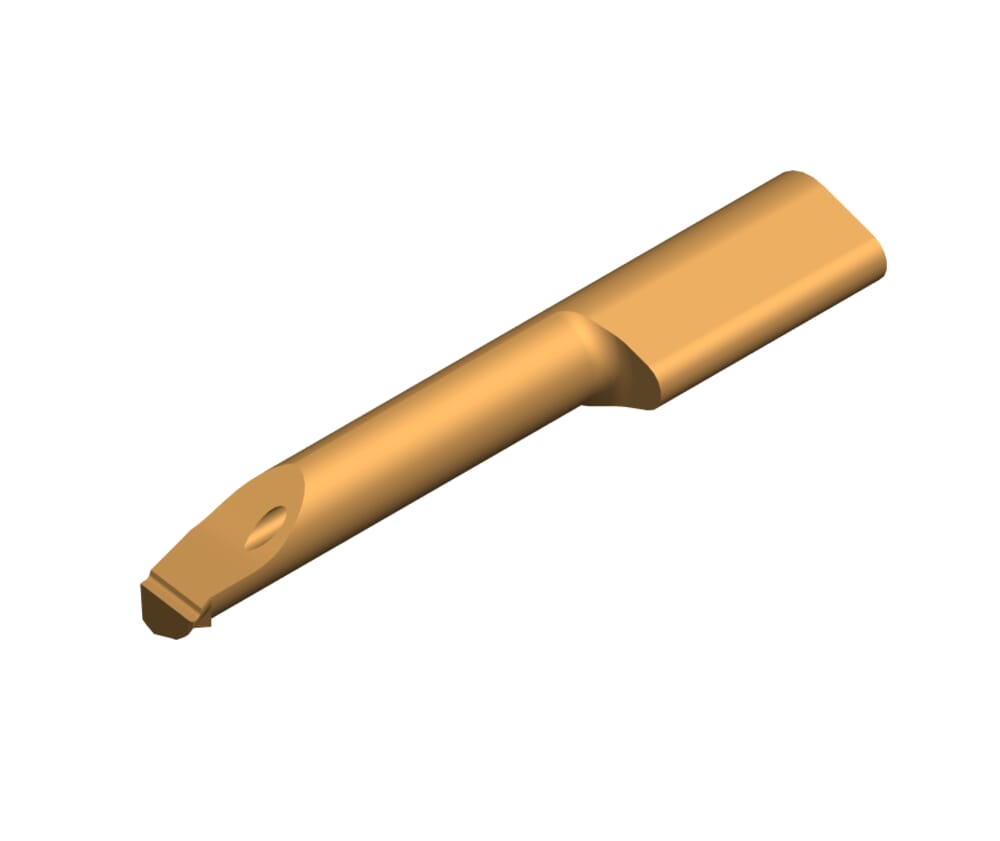

HORN Insert R109.1828.4.HV6 TH35 for Turning
Please note:Technical instructions
Katalog_SSC
109140
Smallest bore diameter (Dmin)
6
mm
Total length (l5)
43
mm
Setting range radial (f)
2.8
mm
Neck diameter (d)
5
mm
Neck length (l2)
25
mm
DIN_SSC
HORN-10914095N
ISO_SSC
HORN109140$95N$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
0.4
mm
Head size (a)
5.7
mm
Top radius (r)
0.2
mm
