R109.1828.6.6 TH35
Insert
Part number R109182866TH35

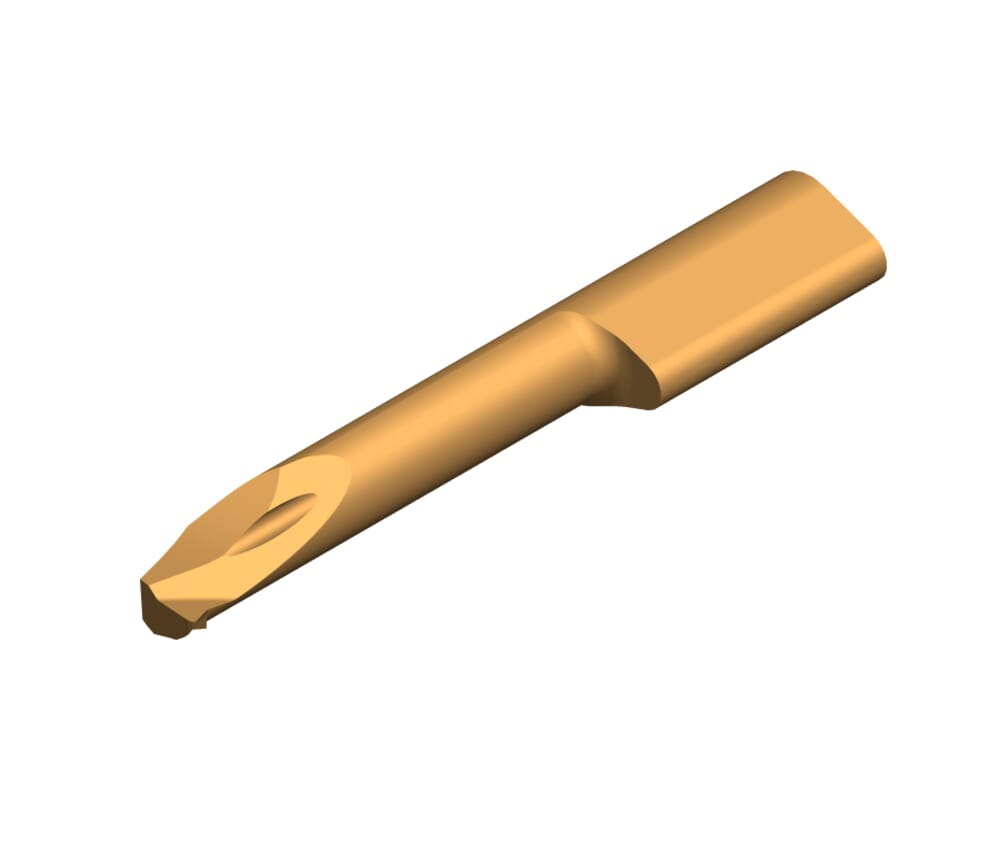

HORN Insert R109.1828.6.6 TH35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Smallest bore diameter (Dmin)
6
mm
Total length (l5)
53
mm
Setting range radial (f)
2.8
mm
Neck diameter (d)
5
mm
Katalog_SSC
109140
DIN_SSC
HORN-10914095N
ISO_SSC
HORN109140$95N$$$$$
Maximum depth of groove (tmax)
0.4
mm
Head size (a)
5.7
mm
Top radius (r)
0.2
mm
Neck length (l2)
35
mm
| Downloads | |
|---|---|
| R109182866_20230113_180519571.STP | Download |
| R109182866_20211123_232925154.DXF | Download |
| Download all files | |
