R109.1838.04.4.HV7 TH35
insert
Part number R1091838044HV7TH35

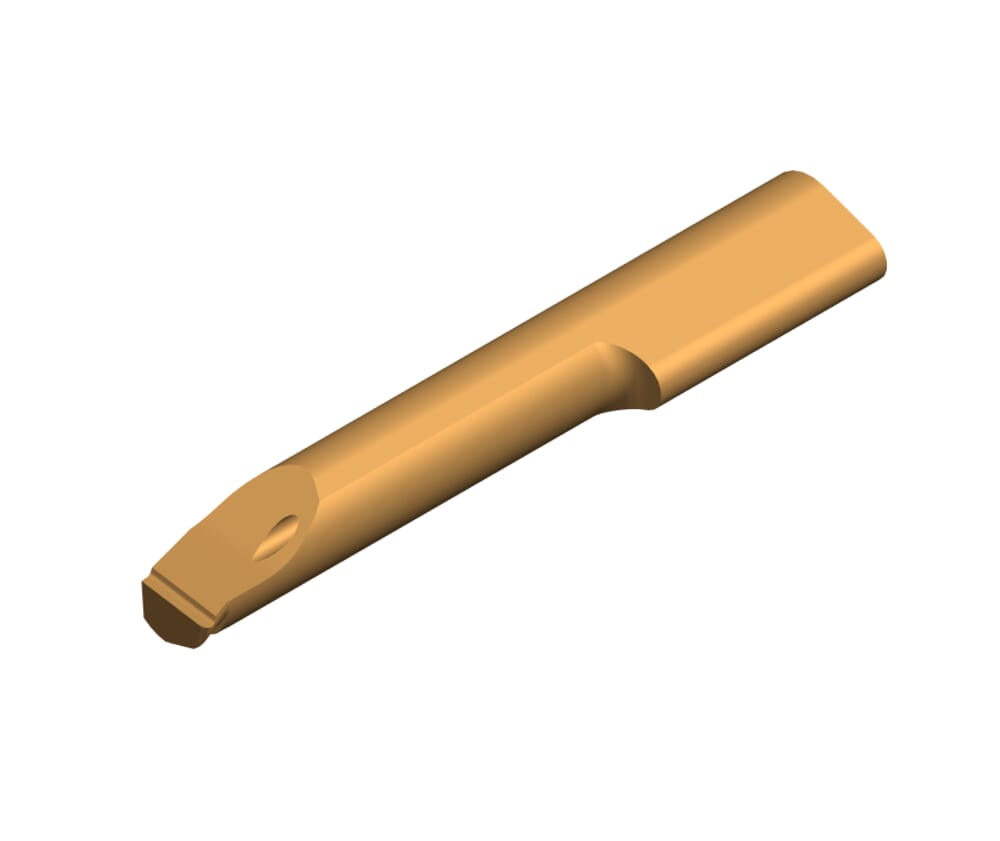

HORN insert R109.1838.04.4.HV7 TH35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Smallest bore diameter (Dmin)
7
mm
Total length (l5)
43
mm
Setting range radial (f)
3.8
mm
Neck diameter (d)
6
mm
Katalog_SSC
109140
DIN_SSC
HORN-10914095N
ISO_SSC
HORN109140$95N$$$$$
Maximum depth of groove (tmax)
0.4
mm
Head size (a)
6.7
mm
Top radius (r)
0.4
mm
Neck length (l2)
25
mm
