R10P.0300.1.02 TH35
Insert
Part number R10P0300102TH35

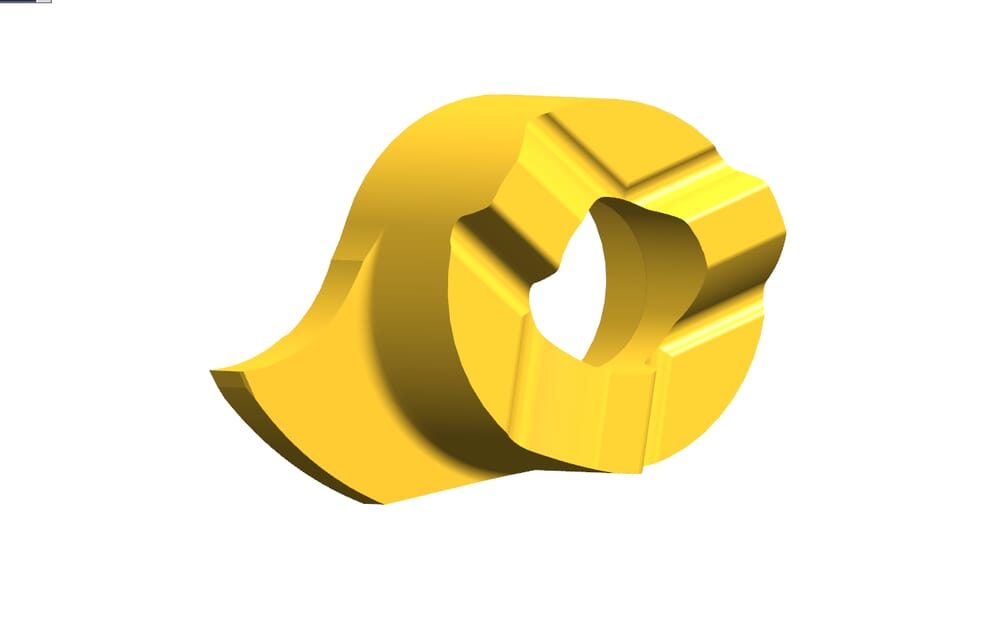

HORN Insert R10P.0300.1.02 TH35 for Turning
Please note:Technical instructions

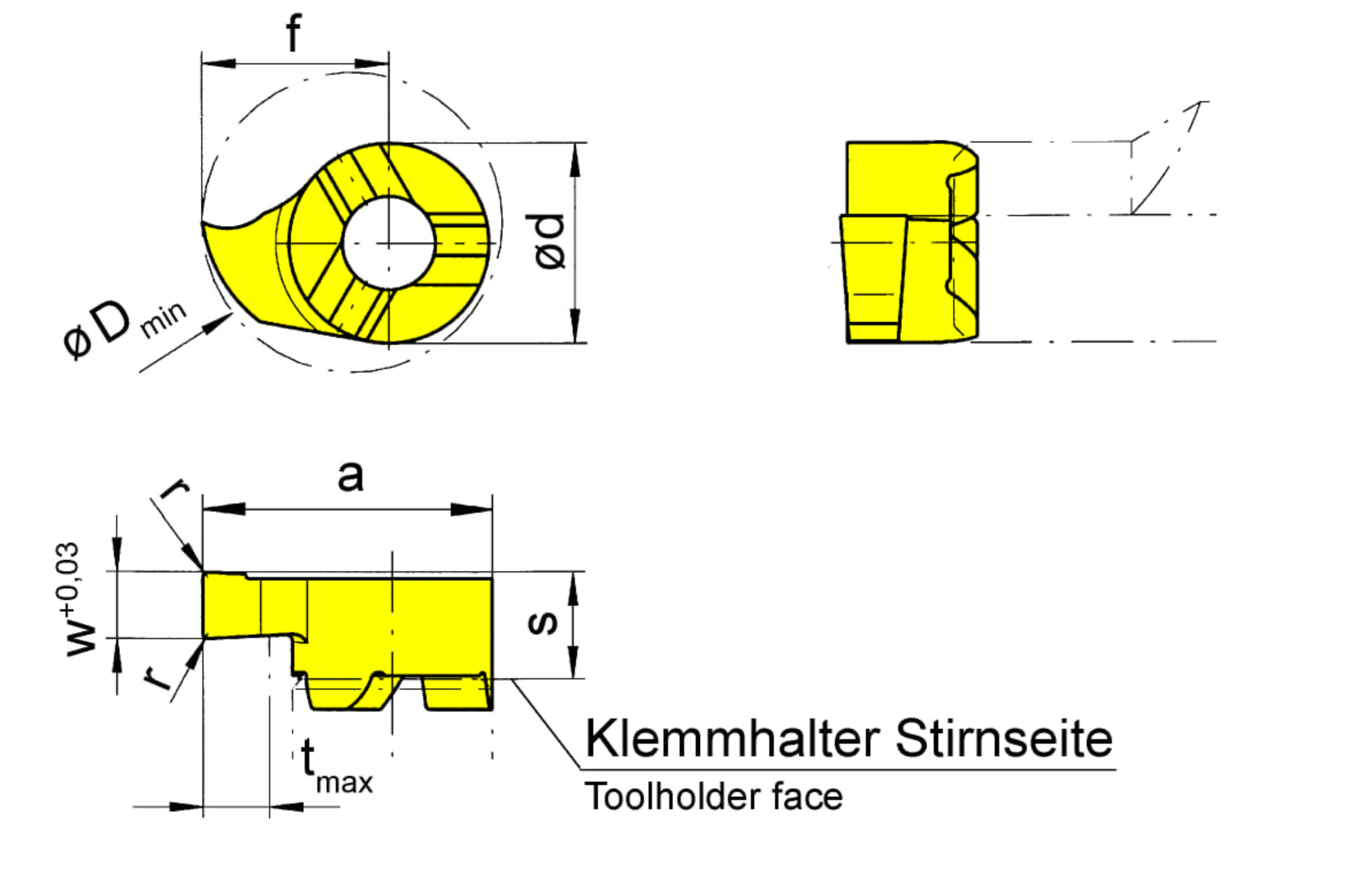

Setting range radial (f)
5.5 mm
Smallest bore diameter (Dmin)
9 mm
Cutting insert height, Cutting insert thickness (s)
3.6 mm
Corner radius (r)
0.2 mm
Tooth diameter, head diameter (d)
6 mm
Head size (a)
8.5 mm
Width of groove (w)
3 mm
Katalog_SSC
10P060R
ISO_SSC
HORN10P060$84R$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
2 mm
| Downloads | |
|---|---|
| R10P0300102_20230113_202318864.STP | Download |
| R10P0300102.DXF | Download |
| Download all files | |
